LED advertising screen displays Technical Index

LED displays Technical Index

(1) Display screen is 1/8scan

The datas transmitted by the single net line introduced from the front controlling card are 768 * 160pixel, 1024 grades gray. The rear full color HUB PANEL at the update rate of 180 Hz each can control 256 * 160pixel, at the update rate of 360 Hz, each can control 128 * 160 pixel. Certain HUB Panels can be conducted cascading . according to requirements.

(2) Display screen is 1/4 scan

When the update rate is 180 Hz, every full color HUB Panel can control 384 * 80 pixel;when update rate is 240 Hz, every panel can control 256 * 80pixel;at the update rate of 480 Hz, each can control 128 * 80pixel. Among HUB Panels can conduct cascading.

HUB PANEL cascading, can be stated as the following: every full color HUB Panel have 2 groups of RJ-45 connecting port, every group has 2 connecting ports, 1 in and 1 out, altogether 4 connecting ports. Usually, only jointing 1 group RJ-45, at this time, the cascading among HUB Panels is series connection. If joint 2 group RJ-45, cascading has two modes (1) 1 in 2 out, HUB Panels can be series connection and parallel connection, when there are many HUB Panels in the system, the mode can ensure the completeness of signal transmission; (2)2 in 2 out, this mode is 2 sets of main controlling system to control 1pc LED display screen, in the front, there are 2 ABSEN 2002 main controlling cards to individually transmit two different sets of data, full color HUB PANEL judge the priority. The corresponding display screen position of the pixel which controlLED by every cascading HUB Panel is decided by the the No. 7 & 8 digits of the numeral dialing tray which be instalLED on the Hub Panel.



What is Custom LED Display?

We could Custom LED Displays for you.

Custom LED Displays can be designed according to the need of the user and considering all above aspects so that they can be maintained easily. Of course the maintenance helps improve the life of any electronic equipment, measures are taken into consideration while production, so that the cost of maintenance reduces at a great extent.

Custom LED Display, as the name specifies, facilitate control anything with any message that you can think of. These are used by almost all industries like factory, banks, airports, universities, libraries, and many others.

Custom LED displays are mounted on the wall or hanged from any ceiling for broadcasting information that sight from any distance. Moreover the brightness of these custom LED Displays help sight from any distance very clearly.



LED video displays

 LED video displays give you the power to communicate, to motivate, and to entertain.

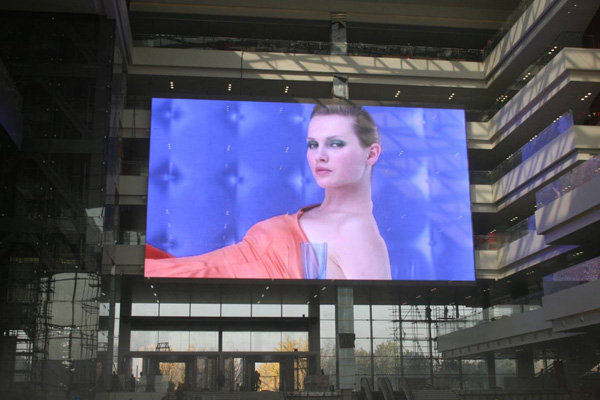

LED video displays are seen to be sited for Outdoor advertising, for events like sporting events in stadium and arena, for staging and mobile display etc.

The features of LED video display include high resolution with virtual pixel technology, advanced LED video displays have 200% more pixels than traditional LED Displays for LED video Displays. With more display pixels, you can show more details and information, or simply a better video quality.

This larger dynamic range helps Act One displays show more details on dark scenes, and smoother, more brilliant colors for all videos and pictures.

LED video displays are modularly designed so that they can be easily maintained. They can be configured into customized sizes and width/height ratios with the combination of modules. The modular design also makes LED video displays easy to setup and dismantle, and therefore perfect for staging applications.
