Super Flux(piranha) outdoor LED display RGB DIP 3-in-1
Super Flux(piranha) outdoor LED  display

Super Flux(piranha) LED lamps integrate the vantages of SMD LED lamps’ wide viewing angle and DIP LED lamps’  good elimination of heat and high brightness ,  It is a brave and brilliant innovation to use Super Flux(piranha) LED in outdoor LED display screen , which brings  abundant benefit to users worldwide .


Super Flux LED display advantages.

Superflux or High flux LEDs (Piranha LEDs) are rectangular packages of LEDs with 4 pins.

Generally Super flux LED has three types of size, 3mm. 5mm and falt top with full colors

available.It is more and more used in full color LED display screen applications .

The following 4 major advantages make SuperFlux LEDs such popular.

1.Super flux LEDs provide maximum flux on PCB.

SuperFlux is able to emit the maximum lightness with the less power cost than other

transitional LEDs. This feature enables LED manufacturer use less number of LEDs

to attain the brightness required and lower whole product cost.

Super Flux is the definitely choice of LEDs when designing on PCB.


2.Super flux LEDs have good resistance against moving.

The design of 4 pins fix the SuperFlux solidly, even in the rigorous situation such as

vibration or collision,it will not be damaged or separated from the PCB .While the two

pins LEDs apparently are easier to crack when suffers from such vibration or collision.

 Super flux Leds have the best stability among all the environment.

3. Lowest thermal resistance.

Thanks to large lead frame design,Super Flux has the lowest thermal resistance comparing

with other through- hole LEDs .When working at the same power,the temperature rise at

the LED junction is only half of that at other traditional LEDs. That being said, Super Flux

is able to be working under a relatively wide range of temperature at high input power.

With this advantage, superfulx is very suitable to be used in high performance applications

where low thermal resistance is a must.

4. Broad selection of viewing angles to suit various applications

SuperFlux LEDs offer wide choice of viewing angles categories which includes 120 degree,etc,wide viewing agnle is very important,as a result SuperFlux is the best choice.


RGB DIP 3-in-1 Super Flux(piranha) LED lamps

Custom-built  Super Flux  LED display screen  , service is  available:

P8mm outdoor  Super Flux LED module size : L288mm× H288mm
P10mm  outdoor Super Flux LED module size : L240mm× H240mm  or  L160mm× H160mm
P12mm   outdoor Super Flux LED module size: L192mm× H192mm
P16mm  outdoor Super Flux LED module size: L256mm× H128mm
Front side of  outdoor P10mm Super Flux(piranha) LED Module

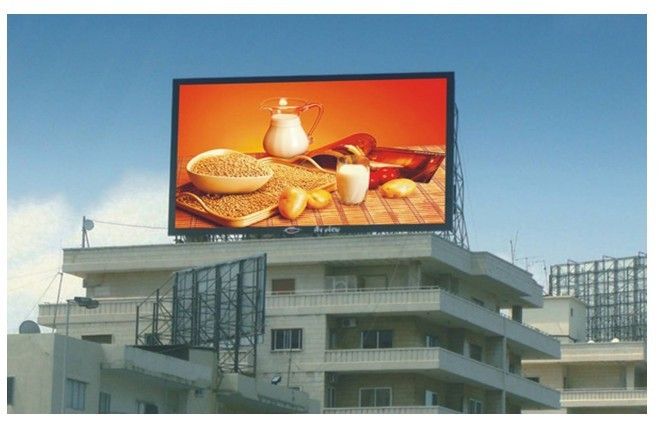

P10mm   outdoor  Super Flux(piranha) LED display
