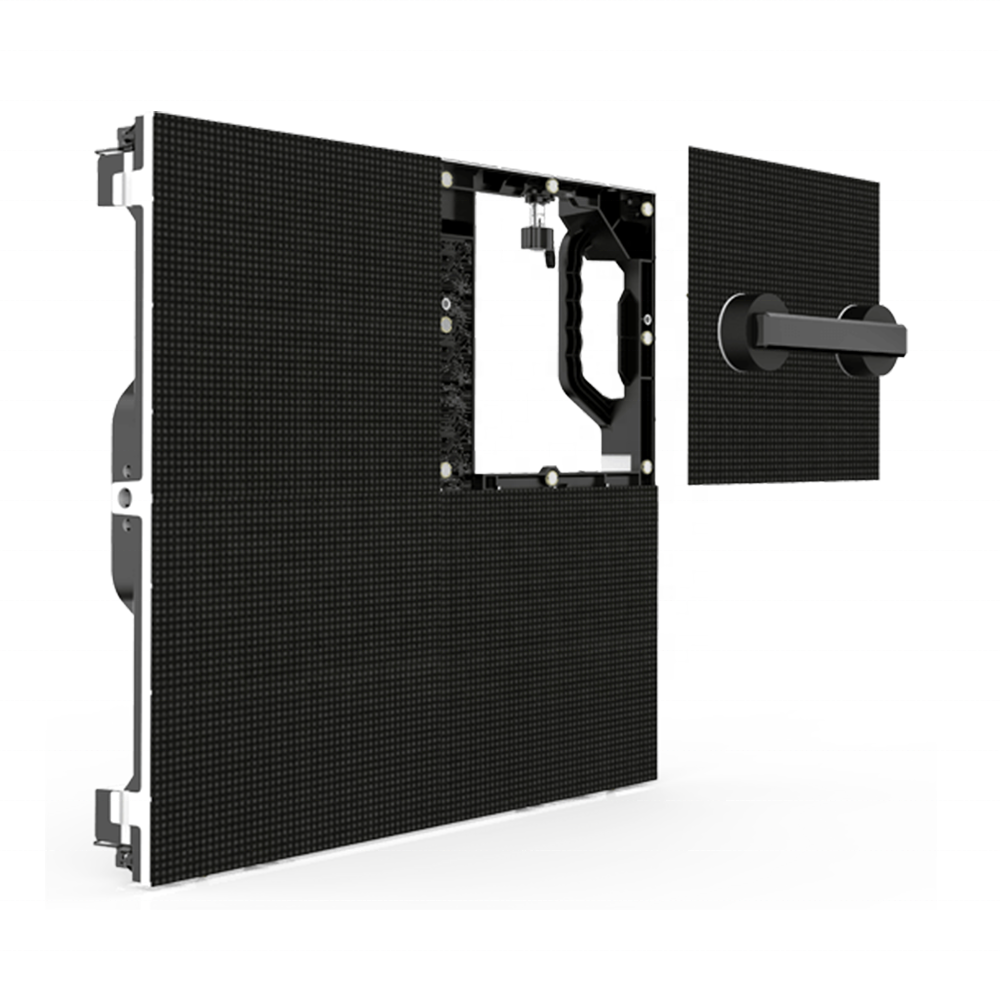

1. High-strength and precision die-cast aluminum cabinet, seamless installation.
2. Ultra light and ultra thin, it is more convenient transport and save shipping cost.
3. Unique design, easy to assembly and disassembly.

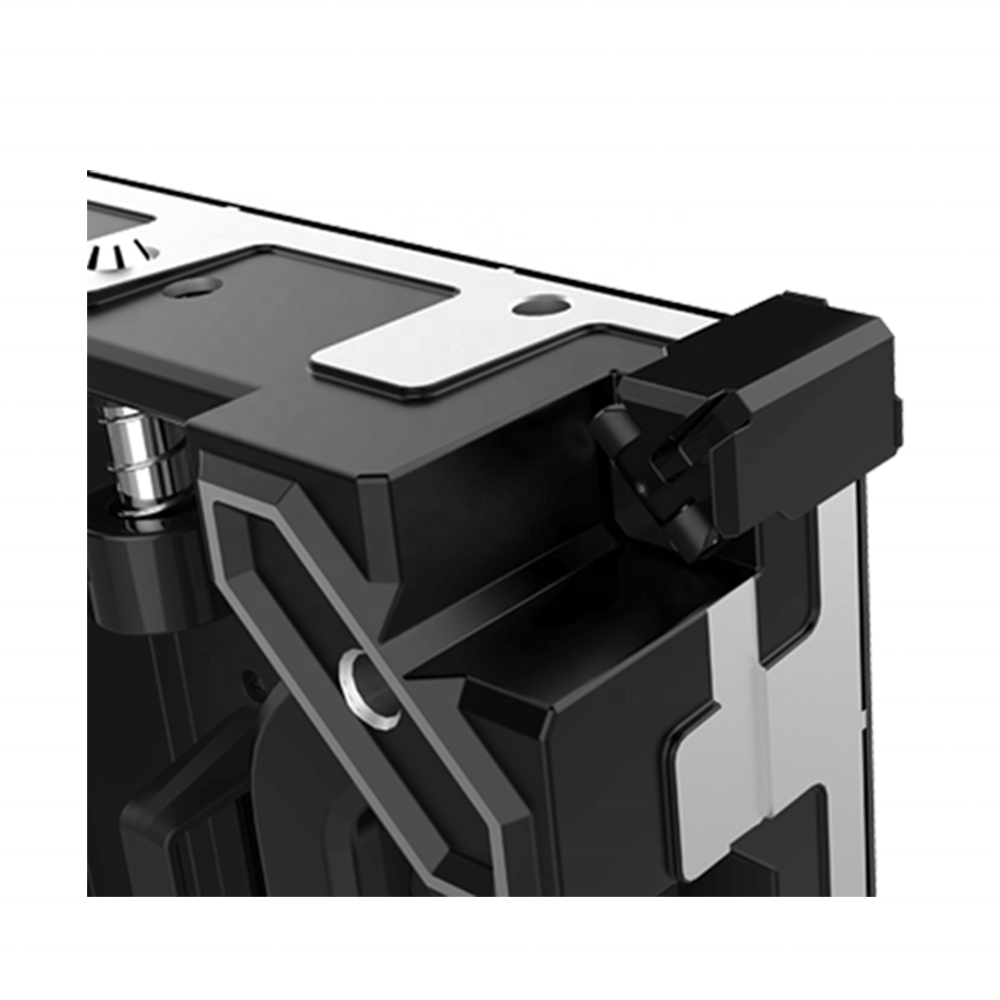

4. Two side quick lock, which makes screen a better flatness and stable.
5. Adopted pure black leds, high contrast ratio, pictures more clear and vivid.
6. High refresh rate, >=3840HZ. No flicker.
Item | Parameter | |
Module specifications | Mode | p2.604 |
Module size | 250*250 | |
Module pixel | 96*96 | |
scan | 1/32 | |
Pixel configuration | 1R1G1B | |
LEDs | SMD1515 | |
Max power consumption (W/piece) | 40W | |
Mask | have | |
Main Specifications | Cabinet size | 500*500 |
Cabinet pixel | 192*192 | |
Density (dot/m2) | 147456 | |
Brightness(cd/m2) | 500-1000 | |
Max power consumption (W/piece) | 160W | |
Avg power consumption (W/piece) | 50W | |
Cabinet weight(KG) | 6KG | |
Cabinet material | Die-cast magnesium aluminum box | |
IP grade | IP45 | |
Gray level | 16 bit | |
Fresh rate | 3840HZ | |
Best viewing distance | 2.6M | |
Power(V) | AC110-220V | |
Working temperature | -20℃-50℃ |
