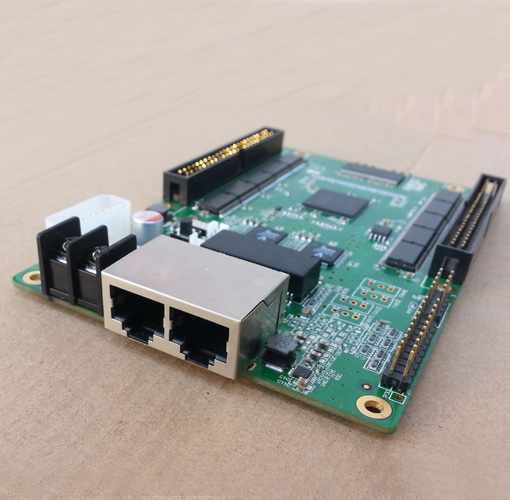

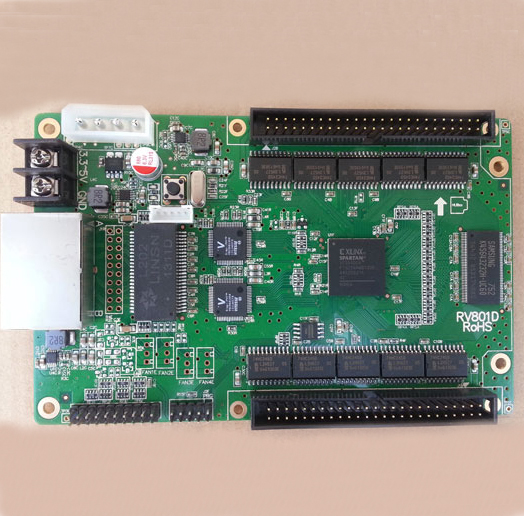

Linsn RV801D LED Receiving Card For Fullcolor LED Display
Receiving signals from led sending card, then fed to the LED Display,It is the most popular led receiver work with SD801D LED card for Indoor and Outdoor LED Display Screen.
Highlights:
&. 5-16V, 2A
&. RV801 works with all sending cards(TS801, DS801, TS802, DS802).
&. One RV801 can max support 256 pixels height.
&. The max width one RV801 can support is depended on the setting of refresh rate, gray scale, and the scan clock of LED Panel Driver.
&. RV801 has 16 groups of RGB signal.
&. By using a Hub, RV801 feds the right signals to LED Display Module.
1. Completely Compatible with the Seventh Generation Control System
The eighth generation is developed based on the seventh. Compared with the seventh, the eighth has all the
functions of the seventh. Moreover, the eighth is more functional, more powerful, more stable and more reliable.
2. The intelligent connecting function
Without resetting the configurations, the receiving cards (including spare ones) of the same LED display/cabinet
can be randomly exchanged or replaced, for they will automatically recognize the showing area and co
3. Background Image Showing
If the power of the sending card is not turned on, the led display will load the preset background image automatically.
One receiving card max supports 512*224 pixels (width and height can be changed within that pixel amount), and
all receiving cards can form a whole big image in the led display. The color number is 16K.
4. Supporting more scan mode
The seventh supports 1, 2, 4, 8, 16 scan mode, the eighth supports 1, 2, 3, 4, 5, 6, 7, 8, 9. 10, 11, 12, 13, 14, 15, 16
scan mode.
5. Supporting more modules
The seventh supports modules with the width: 2pixels, 4 pixels, 8 pixels, 16 pixels, 32 pixels, 64 pixels.
The eighth supports all the modules with width within 64 pixels. That is from 1 pixel to 64 pixels.
6. Supporting cut-up function
Each receiving card max supports 1024 pieces cutup, for non-conventional type display or text display use.
7. supporting empty pixel insert
The eighth can be set to insert one or more empty pixels every X pixels. This function is applying in non conversational
type display.
8. Supporting PWM driver chip
Need to use particular driver chip
Make the display effect going perfect
9. Supporting hardware pixel by pixel correction
Need to use particular driver chip. By changing the current for the LED, adjust the color, wave and brightness of the LED.
Make the effect of display pixel by pixel correction better.
