Features:
1..Double backup of the signal, and the flow-down backup is involved, Avoid the problems caused by network failure and Power Failure
2.Cabinet print position diameter can be reach at 6 cm, it is powerful for print client logo.

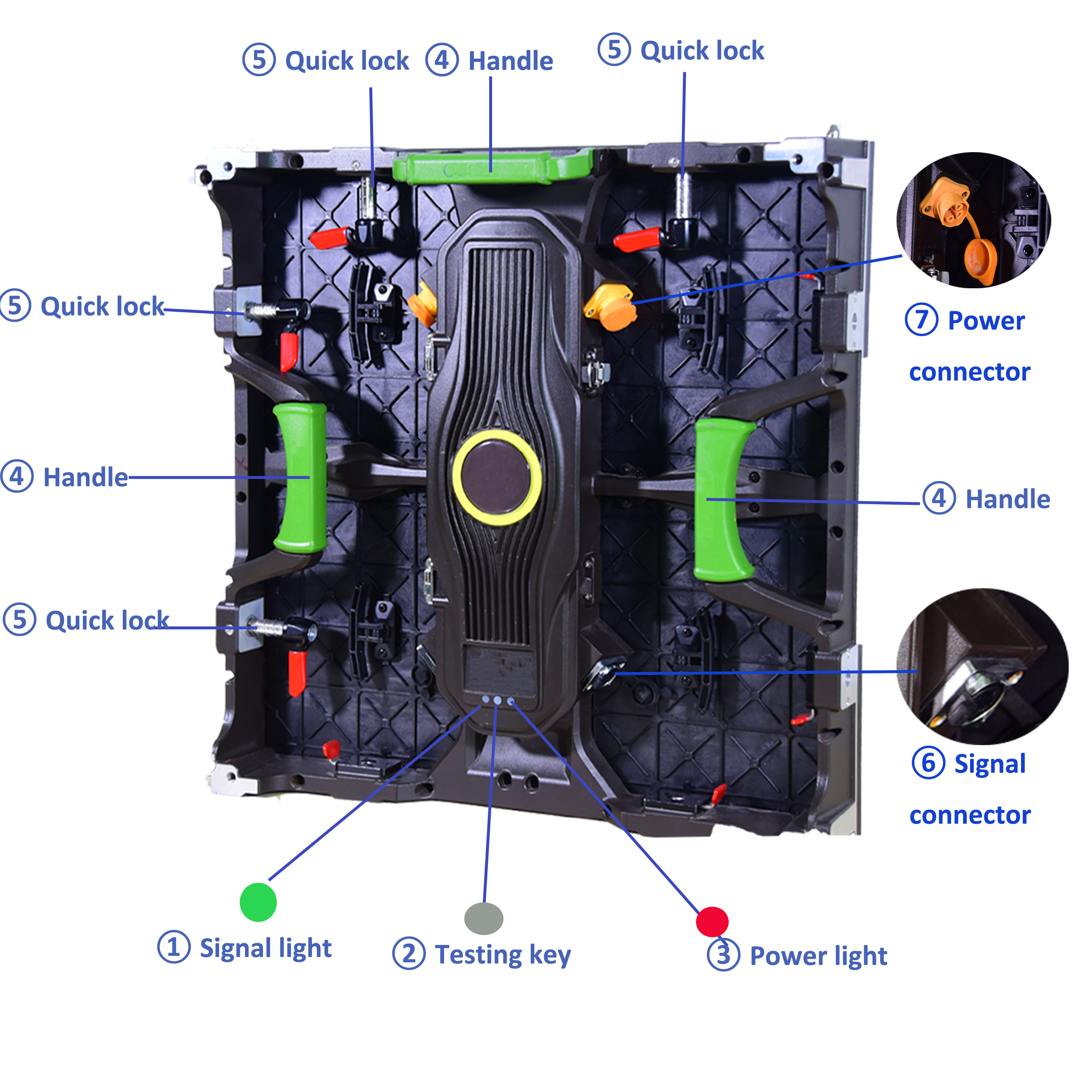

3.Two sets of quick locks on the left and right sides of the box to enhance the stability of the screen body
4.Axs Series card with 32 sets of data, standard (ic2038s) Refresh up to 4880.
5.Blind plug-in Constant Current plug-in 250 W power supply for charged operation
6.Full View mask, 0-180 degrees View angle

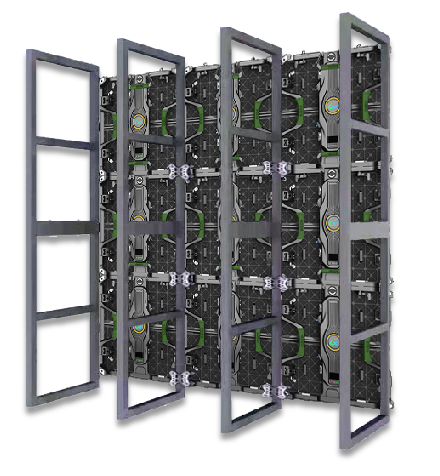

7.Cabinet thickness added stability, build long ultra-high screen body when screen body bottom stress
area enlargement
8.Card Slot receiving card to instead of the needle, no longer feel trouble for the pin plug-in

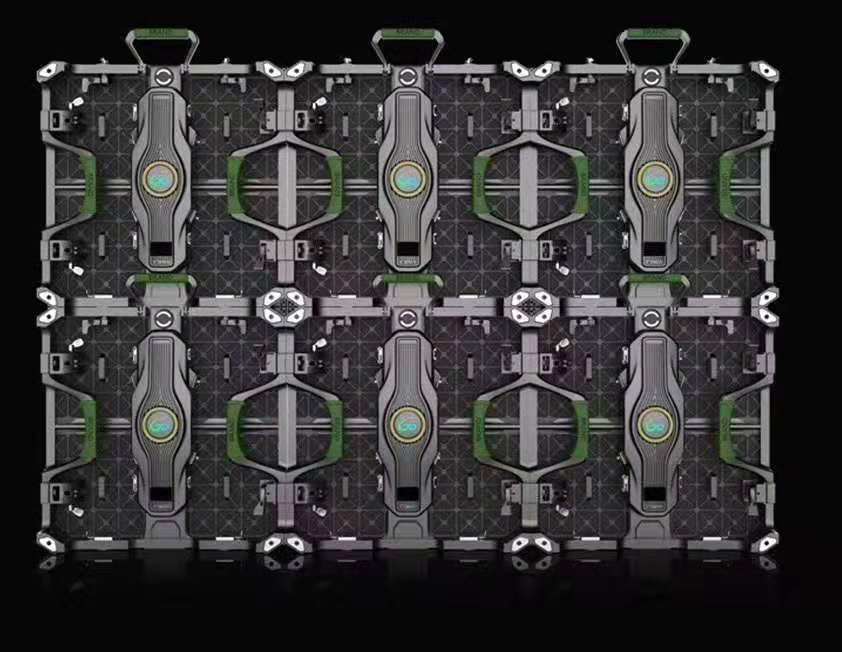

9.A cabinet 4 pairs of quick locks, compared to the previous 3 pairs of locks, locked up more tightly,

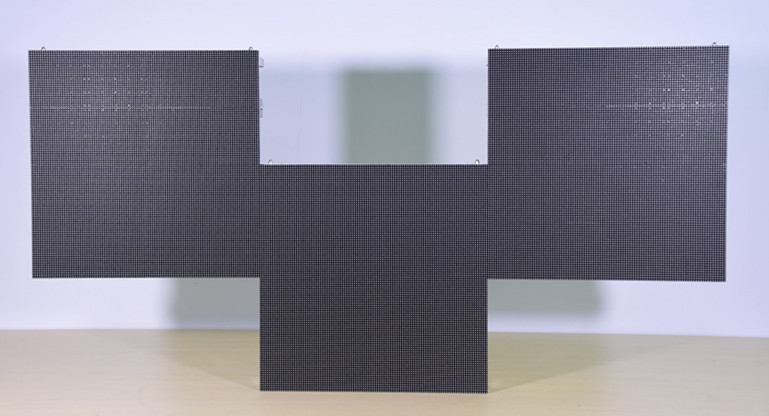

make real seamless connections Mechanical express lock, single hand operation
10. Two years warranty.
Module detail:
|
Item
|
Description |
  |
|
Module size
|
250*250mm |
|
|
Module dots
|
64*64 |
|
|
Pixel pitch
|
3.91mm |

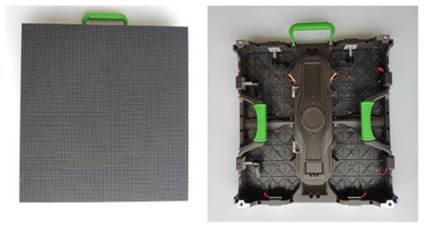

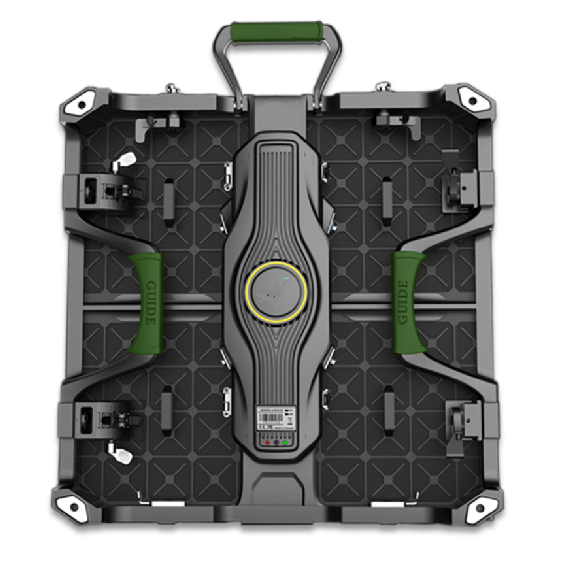

Cabinet detail:
|
Item
|
Description |
|
|
Cabinet size
|
500*500mm |
|
|
Cabinet dots
|
128*128 |
|
|
Cabinet material
|
Die-casting aluminum |
|
|
Cabinet weight
|
8kg |
|
Colour grayscale (bit) |
32bit |
|
Gray scale per colour (level) |
4096-65535 |
|
Refresh rate (hz) |
3840 |
|
Driving type |
1/17 |
|
Signal transmission distance (m) |
cats cable:<100m single mode fiber:<10km |
|
Brightness (nit) |
>1200 |
|
Optimal horizontal viewing angle (degree) |
180 |
|
Optimal vertical viewing angle (degree |
180 |
|
Ac input voltage (v) |
Ac90-240V |
|
Ac input frequency (hz) |
50/60 |
|
Ac input power maximum value (w/sqm) |
800 |
|
Ac input power typical value (w/sqm) |
200 |
|
Storage temperature (℃) |
-25-65 |
|
Work temperature (℃) |
-20-50 |
|
IP rating (front/rear) |
IP65 |

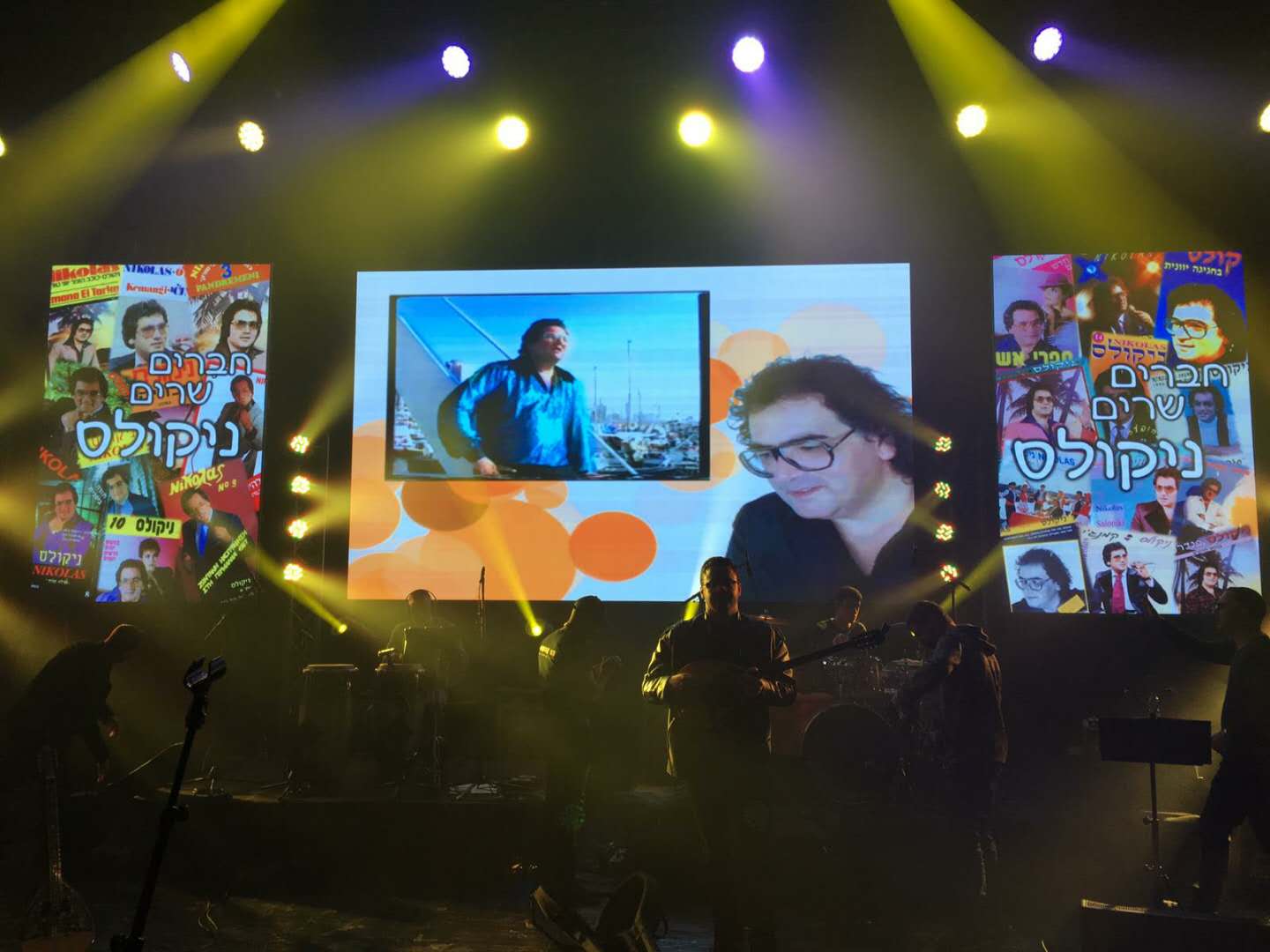

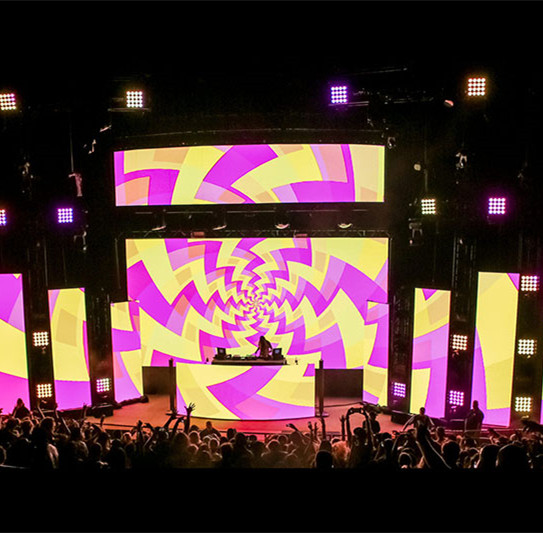

Rental led screen is widely used in advertising leasing, video conference, product release,stage background, wedding celebration and so on , it use die-casting aluminum, hoisting, stowage,back frame fixed installation requirements. ,it has high refresh and gray-scale ,high contrast ,high quality fine picture..
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.

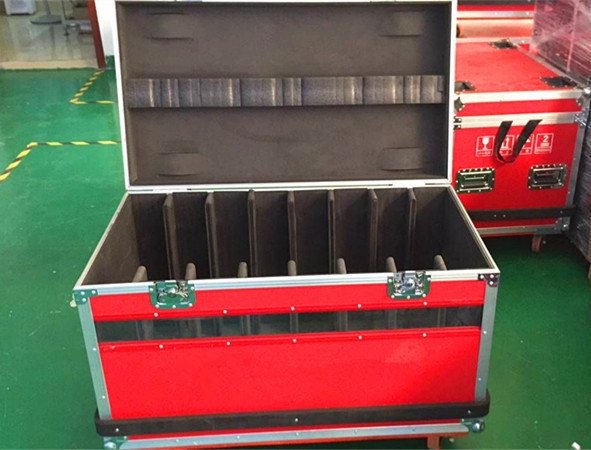

5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
|
Colour grayscale (bit) |
32bit |
|
Gray scale per colour (level) |
4096-65535 |
|
Refresh rate (hz) |
3840 |
|
Driving type |
1/17 |
|
Signal transmission distance (m) |
cats cable:<100m single mode fiber:<10km |
|
Brightness (nit) |
>1200 |
|
Optimal horizontal viewing angle (degree) |
180 |
|
Optimal vertical viewing angle (degree |
180 |
|
Ac input voltage (v) |
Ac90-240V |
|
Ac input frequency (hz) |
50/60 |
|
Ac input power maximum value (w/sqm) |
800 |
|
Ac input power typical value (w/sqm) |
200 |
|
Storage temperature (℃) |
-25-65 |
|
Work temperature (℃) |
-20-50 |
|
IP rating (front/rear) |
IP65 |
