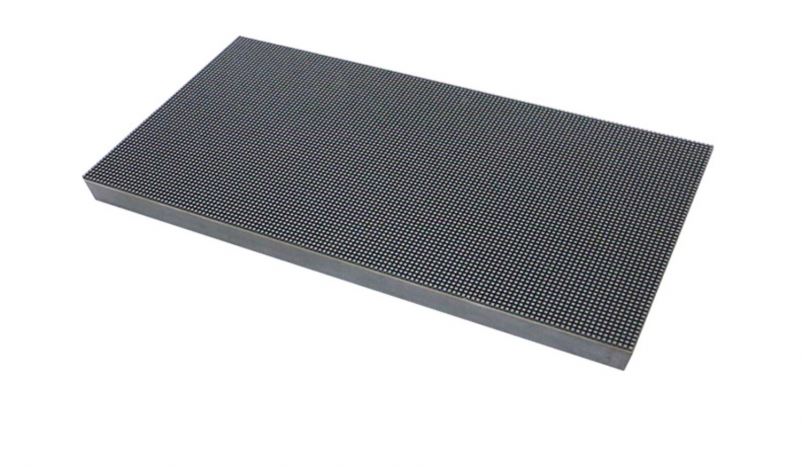

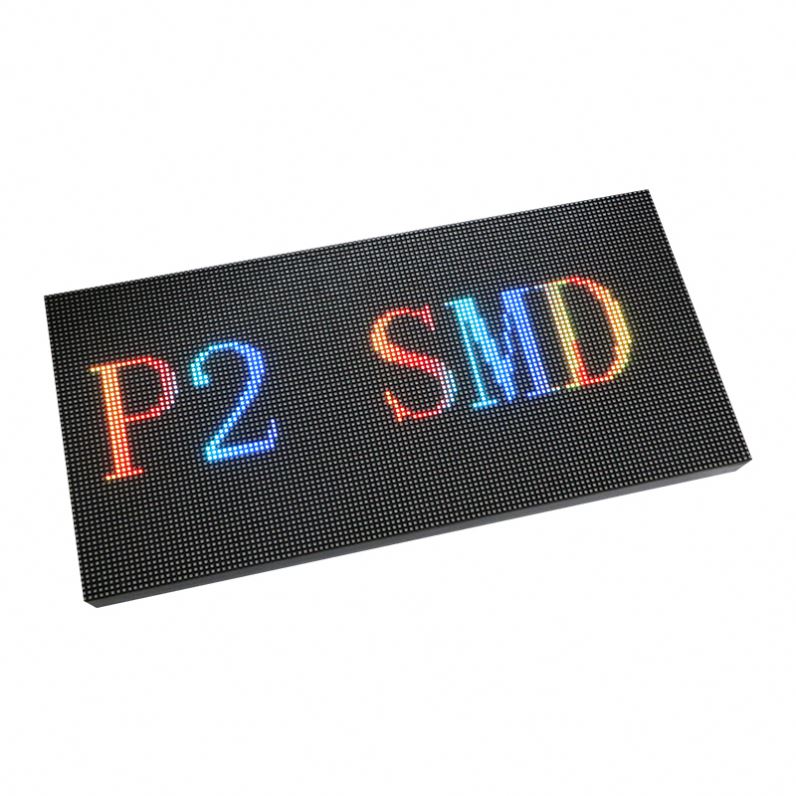

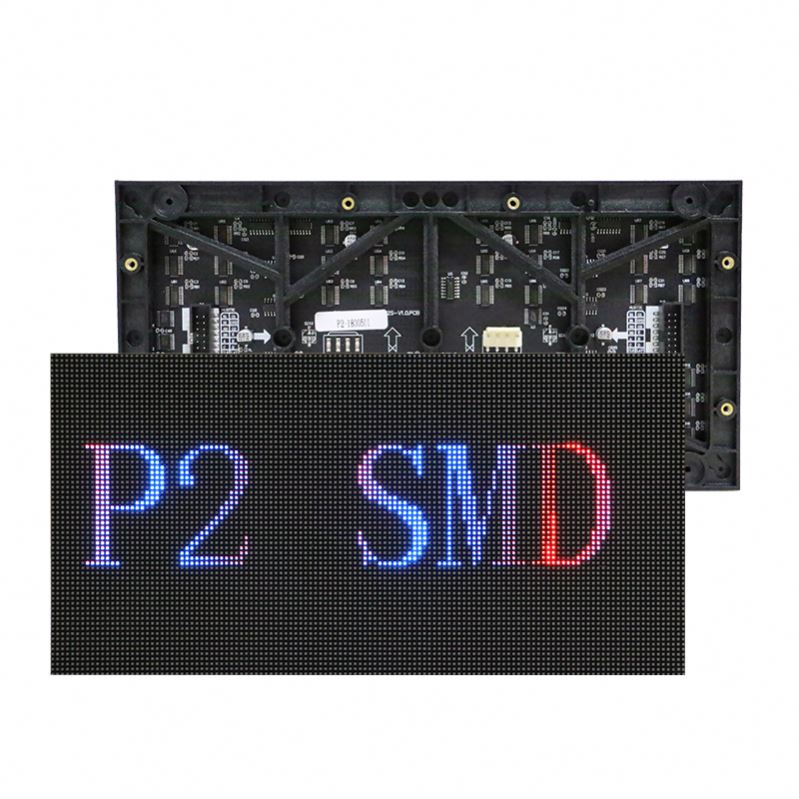

P2 Digital Rgb Full Color Indoor Advertisement Board Led Panel Led Display Screen
1. High and adjustable led brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3. Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for led display panels screenss to increase the resolution up to four times of real pixel, making the images softer and vivider.
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy.
Pixel pitch |
2mm |
|

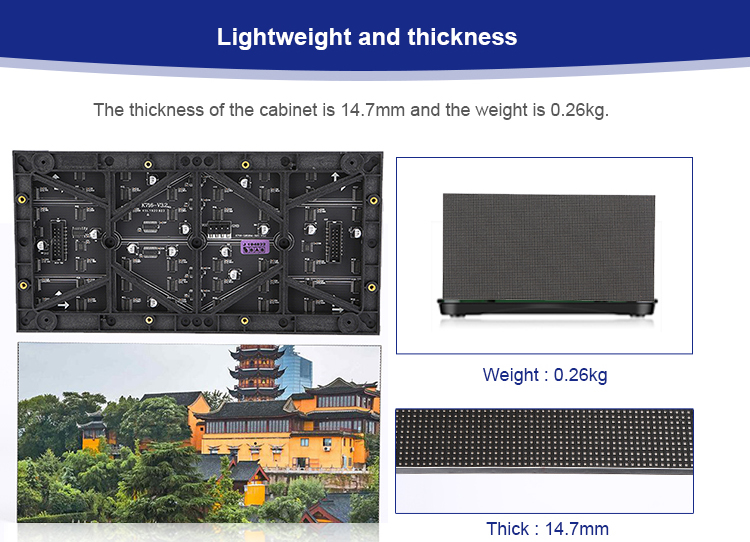

Module size |
256*128mm |
|
Resolution of module |
128x64dots |
|
Density of pixel |
250000dots/m2 |
|
LED Size |
SMD1515 |
|
Pixel configuration |
1R1G1B |
|
Best viewing distance |
≥2m |
|
Horizontal viewing angle |
140º |
|
Viewing angle |
140º |
|
Driving method |
1/32 scan |
|
Brightness |
≥1000cd/m2 |
|
Refresh rate |
≥1920Hz(Max 3840Hz) |
|
IP grade |
IP31 |
|
Max power consumption |
800W/sqm |
|
Avg power consumption |
400W/sqm |
|
Input voltage |
AC110V/220V±10% |
|
Storage temperature |
—40°C~65°C |
|
Working temperature |
—20°C~55°C |
|
MTBF |
≥10,000 hours |
|
Life span |
≥100,000hours |
|
Control system |
Nova / Linsn / Colorlight / Huidu |
