High resolution high Brightness outdoor fixed p4 led display
1.SMD 3-in-1 LED encapsulation confirms the high brightness, high definition, seamless and flatness.
2. Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span.
3. Wide viewing distance, high definition, good uniformity.
Product Details
1.Brightness can be adjusted automatically according to different surroundings by led studio.

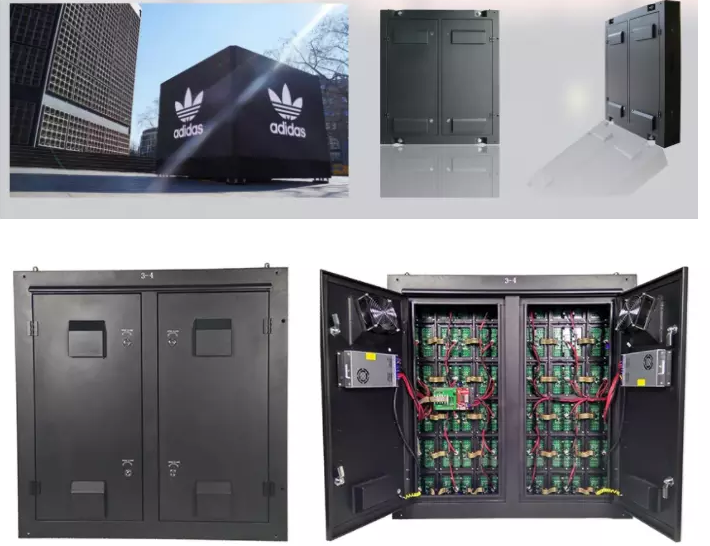

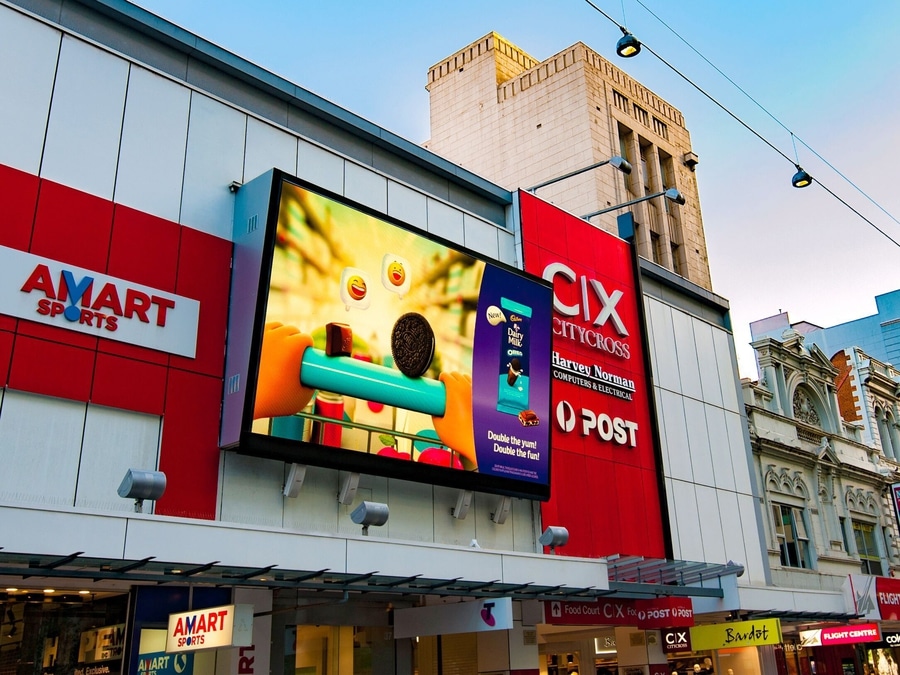

2. Can be mounted on the wall, by pole support on the street, on top of building, etc.
3. Support all types of video, graphics, animation, message, etc, support PC online or offline. control, also can remote control with linsn asynchronous system, or Wifi control, 3G control.
Items | P4 outdoor full color led screen |
Pitch size | 4mm |

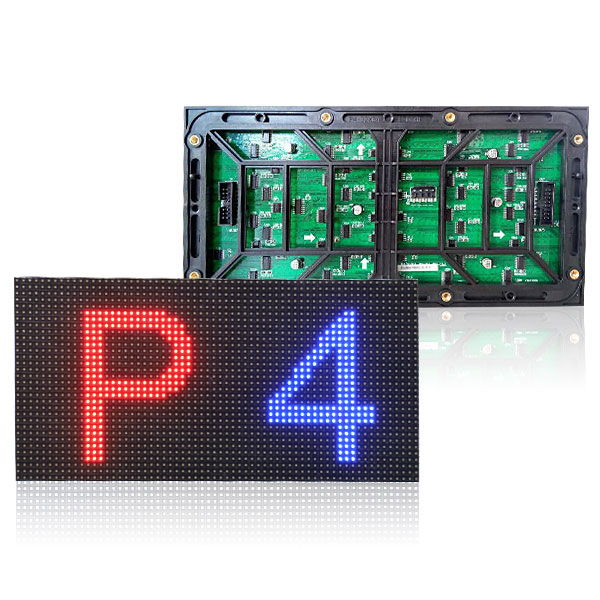

Module size | 128*256mm |
Panel pixel(dots) | 64*32 |
Pixel configuration | 1R1G1B |
Pixel density | 62500pixels/m2 |
View angle(H/V) | 120/120degree |
Brightness | 5500CD/m2 |
View distance | 4-35m |
Maximum power consumption | 900W/m2 |
Module power | 25w |
Operating temperature | -20℃~+50℃ |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
Refresh frame frequency | 1200Hz |
Input voltage | 110V-220V AC+-10% |
Operating system | windows98/Me/2000/XP |
Drive mode |
1/8 scan constant current |
Blind rate | <0.0001 |
