1. High and adjustable led brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3. Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for led display panels screenss to increase the resolution up to four times of real pixel, making the images softer and vivider.
5. LED Single-lamp maintenance with low cost.

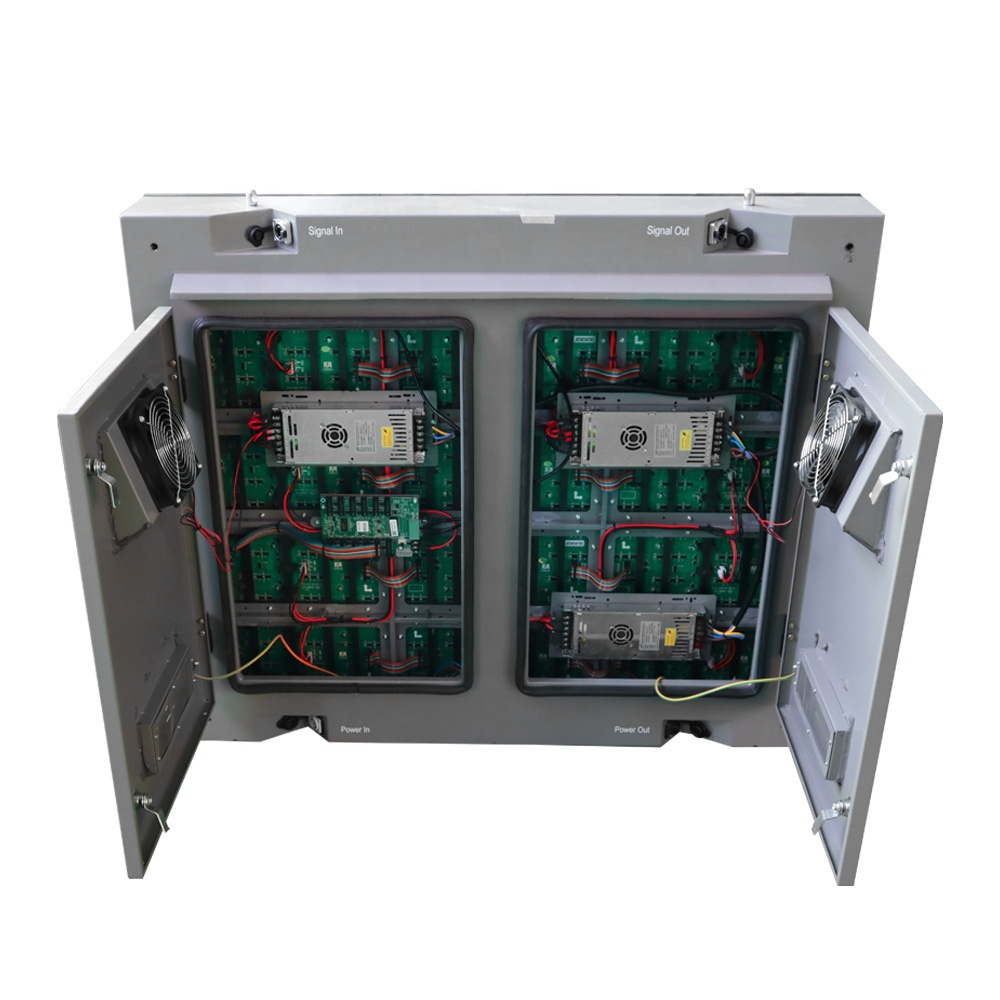

6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy.
P3 Outdoor SMD 3-in-1 full color LED display | |
Pixel pitch: | 3mm |

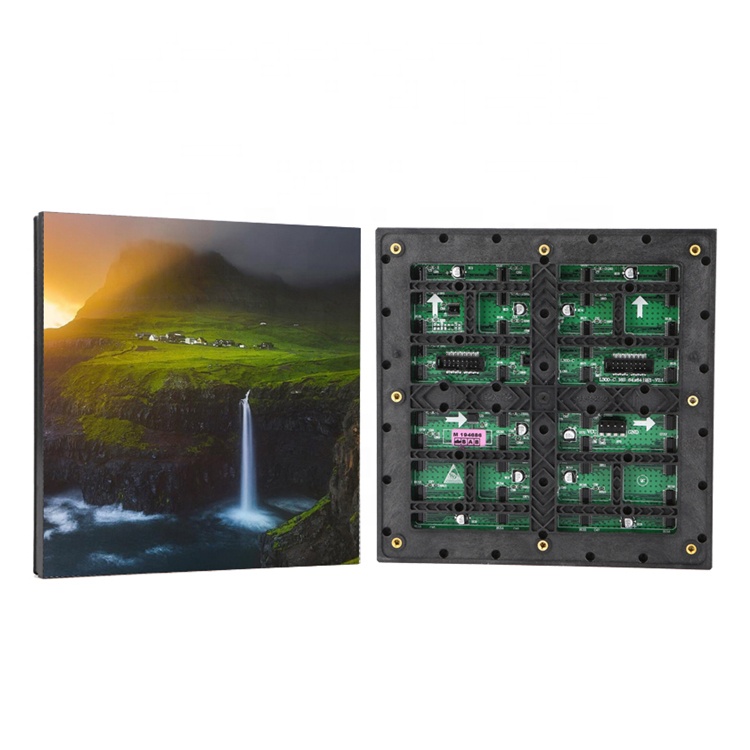

Modules size: | 192*192mm |

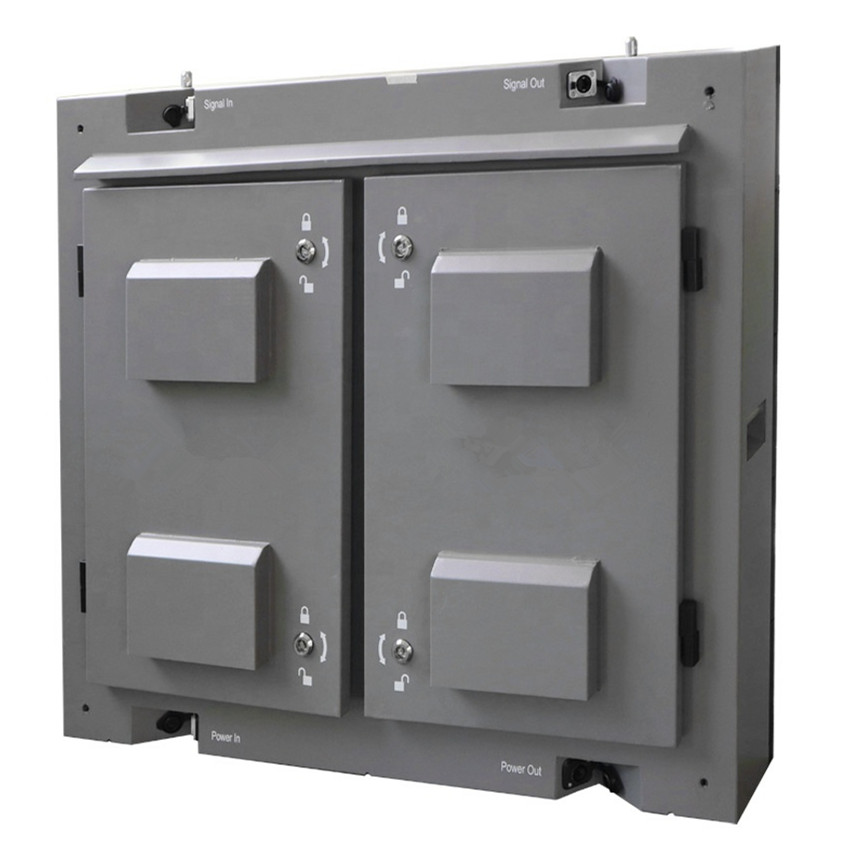

Cabinet size: | 960*960(mm) |
Pixel constitution: | 1R1G1B |
Resolution of module : | 64*64=4096DOTS |
Resolution of cabinet : | 320*320 |
LED Encapsulaton: | SMD1919 |
Main technical parameter | |
The View Distance: | 5m~100m |
Driving Method: | 8 scan |
Control mode: | Synchronous control |
Working voltage: | 220V+/-10% or 110V+/-10% |
Working environment temperature: | 0°C-40° |
Computer operating system: | WIN98,WINXP,WIN2000,etc |
Input signal: | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION |
Control system: | PCTV non -line editing card+DVI display car +main controller car +opitic fibre transmission |
Life Span: | 100000H |
Out-of-control Rat | e<0.0002H |
