P6.6 P8 P10MM Outdoor Die-casting LED Display
Outdoor Die-casting LED Display

Patented Piranha LED and SMD3535 are used for this model, which guarantee a wide viewing angle(>140°H;>140°W) and a nice flatness appearance. Brightness>5500CD/SQM.

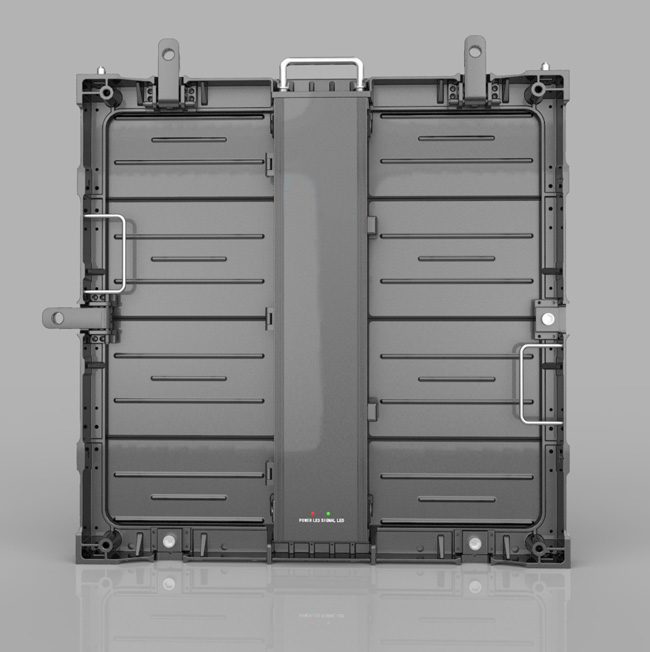

Graceful and concise appearence, <0.1mm discrepancy aluminmum die-casting moulding criterion, no deformation; light weight, slim body; with Protection grade IP65 front and IP54 rear. Suitable for all outdoor working environment.

Fast locks at the four sides of the cabinet, easy assembly; and be piled up and be hoisted.

Backside maintenance. Exterior exposed module screws, easy dismantling.

Waterproof connectors, safe and steady.

Parameters Outdoor Die-casting LED Display Series
Pixel Pitch (mm) 6.66mm 8mm 10mm 10mm
Pixel density(pix/m2) 22545 15625 10000 10000
LED Type SMD3535 SMD3535 SMD3535 DIP346
Viewing Angle X、Y140° X、Y140° X、Y140° X、Y140°
Brightness(nits) 4500 4500 5500 5500
Drive Method 1/6 1/5 1/2 1/4
Color Depth 16bit
Refresh Rate(Hz) 1000 1200 1800 1800
Module Size (mm) 320×160
Cabinet Size(mm) 640×640
Cabinet Material aluminum
Cabinet weight(kg) 13.5
Voltage 200-240V
Average.power(W/m2) 220 230 250 250
Max.power (W/m2) 650 690 750 750
IP Grade IP65/IP54
Operating temperature/humidity temperature:-20℃~ 50℃ humidity:10~90%RH
Storage temperature/ humidity temperature:-40℃~ 60℃ humidity:10~90%RH
Lifetime(h) ≥50000
Compliant Standard CCC(S&E)Rosh
