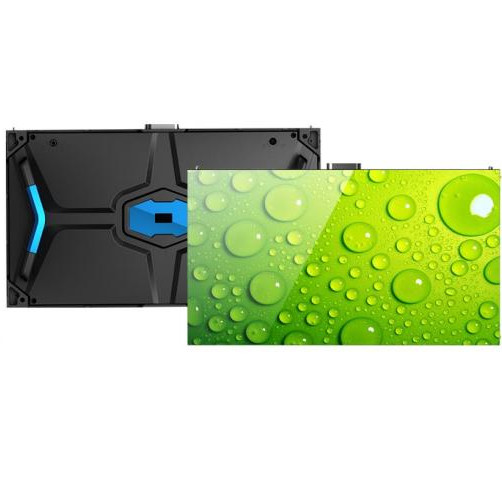

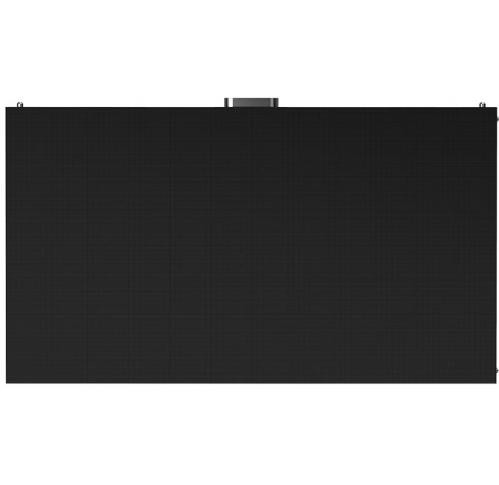

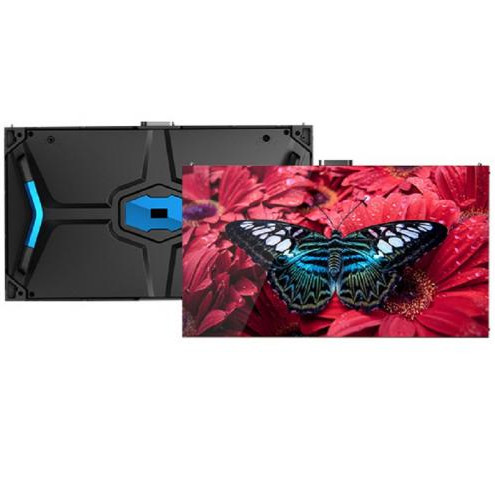

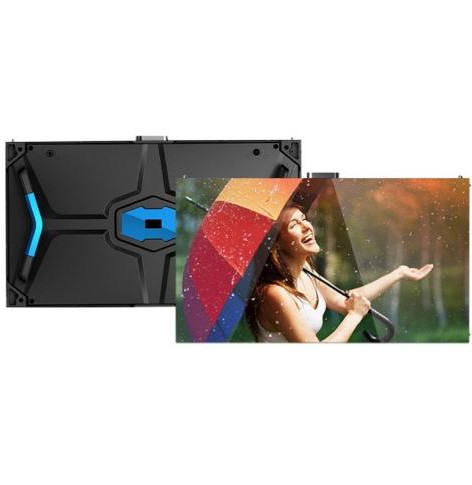

P1.56 high refresh rate indoor full color led screen panel
Refresh rate: 1920/2880/3840 Hz
Convenient Front/Rear Installation and Maintenance
The install procedure is as quick as block-building. It supports for both front and rear installation with a panel thickness of only 100mm. Additionally, module, power supply, receiving card, conversion card and cables between panels can all be maintained quickly from the front without professional skills.
Standard 16:9 panel can also precisely achieve HD/FHD/UHD/SHV resolution just right,and with a 27" diagonal panel size it can become a perfect substitute for any existing 54" or 108" LCD screen.
Product Features:
Pixel Structure |
SMD1010 |
LED Model |
P1.56 |
Pixel Density(dots/m2) |
409600 |
Module Resolution(W×H) |
128×108 |
Module Size(mm) |
200(W)×168.75(H) |
Module Maximum Power Consumption(W) |
25 |
Module of Cabinet (W×H) |
3×2 |
Cabinet Resolution(W×H) |
384×216 |
Cabinet Size(mm) |
600(W)×337.5(H)×80(D) |
Cabinet Area(m2) |
0.2025 |
Cabinet Weight(kg) |
9.9 |
Cabinet Flatness(mm) |
≤0.2 |
Maintain Style |
Pre maintenance |
Cabinet Flatness(mm) |
≤0.1mm |
Cabinet Material |
die-cast aluminum |
singel pix brightness corretion |
have |
singel pix chroma corretion |
have |
white balance brightness(nits) |
200~600 Adjustable |
Color Temperature(K) |
3200~9300 Adjustable |
viewing angle (HorizontalVerticla) |
160/160 |
