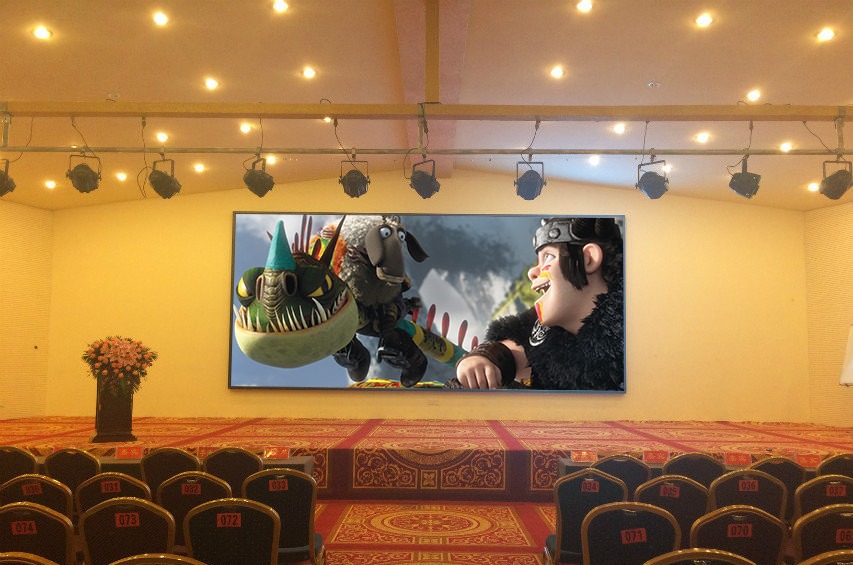

P1.56 high definition fixed led

P1.9 indoor led small spacing indoor led display

Ultra HD visual effect

Single-point color correcting technology,to achieve a true color reduction,smaller pixel pitch,the world is unfolds in your eyes.

High Contrast ratio

Real seamless

Adjustable angle lock to narrow seam between cabinets

Convenient maintenance

Front maintenance for receiving cards, HUB cards,power suppliers and modules

Double backup function of power supply and signal

4 different modules can be used on one frame: TV1.25 TV1.56 TV1.667 TV1.923

Quick installation: firstly, install the cabinets on the structure to ensure that the cabinets are installed flat, Secondly, install the modules on the cabinets to reduce collision

Maintenance method: Complete front maintenance, modules, power supplies, HUB card and receiving card

Item	Technical Specifications
Pixel Pitch	1.25mm	1.56mm	1.875mm	1.92mm
LED Configuration	SMD1010 (3-IN-1)	SMD1010 (3-IN-1)	SMD1010 (3-IN-1)	SMD1010 ( 3-IN-1)
Pixel Density	640000pixels/sqm	409600pixels/sqm	284444pixels/sqm	270421pixels/sqm
Module Size	200*150mm	200*150mm	240*240mm	200*150mm
Cabinet Szie	400mm*300mm	400mm*300mm	480mm*480mm	400mm*300mm
Cabinet Resolution	320*240pixels	256*192pixels	256*256pixels	208*156pixels
Cabinet Material	Die-casting Aluminum
Cabinet Weight	7Kg-10Kg
Brightness	1000cd/sqm	1000cd/sqm	1000cd/sqm	1000cd/sqm
Color Temperature	3500K-9500K	3500K-9500K	3500K-9500K	3500K-9500K
Viewing Angle	H:160°/V:160°
Ave Power Consumption	230W/sqm	230W/sqm	230W/sqm	230W/sqm
Max Power Consumption	800W/sqm	800W/sqm	800W/sqm	800W/sqm
