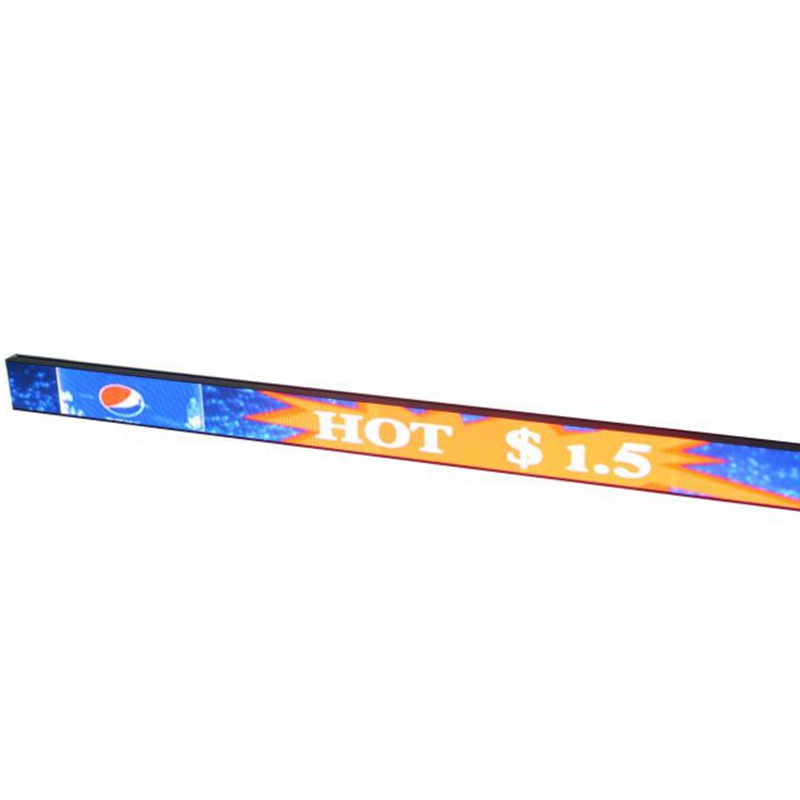

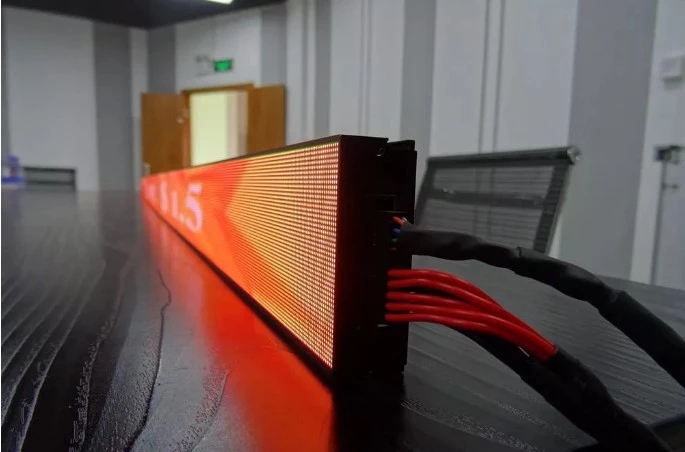

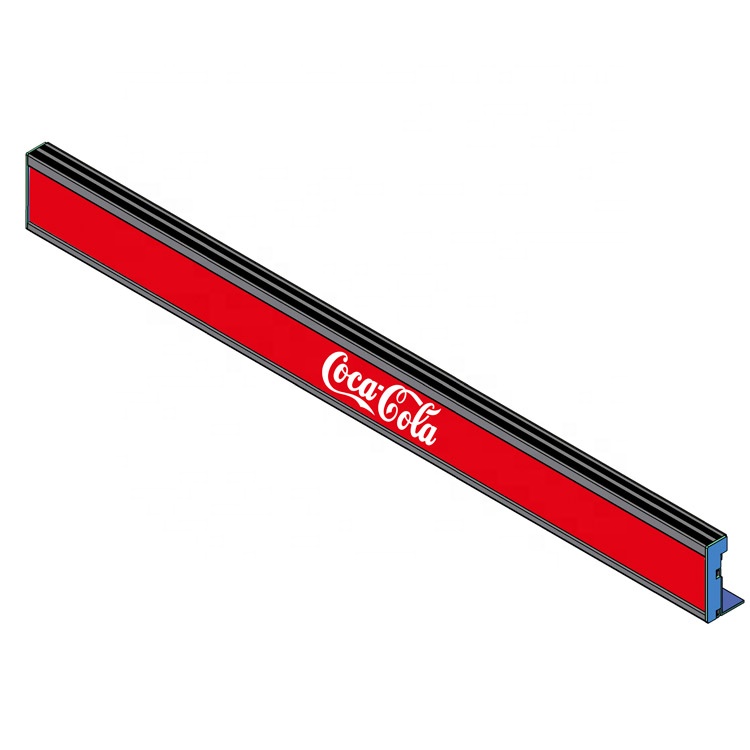

Led shelf video price-tag

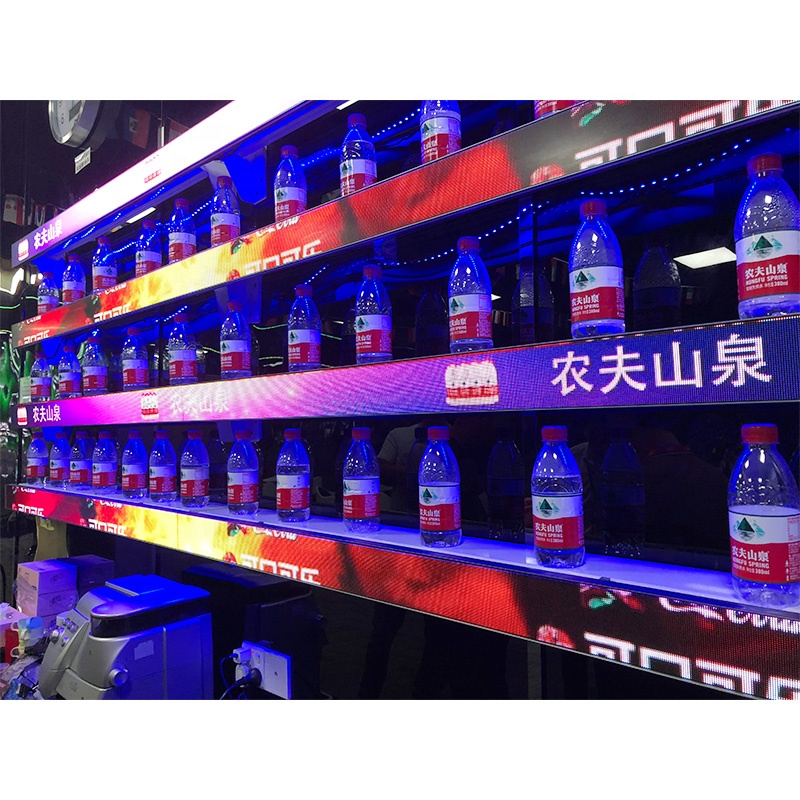

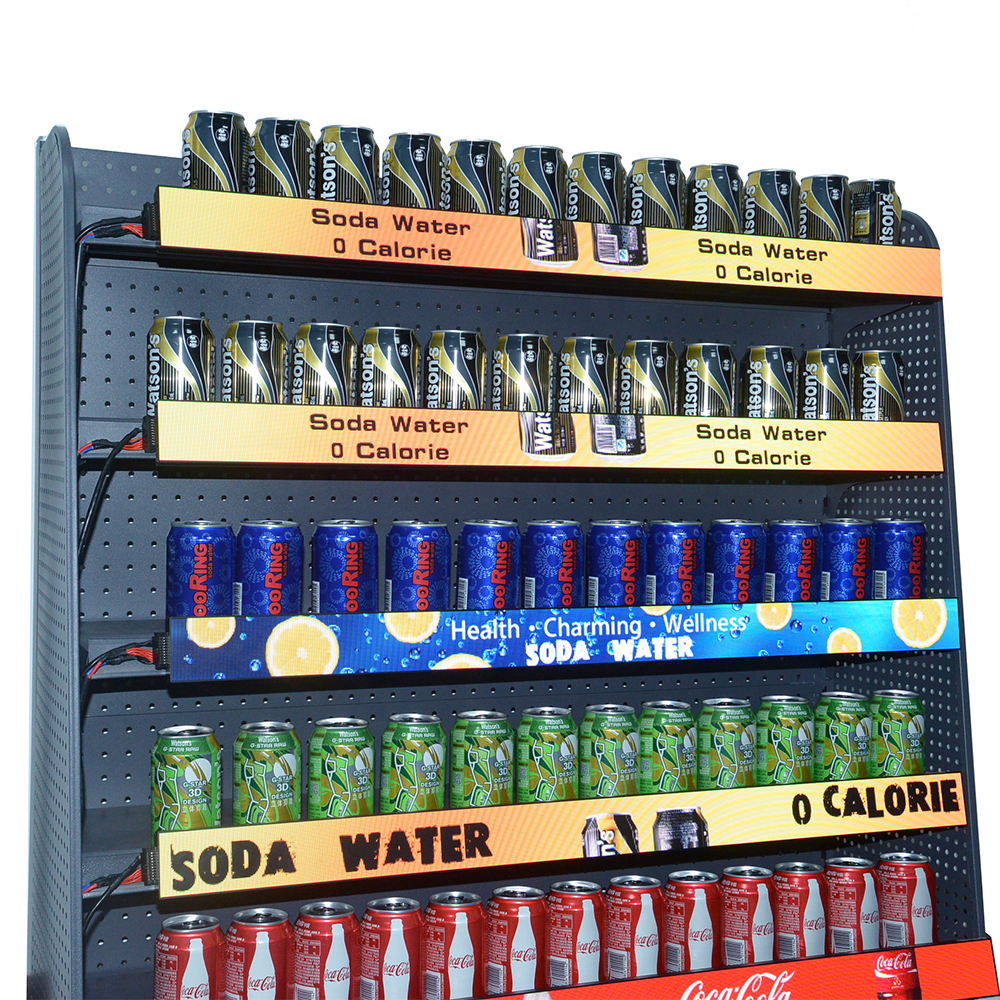

Retail Supermarket Cob Signage Indoor Edge Digital Header Led Shelf Display

--2cm super slim thickness

--modular design to match the standard supermaket shelf

--optional panel size 300*56.25mm, 600mm*56.25mm or 900mm*56.25mm

--easy assemble

--support hot-plug

--support hook type installation

Product features:

1) Smaller pixel pitch: P0.935/ P1.25/P1.5625/P1.875

2) Stronger protection: COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.

3) Higher reliability and stability: COB technology has simpler process on material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.

4) Larger viewing angle: has larger viewing angle and is easy to control the loss of light refraction.

Led shelf video price-tag

Item	Parameters
Model	P1.25
Pixel Pitch(mm)	1.25
Physical Density (dot/sqm)	640,000
LED Configuration	1RGB
Module Size (mmxmm)	150*56.25
Module Resolution (PXxPX)	120*45
Scanning mode	1/45
Brightness(cd/sqm)	500
Grey Scale	16bit
Refresh Rate(Hz)	2880Hz
Panel Resolution(PXxPX)	240*45
Panel Max Power Consumption(w)	15
Panel Average Power Consumption(w)	5
Panel Size(mmxmm)	300*56.25
Panel Weight(kg)	0.35
Panel Thickness(mm)	20
Panel Material	Profile aluminum
