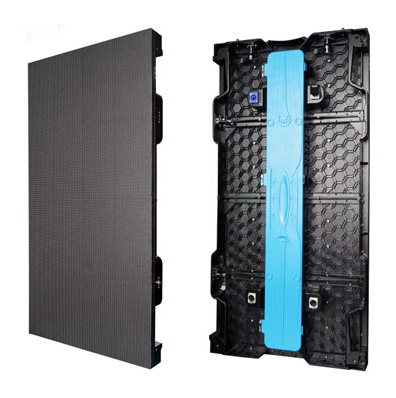

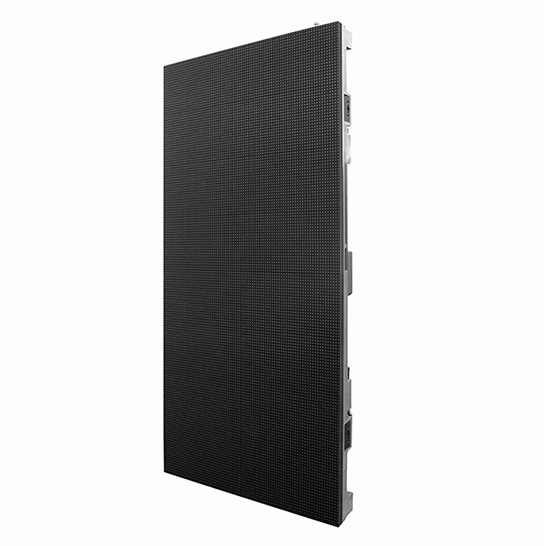

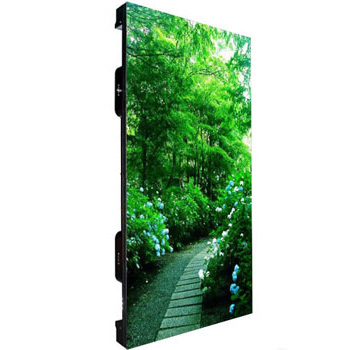

New Designed Stage Rental Led Screen Display
&. Pixel pitch can be 3.91mm and 4.81mmCabinet Size 500mm*1000mm

&. Die-casting Aluminal frame, Lightweight, ultra-thin body of the screen design, effectively saving freight costs.

&. Radian lock scale design it can connect with 15°-15°any kind of radian type.

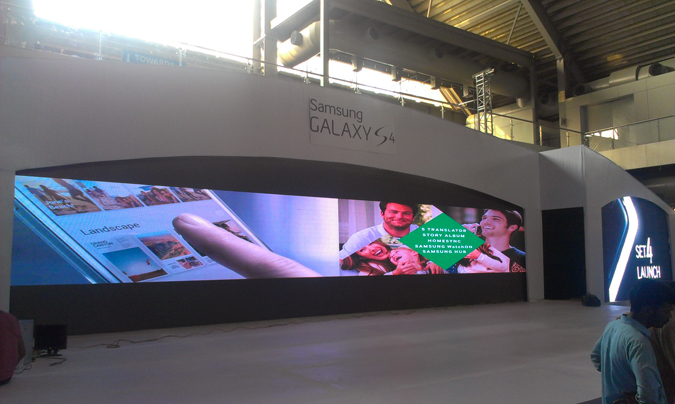

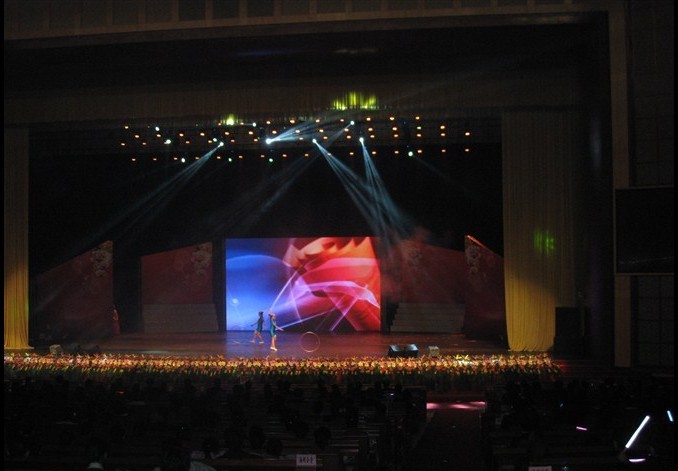

&. Popular apply to main screen, sides screen, sky screen, dancing floor screen combination use.

&. High contrast ratio, high refresh rate makes the screen without any delay or smear phenomenon.

&. Status indicator on backcover lets you know the working status of LED cabinet without opening backcover.

&. Cost-effective solution and very popular
XII Indoor Event Screen

Item	XII Series Indoor Rental Screen
Pixel Pitch（mm）	3.91mm	4.81mm	5.28mm	6.25mm
Pixel density（dot/m²）	65536	43264	32580	25600
LED Type	SMD2020	SMD2020	SMD3528	SMD3528
Viewing angle:	H:140°,V：140°	H:140°, V：140°	H:140°, V：140°	H:140°, V：140°
Brightness（nits）	≥1400

Drive Method	1/16.	1/13.	1/12.	1/10.
Color Depth（nits）	16
Refresh Rate（Hz）	1200	1200		1400
Module Size（mm）	250×250×17	250×250×17	250×250×17	250×250×17
Cabinet Size（mm）	500×1000×70	500×1000×70	500×1000×70	500×1000×70
Cabinet Material	Aluminum Sheet Metal
Cabinet weight（kg）	14	14	11	9
Voltage	110/240V
Average.power（W / m²）	200	195	520	300
Max.power（W / m²）	600	580	640	680
IP Grade	IP31
Operating temperature/humidity	Temperature：-20℃～ 50℃ humidity：10～90%RH
Storage temperature/humidity	Temperature：-40℃～ 60℃ humidity：10～90%RH
Lifetime(h)	≥50000
