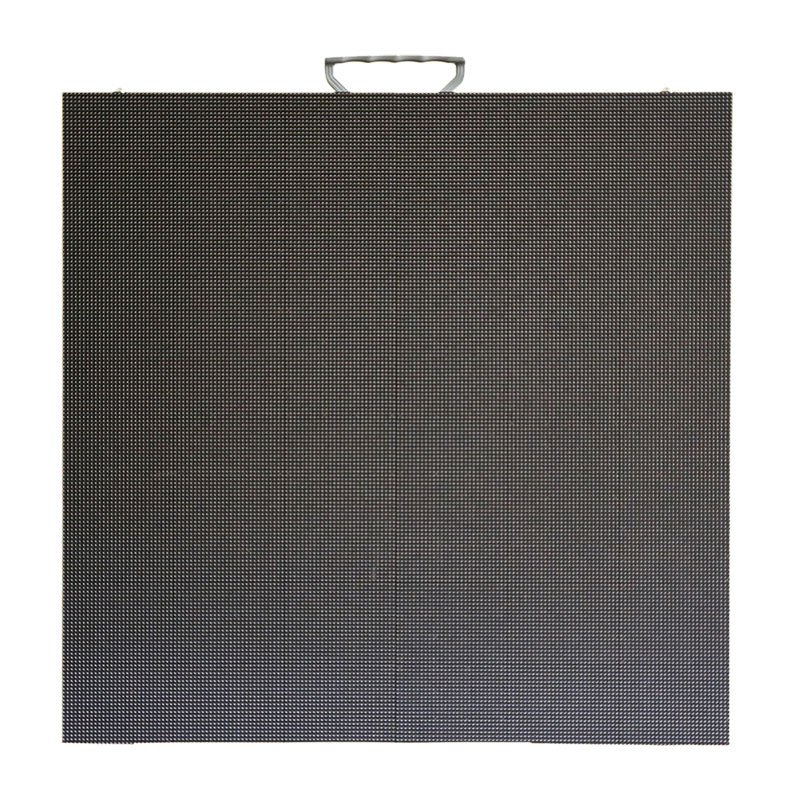

P3.91mm Full Color LED display become more and more popular in the market
1. Ultra thin Led Panel 500mmW*1000mmH*80mmD , light weight 13 KG per panel
2. Easy to calculate Led video wall size , display area exactly 3*2m, 4*3m, 6*4m etc
3. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display

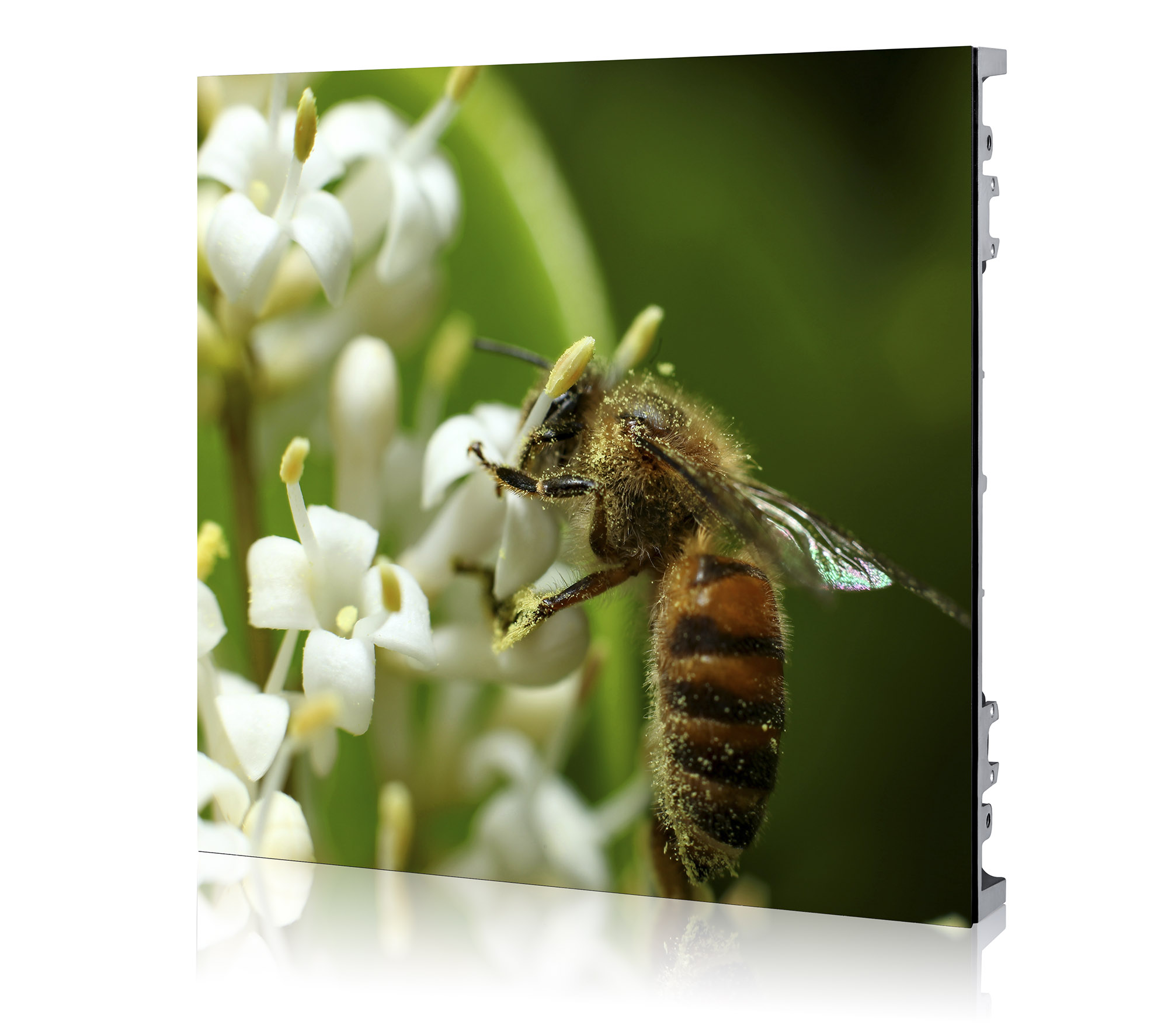

4. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing

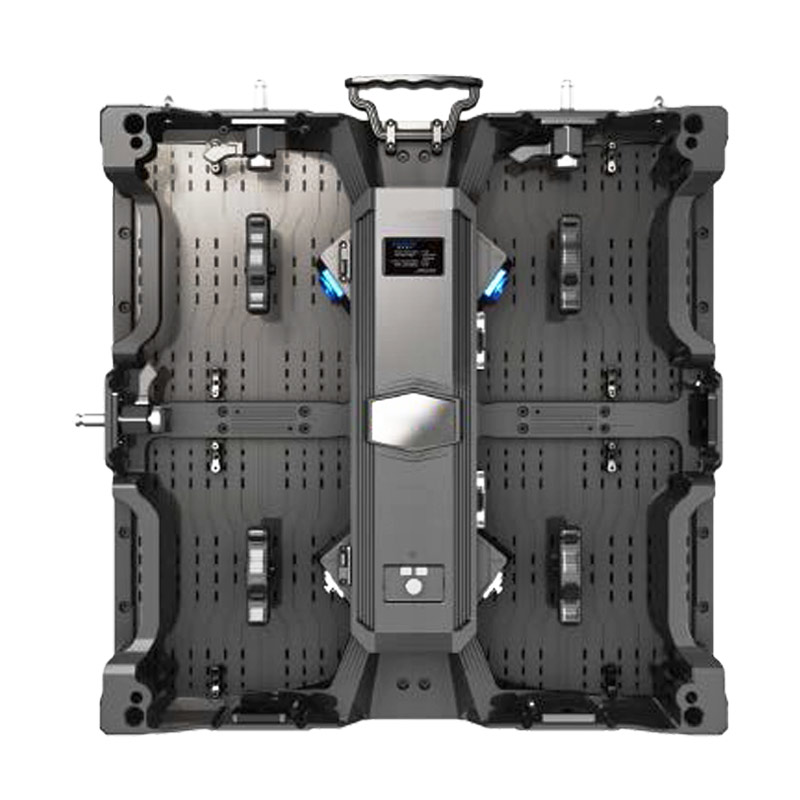

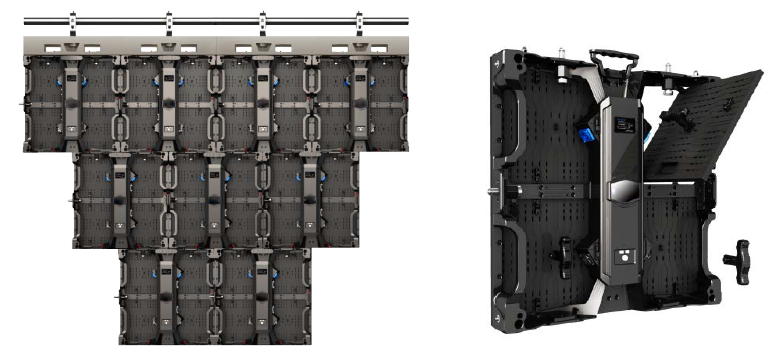

5. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing
6. Special frame structure make excellent heat dissipation, quiet operation without fans

| Model | H500-1 | H500-2 | H500-3 |
| Pixel Pitch | 3.91mm | 4.8mm | 5.25mm |
| LED type | RGB 3in1 SMD2121 | RGB 3in1 SMD2121 | RGB 3in1 SMD3528 |
| Pixel Density | 65536 | 43402 | 36884 |
| Resolution(WxH) | 128*128dot | 104*104 dot | 192*96dot |
| Cabinet size | 500x500x70mm | ||
| Weight | 8kg | 8kg | 8kg |
| Waterproof rate | IP43 | ||
| Brightness | 1200nits | 1200nits | 2000nits |
| View Distance | 4m | 5m | 5m |
| Viewing Angle (H/V) | 140°/120° | ||
| Gray Scale | 14bit | ||
| Color type | 68 Billion | ||
| Max.Power Consumption | 250W/PCS | 120W/PCS | 120W/PCS |
| Ave .Power Consumption | 130W/PCS | 60W/PCS | 60W/PCS |
| Refresh rate | 1920Hz to 3840Hz | ||
