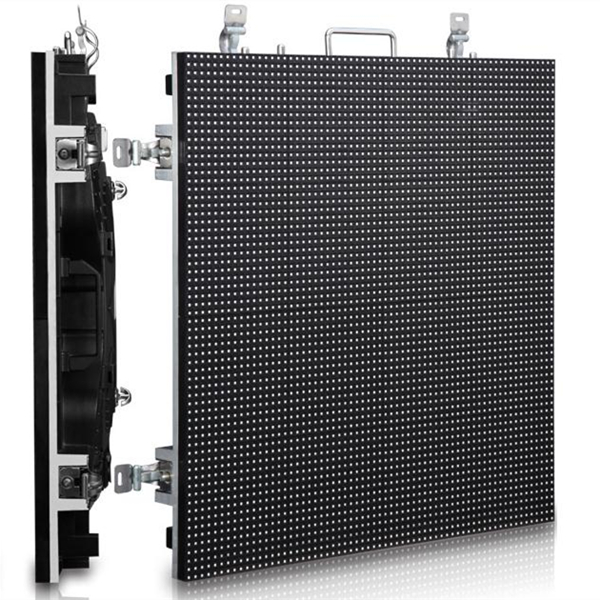

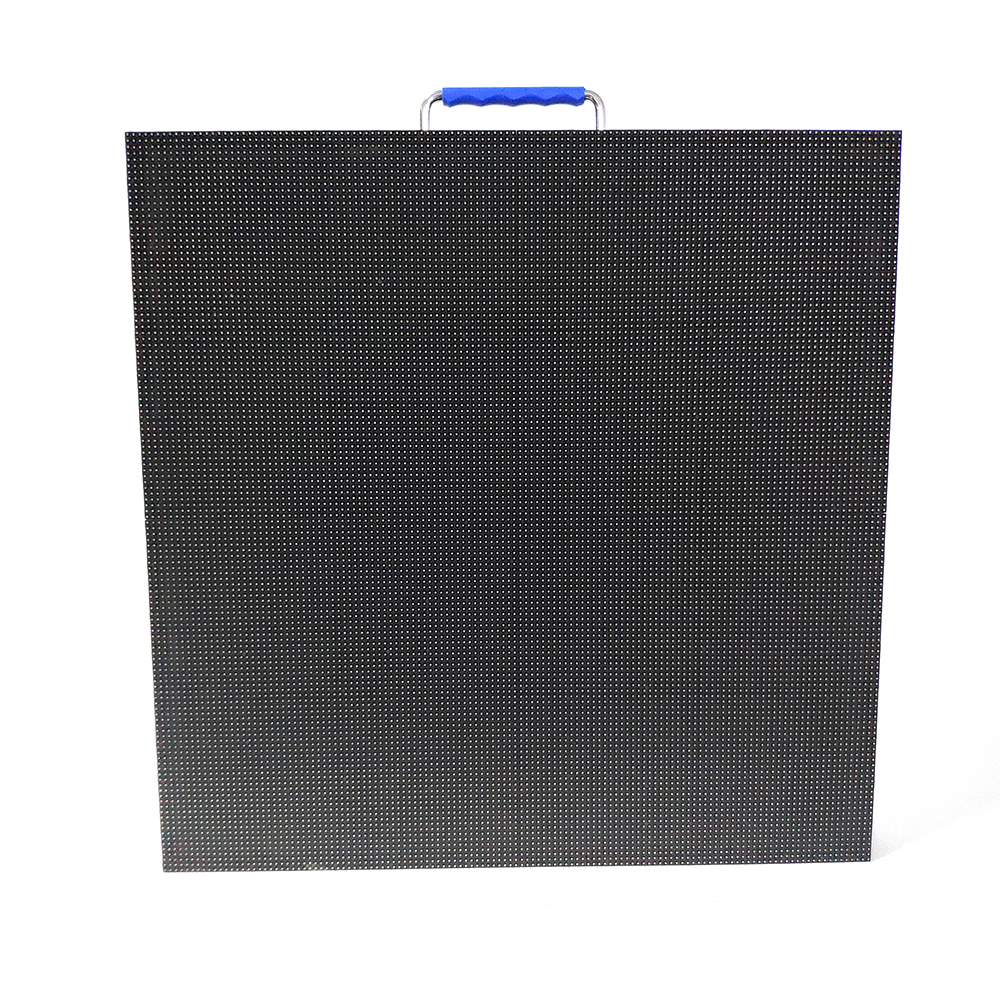

1. Ultra thin Led Panel 500mmW*500mmH*80mmD , light weight 7.5 KG per panel
2. Easy to calculate Led video wall size , display area exactly 3.5*2m, 4*2.5m, 6*3.5m etc
3. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display
4. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing

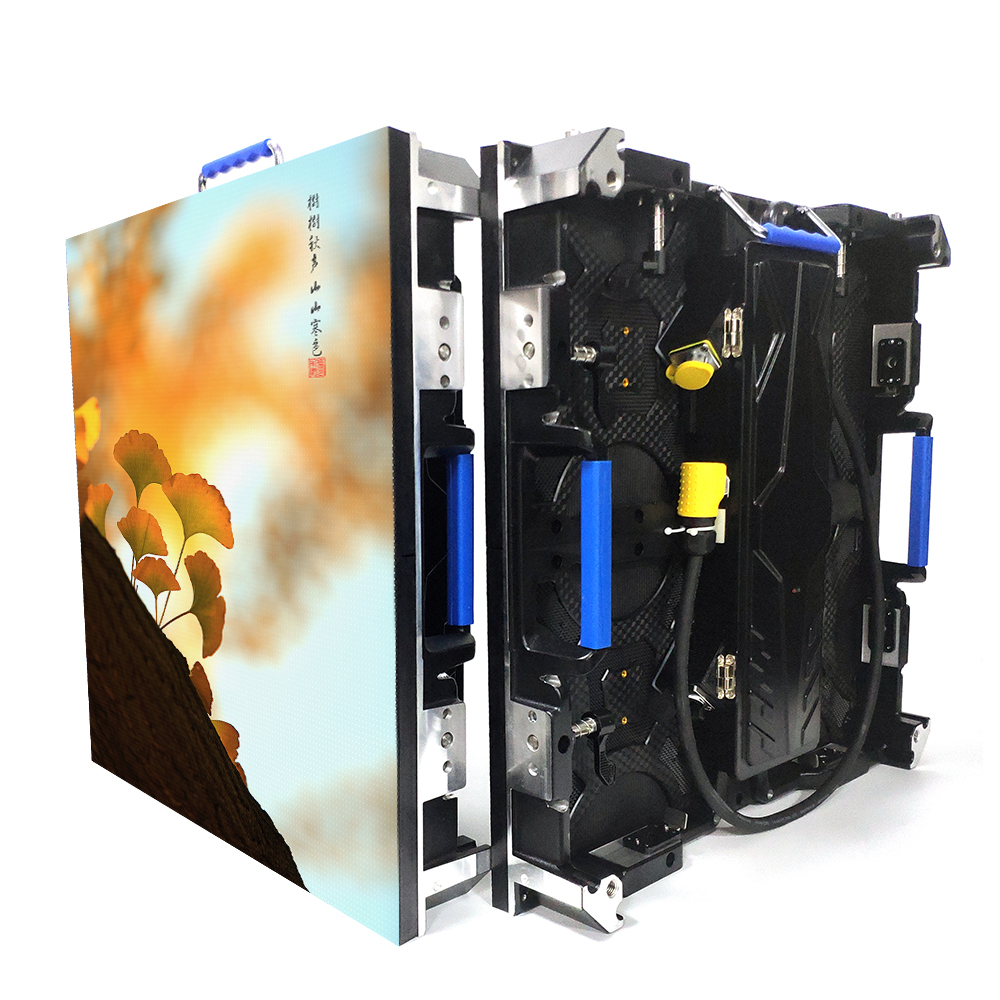

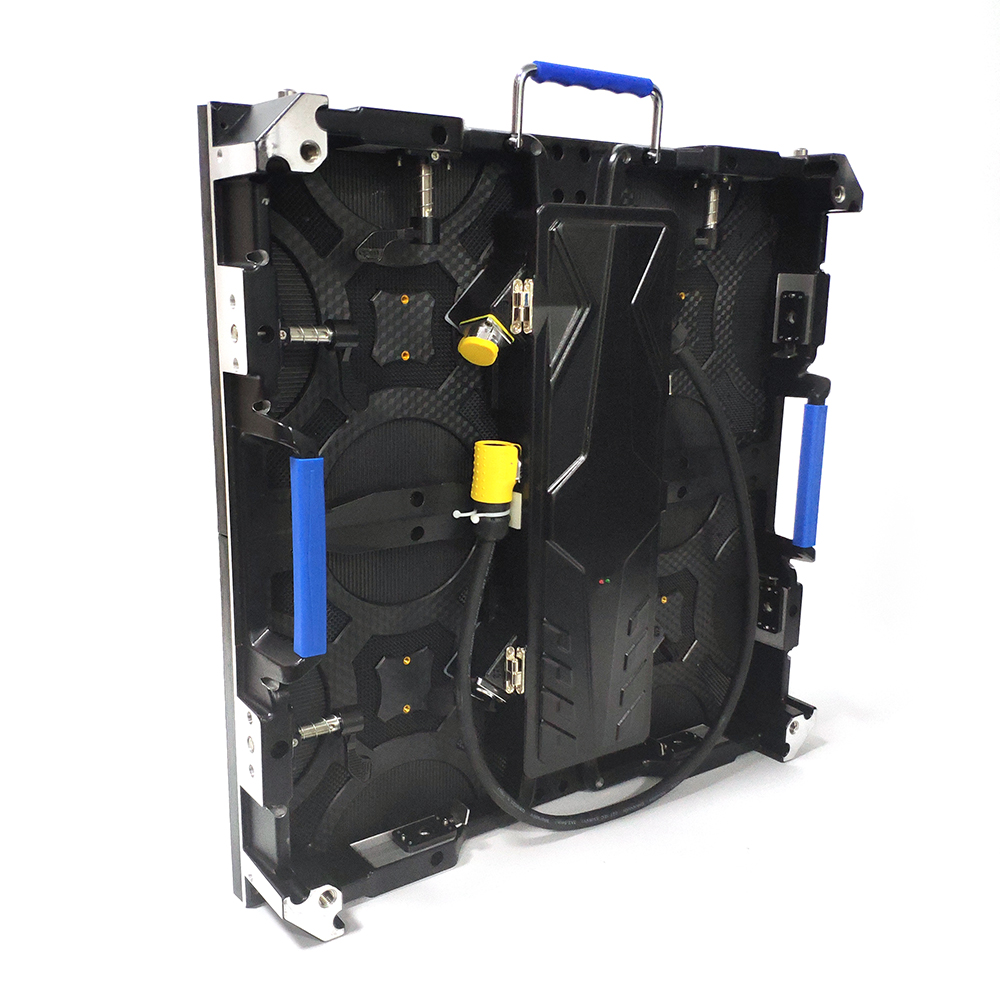

5. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing
6. Special frame structure make excellent heat dissipation, quiet operation without fans
| Model | P2.97 Indoor Full Color LED Video Wall |
| Pixel pitch | 2.97 mm |
| Pixel density | 112,896 dots / sq.m |
| Module size(W*H) | 250 mm (width) * 250 mm (height) |
| Module pixels(W*H) | 84 dots * 84 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/28 scan |
| LED lamp type | SMD2121 |
| Cabinet size(W*H*D) | 500mm (width) * 500mm (height) * 80mm (depth) |
| Net weight | 7.5 Kg / cabinet |
| Cabinet resolution | 168 dots (width ) * 168 dots (height ) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 1100 cd / sq.m |
| Power consumption | Max:150W / cabinet , Average: 75 W / cabinet |
| Operating Voltage | 90-264VAC 47--63Hz |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%—95%RH |
| Life time | ≥100,000hours |
