1: Standard Size Panel: 250*250mm
2: Standard Cabinet Size: 500*500mm or1000*500mm
3: Use of Special heat dissipation structure make excellent heat dissipation, Quiet operation without fans
4: High refresh/High contrast/High grayscale/ Gorgeous picture showing
5: Ultra-wide viewing angle give user the largest screen viewing area.

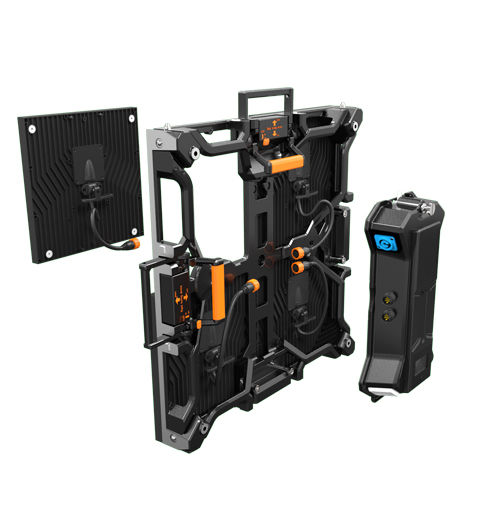

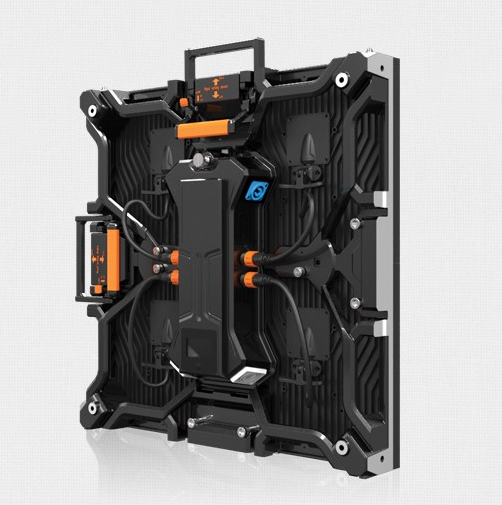

6: Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.
Value | RI2.6 | RI3.9 |
Pixel pitch (mm) | 2.6 | 3.91 |
Pixel configuration | SMD2020 | SMD2020 |
Brightness (nits) | 1100 | 1000 |
Pixel Matrix Per Panel | 192 x 192 | 128 x 128 |
Pixel Matrix Per Sq.m | 147929 | 65536 |
Viewing Angle (H/V) | 140 / 140 | 140 / 140 |
Refresh rate (Hz) | ≥1920 | ≥1920 |
IP grade ( F / R) | IP40/ IP31 | IP40/ IP31 |
Input voltage ( V ) | AC220V±10% | AC220V±10% |
Power Consumption (Max / Avg) | 460/ 160 w/sq.m | 460/ 160 w/sq.m |
Size (L x W x D mm) | 500x500x82.5 | 500x500x82.5 |
Panel weight (Kgs) | 6.8 (Die-casting Al.) | 6.8 (Die-casting Al.) |
