P3.9 flexible video wall for corporate events

Features
Specs
Application
Order

p3.91 indoor rental led display/led screen,cheap led video wall

- Indoor: p2.976mm, P3.91mm, Outdoor: P3.91mm, P4.81mm
- 500*500 and 500*1000mm can use together
- Fast lock system, unique design
- LCD available for checking working time, temp, and voltage.
- Novastar Amor card used, high refresh rate between 1920 to 3840Hz, 14 to 16bits gray scale.
- Outdoor with IP65 front and back waterproof,
-Removable Power box design, fast for maintainence

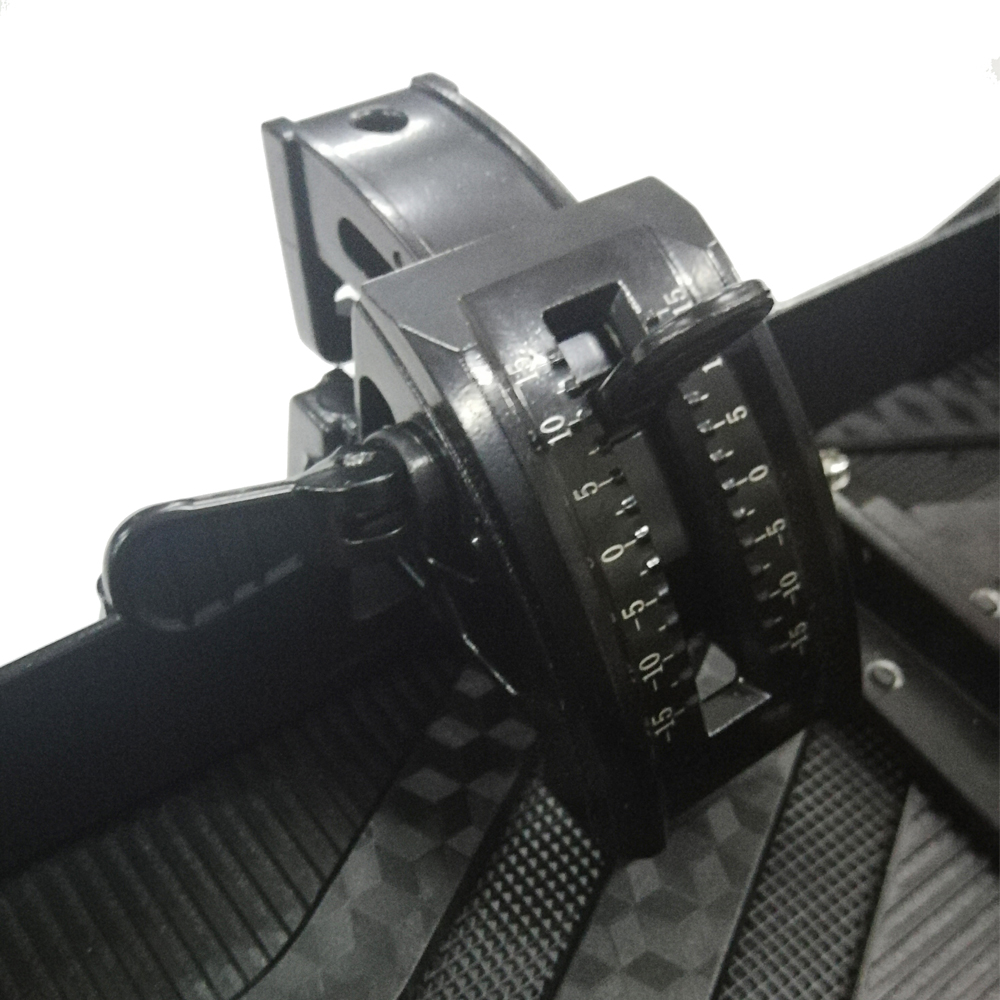

-Curve and Flat locks available. Support Convex 7.5degree, and concave 15degree.

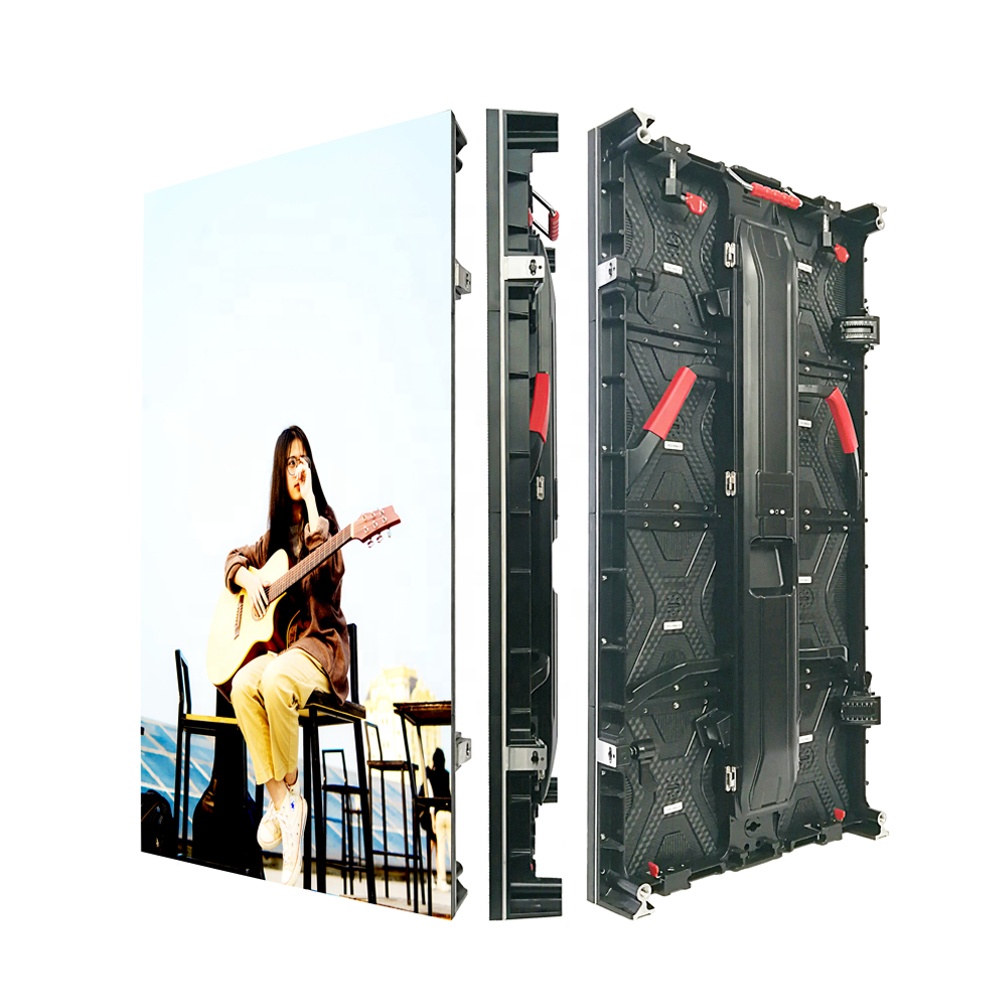

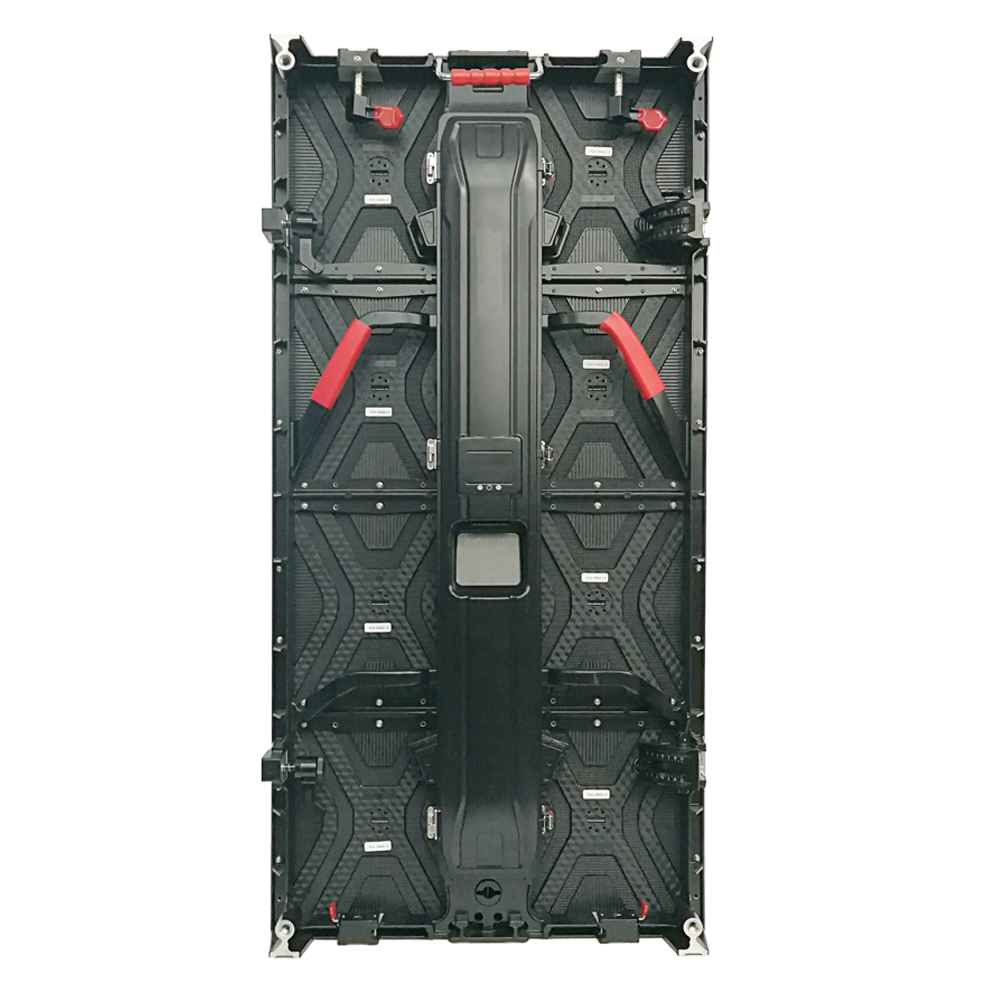

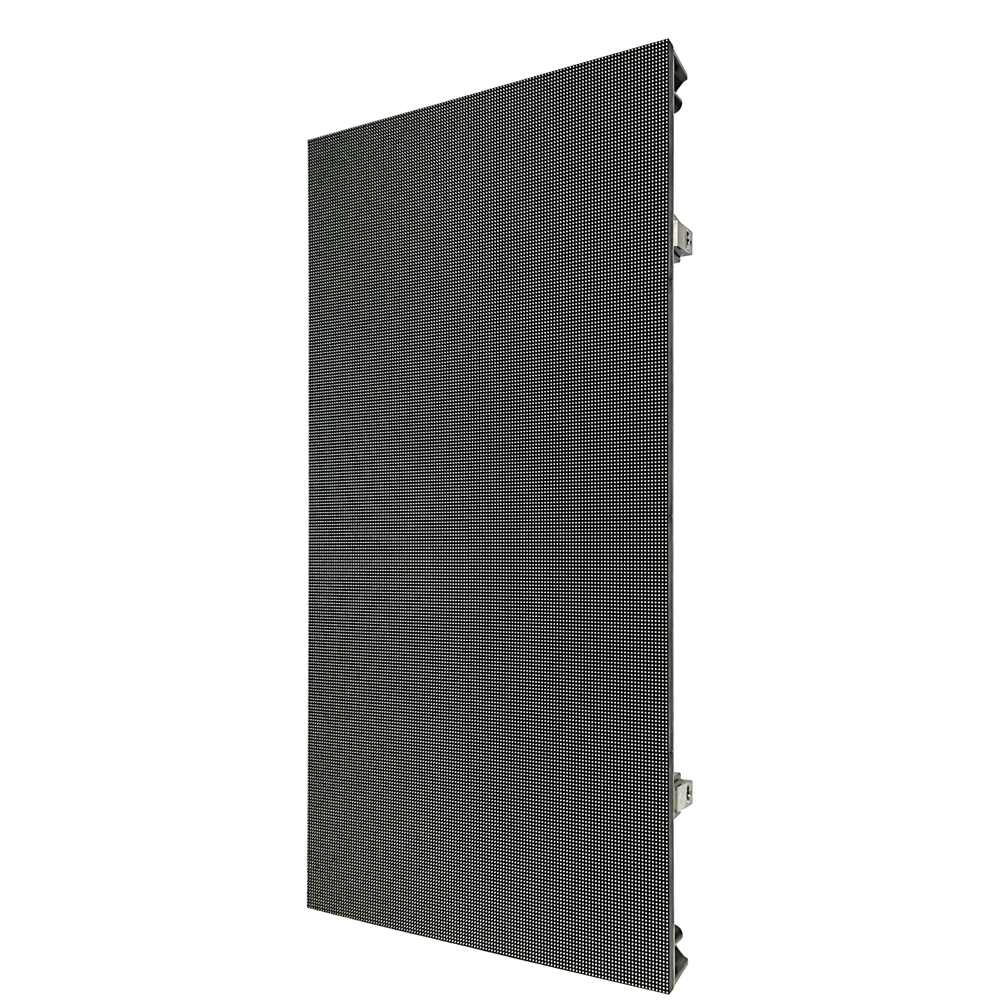

P3.9 flexible video wall for corporate events

P3.9 flexible video wall for corporate events

Pixel Information	Pixel Pitch	3.91mm
	Pixel Density	147456dots/m2
	Pixel Configuration	SMD2121
	LED Wavelength	Red:615 nm - 635 nm
		Green:520 nm - 535 nm
		Blue:465 nm - 475 nm
LED Module	Size(mm)	250(Width) * 250(Height)
LED Module	Resolution	64 (Width) * 64(Height)
Cabinet	Size(mm)	500(Width) * 1000(Height)
	Resolution	128(Width) * 128(Height)
	Total QYT Module Per Cabinet	2(Width) * 2(Height)
	Material	Steel,Die casting Aluminum
Power	Input Voltage	100-240V AC, 50/60Hz
	Max Power Consumption	800 Watt/sqm
	Avg. Power Consumption	350 Watt/sqm
Brightness	5000cd/m2
	Brightness Uniformity	Luminance Discrepancy < 5%
	Best Viewing Angle	Horizontal:140°,Vertical:140°
Ambient Conditions	Temperature Range	Working:-20deg. to +65deg
	Operating Humidity	10%-90%RH
	Ingression Protection Grade	IP40
Processing	Scanning Mode	1/32scan
	Refresh Rate	>2460Hz, Adjustable(depends on control system)
	Signal Input	DVI, Composite Video for Live Video
	Supported Networking	Through LAN/WAN, RS 232/RS485
	Controller	Linsn or Nova
