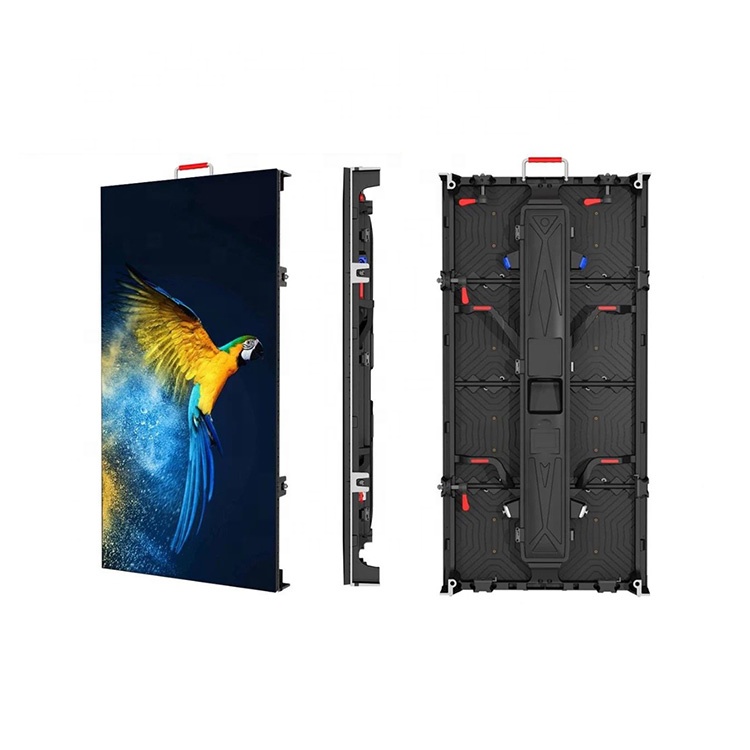

1.500x500mm die-casting aluminum led panels, super thin, light weight, only 7.5kg/pcs .

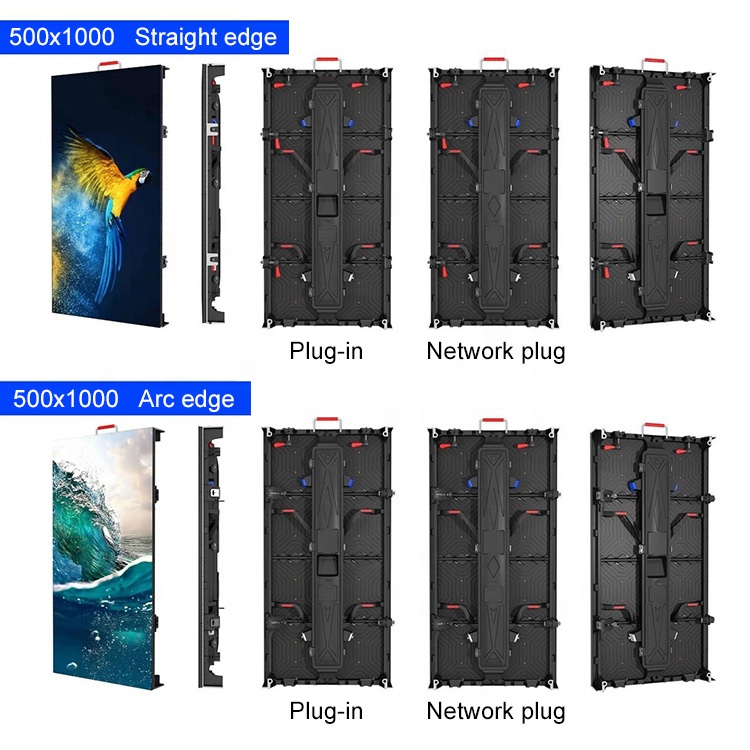

2.curved design ensure the LED screen could be by both flexible curved install and regular straight install.

3. the LED panels with fast locks, handles, aviation plugs, can install the LED Screen easily and quickly.

4. seamless and flatness to ensure high quality nice videos, wide viewing angle.

5. support VGA, DVI, HDMI, TV programs, VCD, DVD, S-video, live show, etc.

6. support hanging up, ground support, wall mounted installation, etc.

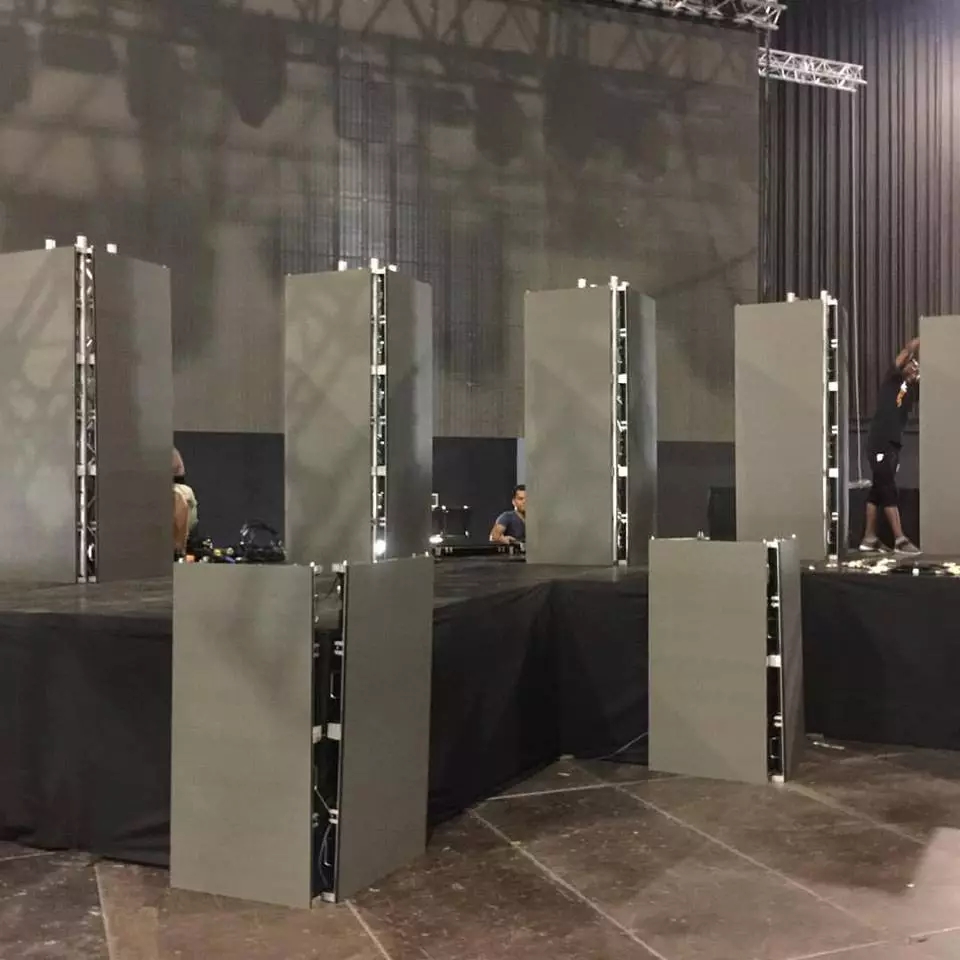

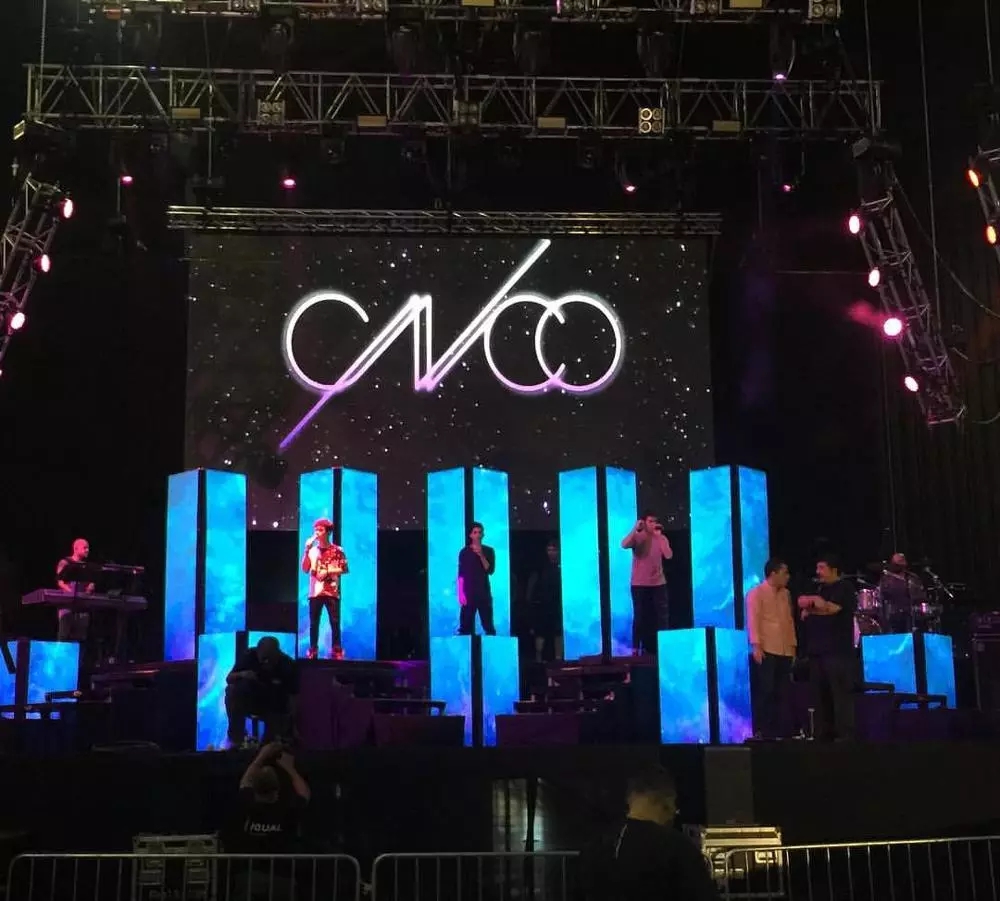

P3.91 stage events wall for media companies show

Main Technical Parameters for Indoor Series
Model	SGO-P3.91R
Pixel Pitch(mm)	3.91
Physical Density(dot/m²)	65536
LED Configuration	1R1G1B
LED Type	SMD2121
Model Size(mm*mm)	250 x 250
Module Resolution( W*H)	64 x 64
Drive Mode	1/32 scan
Brightness(cd/m²)	≥1800
Max Power Consumption(W/ m²)	480
Average Power Consumption( W/m²)	220
Cabinet Size(mm*mm)	500500 or 5001000
Cabinet Resolution(W*H)	256x 256
Mini. View Distance (m)	4
View Angle(deg.)	Horizontal≥110℃,Vertical≥70℃
Grey Scale	≥16 bits
Refresh Rate( Hz)	≥960
MTBF	>10,000 hours
Life Span	≥100,000 hours
Working Input Voltage	AC220V/50Hz or AC110V/60Hz
Module Display Brightness Uniformity	<2%
Earth Leakage Current	<3mA
Temperature-operating	-25℃~45℃
Humidity-operating	10%~95%
Operating System	Windows98/me/2000/NT/XP/W8/Vista/W7
