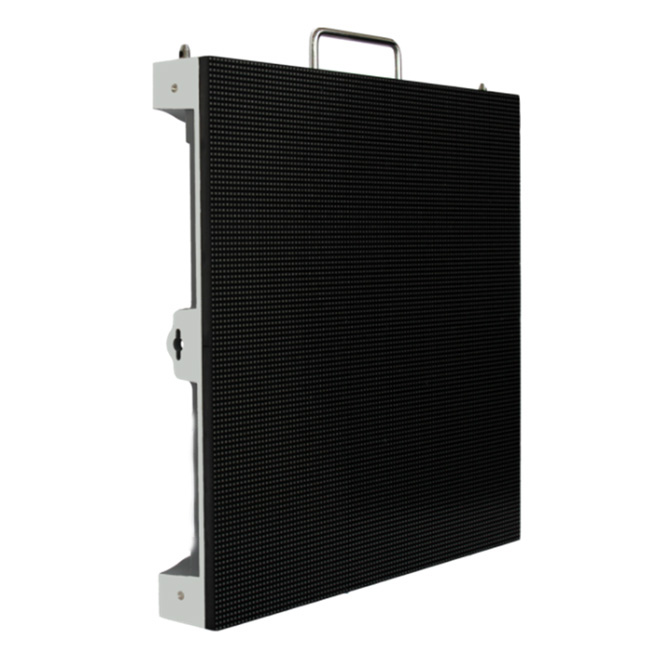

576*576mm p6 Die Casting Aluminum Indoor Rental LED Screen Display

&. Pixel pitch is 6mm,Cabinet size is 576*576mm

&. Aluminum die-casting cabinet for indoor rental ,with fast spring lock.

&. High energy-saving LED display in the world, which can save power up to 40% and reduce the cost.

&. It has reduced input power of led chips, making the lifetime 1.3 times longer.

&. High refresh rate, high gray scale and stable effect with high definition.

&. It supports hot plugging, which makes the screen work more safe.

&. The high contrast ,high refresh rate makes the LED display image without any delay and ghosting phenomenon.

&. Application:Indoor Advertisement , Government Project , Theme Park, Stadium , Large Exhibition Hall and so on.

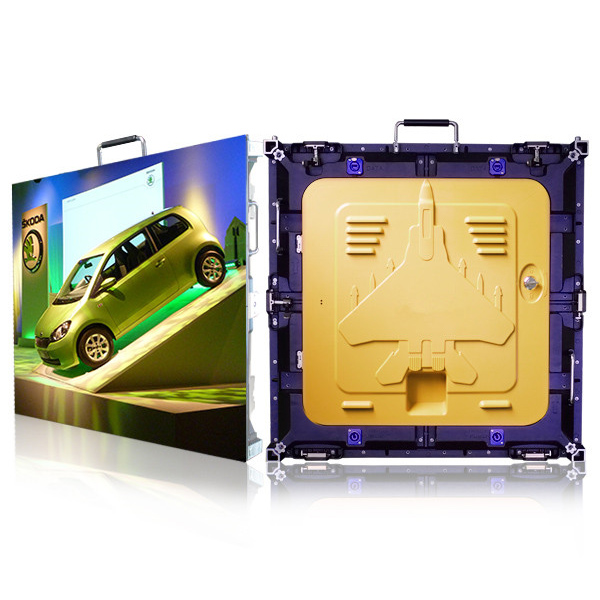

RD576 Rental Screen Display

RD 576 P6 Rental Screen Specification
Part Number	RD576
Pixel Pitch	6mm
LED Configuration	1R1G1B SMD3528
Pixel Density	27777dot/m2
Module size	288x288x15mm
Module Resolution	48x48dot
Cabinet Size	576x576x75mm
Cabinet Resolution	96x96dot
Cabinet Weight	10.5kg
IP Rating ( front/back)	IP30
Scanning Mode	16S
Brightness Intensity	1500-2000CD/m²
Viewing Angle	120°
View Distance	＞6m
Gray Scale	14bit
Display Scale	16.7M
Max Power Consumption	65 W/m²
Ave Power Consumption	220 W/m²
Refresh Frequency	≥960HZ
Environmental	INDOOR
Brightness Adjustment	0 - 100 levels adjustable
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100/240 50/60HZ。
Operating Temperature	- 20℃~+50℃
Operating Humidity	10~90% RH
Operating Life	100,000hours.
