LED Rolling Gate Display P0.78 P1.25 Advantages of LED Rolling Gate Display P0.78 P1.25 Screen Rollable module design Separate power control No structure required, no joints and screw points Not only can it achieve fast installation and save labor costs, but it is also light in weight.

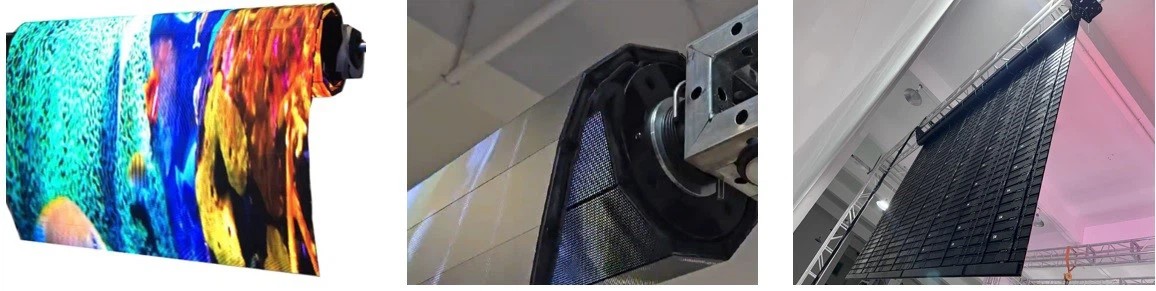

Revolutionary Led roll up gate video dislays

Revolutionary Led roll up gate video dislays

Advantages of LED Rolling Gate Display P0.78 P1.25 Screen

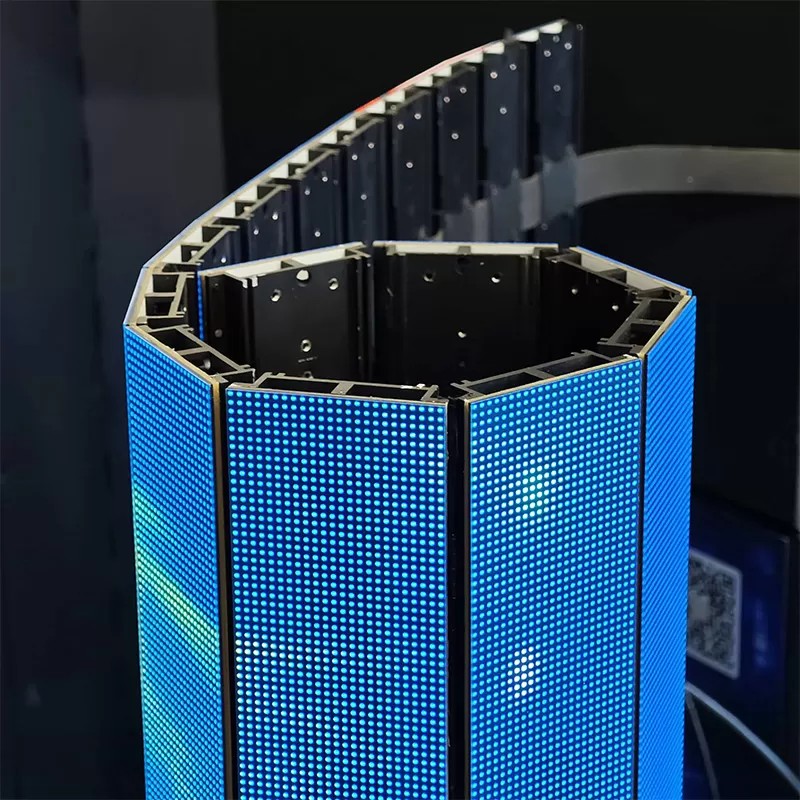

Rollable module design
Separate power control
No structure required, no joints and screw points
Not only can it achieve fast installation and save labor costs, but it is also light in weight, small in packaging, and easy to transport.

Revolutionary Led roll up gate video dislays

ixel Pitch (mm)	1.25	1.56	1.93	2.604	3.91
LED Configuration	SMD1212	SMD1212	SMD1212	SMD1515	SMD1515
Pixel Density (pixels/m²)	640000 dot/m²	409600 dot/m²	262144 dot/m²	147456 dot/m²	65536 dot/m²
Module Size	500 x 62.5 x 18	500 x 62 .5x 18	500 x 62.5 x 18	500 x 62 .5x 18	500 x 62.5 x 18
(W x H x D)(mm)	500 x 62.5 x 18	500 x 62 .5x 18	500 x 62.5 x 18	500 x 62 .5x 18	500 x 62.5 x 18
Cabinet Size	1000 x 1500 x 18	1000 x 1500 x 18	1000 x 1500 x 18	1000 x 1500 x 18	1000 x 1500 x 18
(W x H x D)(mm)	1000 x 1500 x 18	1000 x 1500 x 18	1000 x 1500 x 18	1000 x 1500 x 18	1000 x 1500 x 18
Scan	50s	40s	32s	16s	16s
Brightness (cd/㎡)	600	600	700	700-1000	700-1000
Max./Avg. Power	200 / 100
(W/Cabinet)	200 / 100
Viewing Angle	160°/160°
Operating Voltage	100-240V AC 50-60Hz
Refresh Rate	3840Hz
IP Rating (Front/Rear)	IP54/IP45
Maintenance Mode	Front & Rear Maintenance
Max Load-Bearing	2000kg
