Curve Die-casting rental Screen with -15 to +15 angles.

&. Pixel pitch can be 3.91mm and 4.81mm; Cabinet size is: 500*500mm

&. Die-casting aluminum cabinet,high precision,the effect of heat dissipation is remarkable.

&. Light weight, the weight of the cabinetis less than 7.8 kg; easy installation.

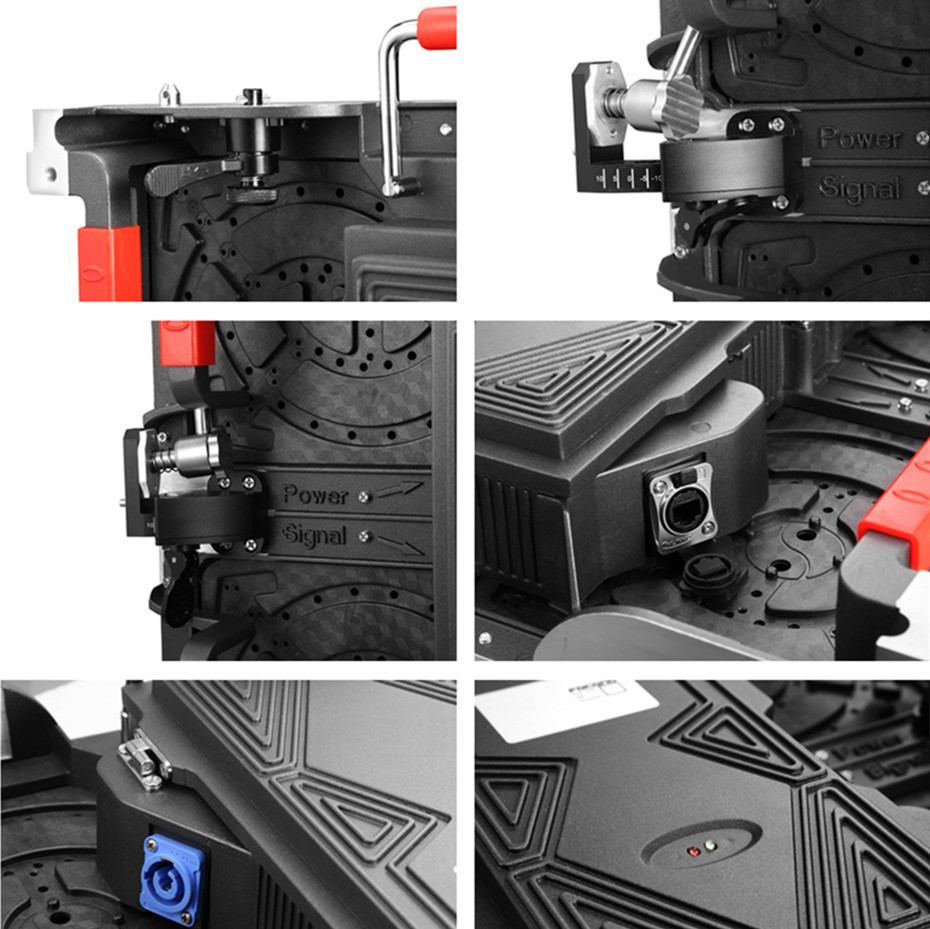

&. With bullet-shaped spring lock, the module can be quickly removed and easy to maintain.

&. With angle adjusters to be curve screen

&. Suitable for indoor rental display

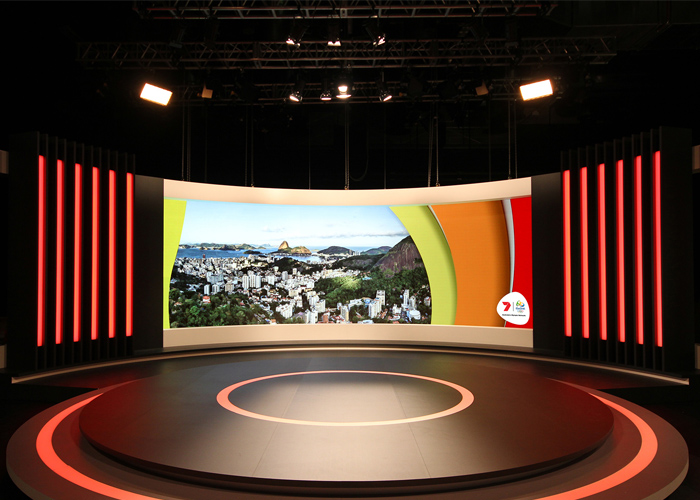

R500 Curve Video Screen Advertising

Item	R500 Rental Die-cast LED Display
Model	R500-3	R500-4
Pixel Pitch（mm）	3.91mm	4.81mm
Pixel density（dot/m²）	65536	43264
LED Type	2121	2121
Viewing angle:	H:140°,V：140°	H:140°,V：140°
Brightness（nits）	≥1200	≥1200
Drive Method	1/32.	1/13.
Color Depth（nits）	65536
Refresh Rate（Hz）	1920	1920
Module Size（mm）	250×250×17	250×250×17
Cabinet Size（mm）	500×500×88	500×500×88
Cabinet Material	Die casting aluminum
Cabinet weight（kg）	7.8	7.8
Voltage	110/240V
Average.power（W / m²）	200	195
Max.power（W / m²）	600	580
IP Grade	IP31
Operating temperature/humidity	temperature：-20℃～ 50℃ humidity：10～90%RH
Storage temperature/humidity	temperature：-40℃～ 60℃ humidity：10～90%RH
Lifetime(h)	≥50000
Compliant Standard	CCC、CE
