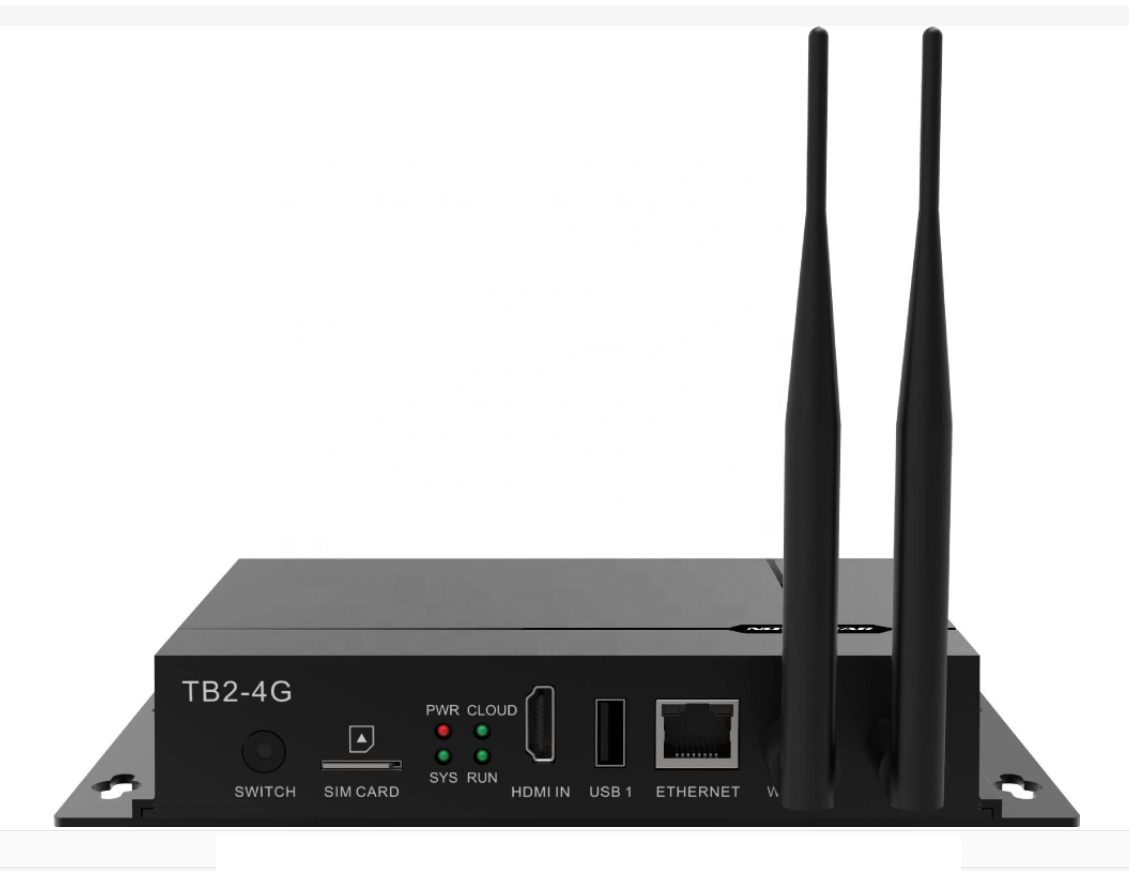

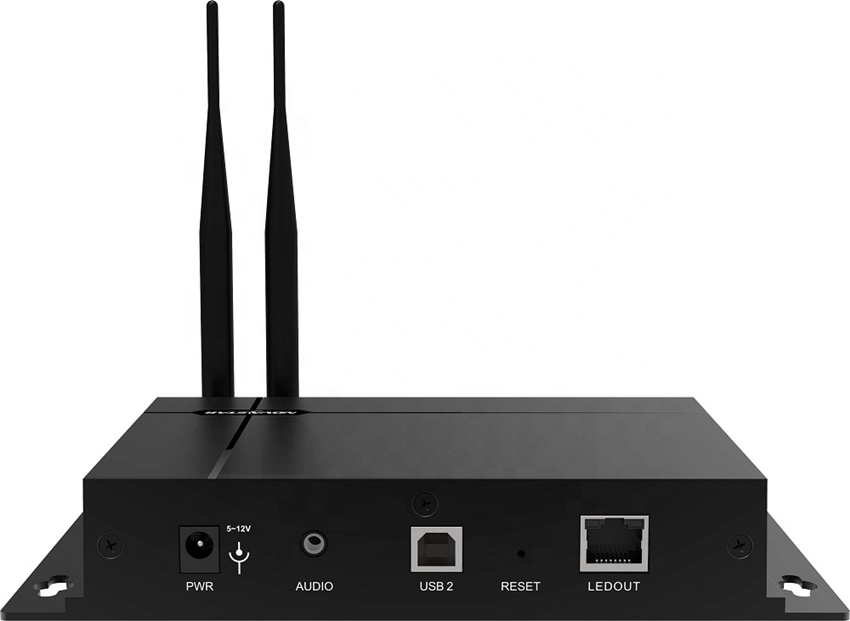

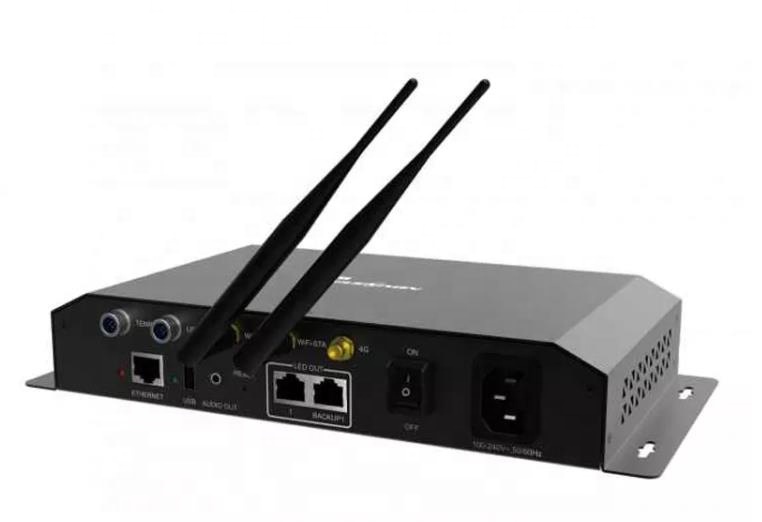

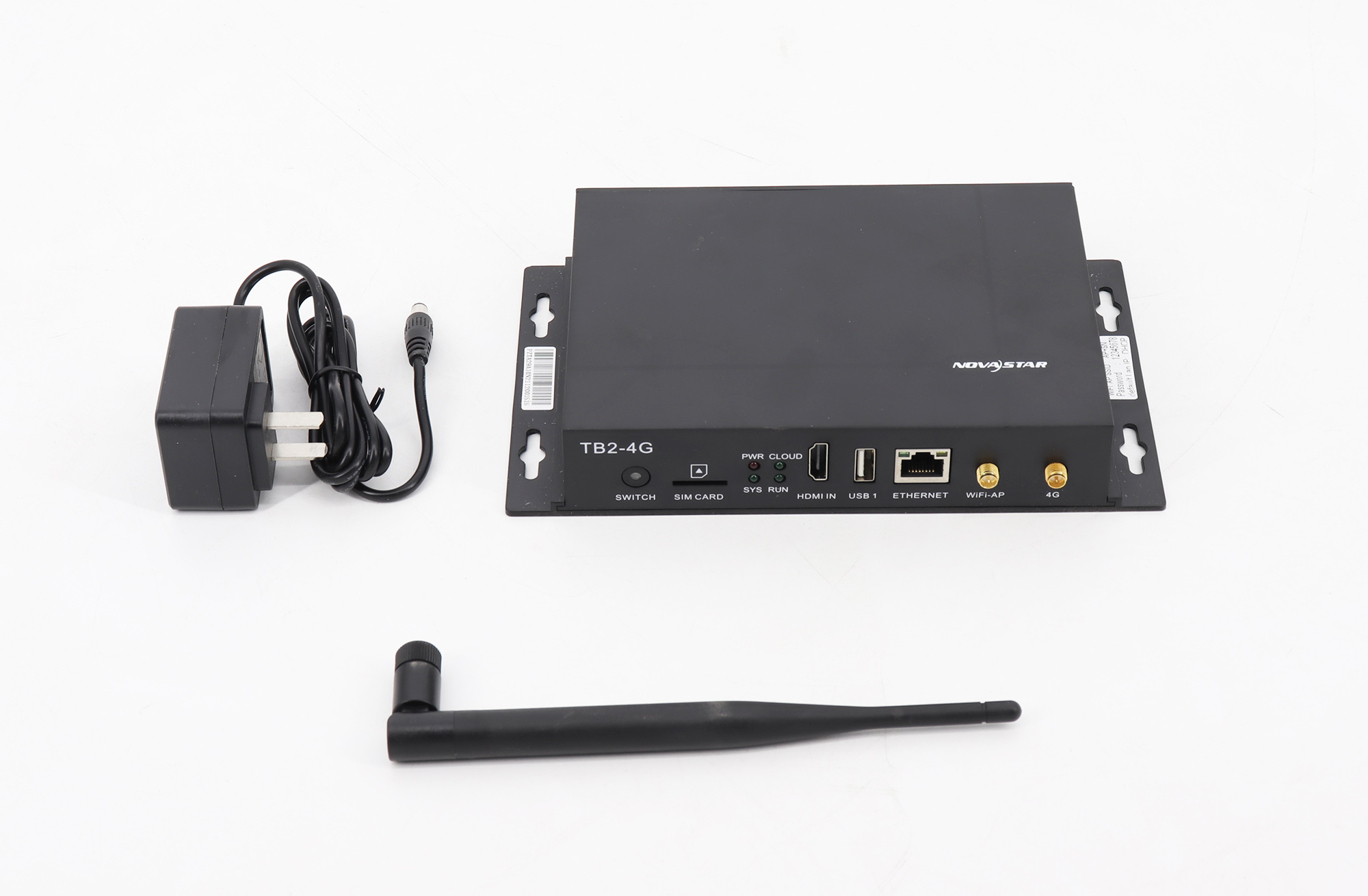

Nova TB2 LED display screen controller
TB2 has the following characteristics:
1.Powerful processing capability.
Total control program.
2.Support synchronous asynchronous dual mode.
3.Support WiFi AP connection.
4.Support for 4G modules. Support USB direct connection to PC.
5.Omni-directional control
6.scheme not only supports PC, mobile, LAN program release and display control, but also supports remote centralized release and monitoring.
The TB1/TB2 hardware also has the following features:
1.Support 650,000 pixel point load capacity, maximum width of 1920 pixels, maximum 1080 pixels. 2.Support gigabit wired network.
3.Support stereo audio output. Support HDMI input mode and full screen adaptive playback.
4.Support U disk program import and play.
5.On-board luminance sensor interface to support automatic and timed intelligent luminance adjustment
Nova TB Player box Parameters
Item Number
TB1-4G(Optional 4G）
TB2-4GOptional 4G
TB3
TB4
TB6
TB8
Load capacity
65W
65W
65W
130W
130W
230W
Output network port
1 way
1 way
2 way,1 main and 1 backup
2 way
4 way,2 main and 2 backup
4 way
High width limit
The widest 1920, the highest 1080
The widest 4096, the highest 1920
Video decoder
Hard decoding for 1080p video
H.265 4K HD video hard decoding; Hard decoding for 1080p video
