* Advanced interlaced motion image adaptive processing technology to eliminate video image movement tail and saw-tooth phenomenon

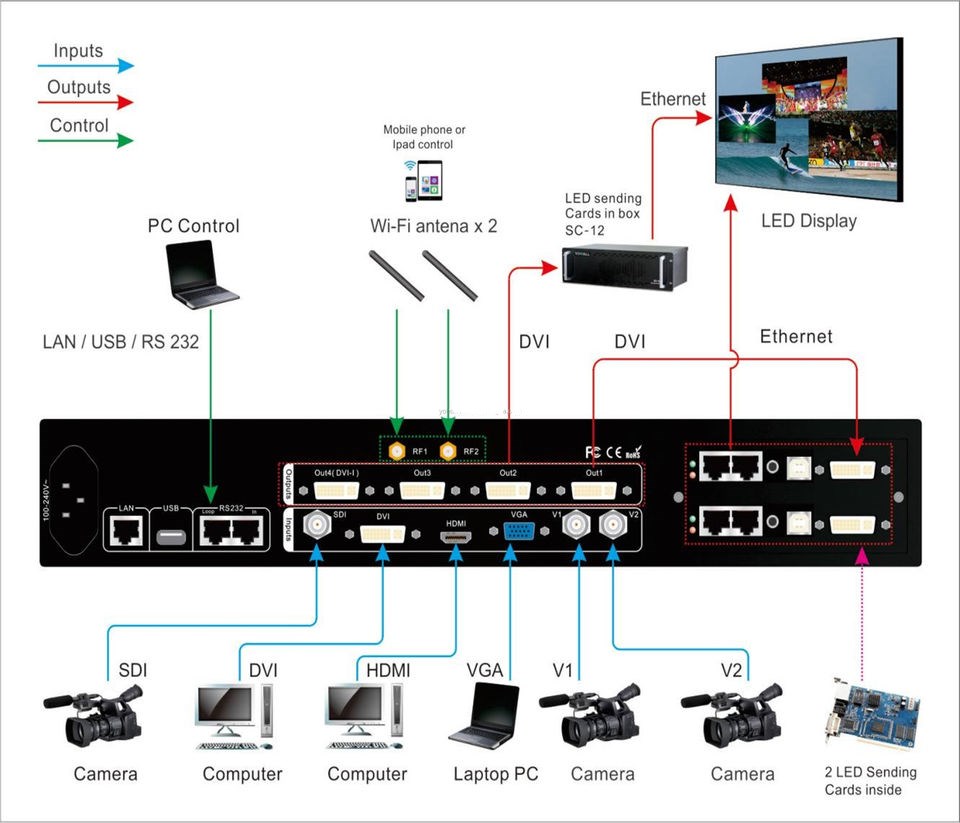

* Multiple analog and digital mixed signals input including 2*Video、1*VGA、1*HDMI、1*DVI、1*SDI / HD-SDI / 3G-SDI；
* Outputs: 1*VGA、4*DVI. Each port max output resolution 1920*1200/60Hz or 1440*1440 @60Hz.
* Zoom in sync，stand-alone unit supports maximum horizontal 7680 pixels or vertical 4800 pixels;
* Seamless switching,fade in fade out switching wipe switching between any inputs.
* Support one key switching and Preselect + Take switching.
* Preview monitor supports monitor current signals and preselect signals.
* Support 2 channels, 3 channels, 4 channels splicing output.
* Support single, 2 or 3 or 4 images display.
* Support auto calculating the splicing parameters.
* Multiple pre-stored mode calls. Seamless switching or fade in fade out switching between modes.
* Variety of control methods：front panel button、RS232、USB and LAN.
Ⅱ Specification
Inputs
type/nums
2×Video
1×VGA（RGBHV）
1×HDMI（VESA/ CEA-861）
1×DVI（VESA/ CEA-861）
1×SDI（SDI/HD-SDI/3G-SDI）
Video system
PAL/NTSC
Composite Video
scope/ Impedance
1V（p_p）/ 75Ω
VGA format
PC（VESA standard）
≤1920×1200_60Hz
VGA scope/Impedance
R、G、B = 0.7 V（p_p）/ 75Ω
DVI/HDMI format
PC（VESA standard）
≤1920×1200_60Hz
HDMI-1.3（CEA-861）
≤1920×1080p_60Hz
SDI format
SMPTE259M-C
SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M
480i_60Hz
576i_50Hz
720p、1080i、1080p
Input ports
Video：P4 of VGA port
VGA：15pin D_Sub(female)
HDMI：A type of HDMI port
DVI：24+1 DVI_D
SDI：BNC/ 75Ω
Outputs
Type/nums
1×VGA
4×DVI
Preview output
1×VGA（DVI OUT4）
DVI Format
1024 x 768_60Hz 1280 x 1024_60Hz
1440 x 1440_60Hz 1920x1080_50/60Hz
1920 x 1200_60Hz 2560 x 816_60Hz
2880 x 800_60Hz 3072 x 720_60Hz
3600 x 600_60Hz 1200 x 1600_60Hz
