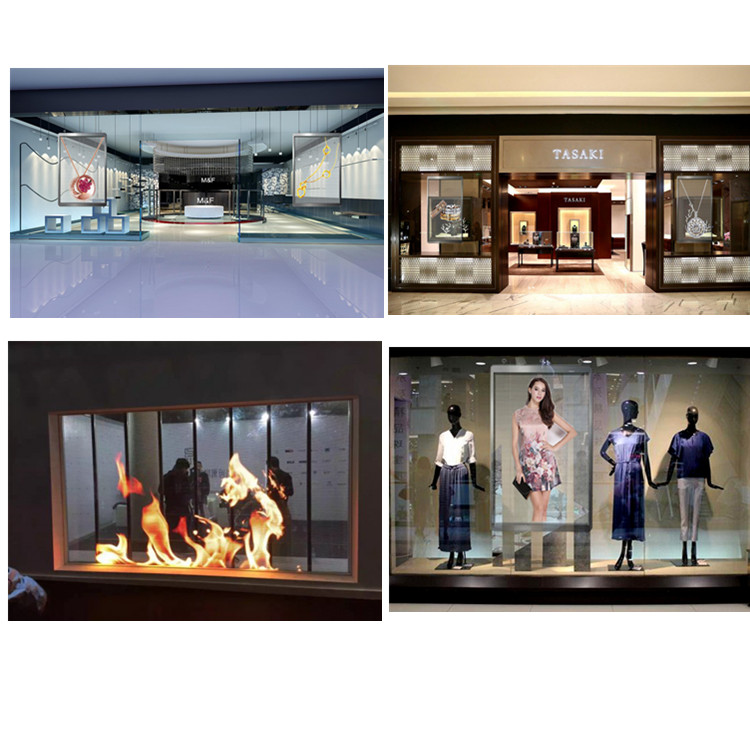

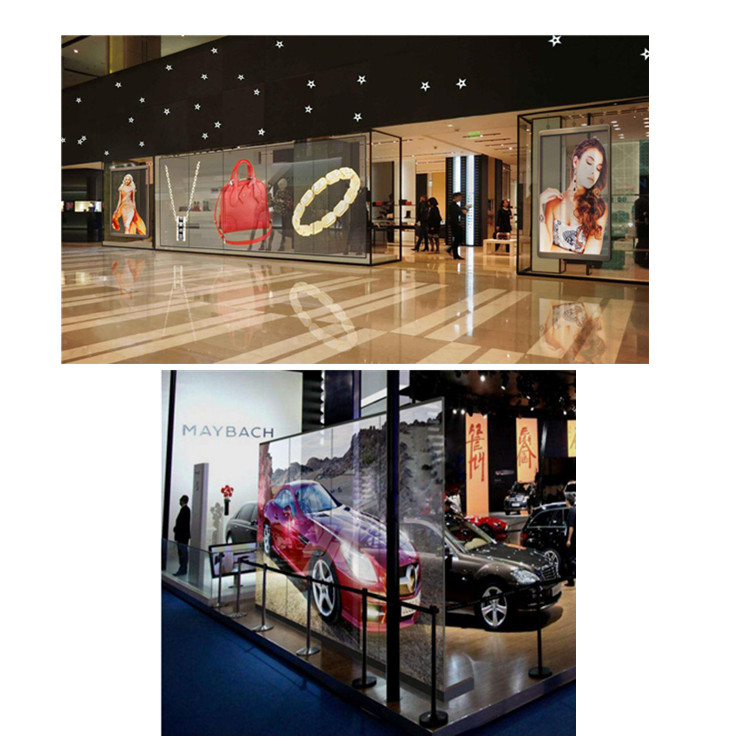

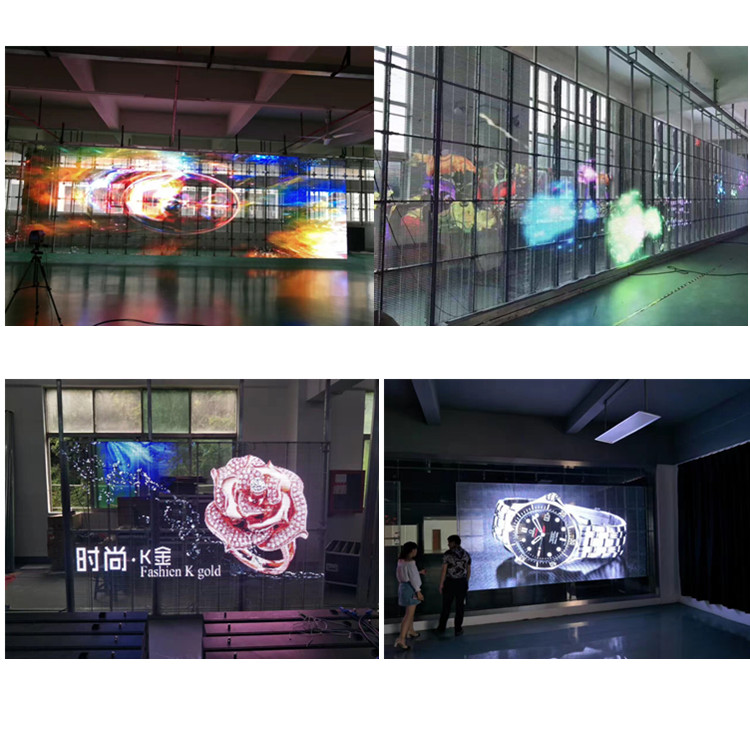

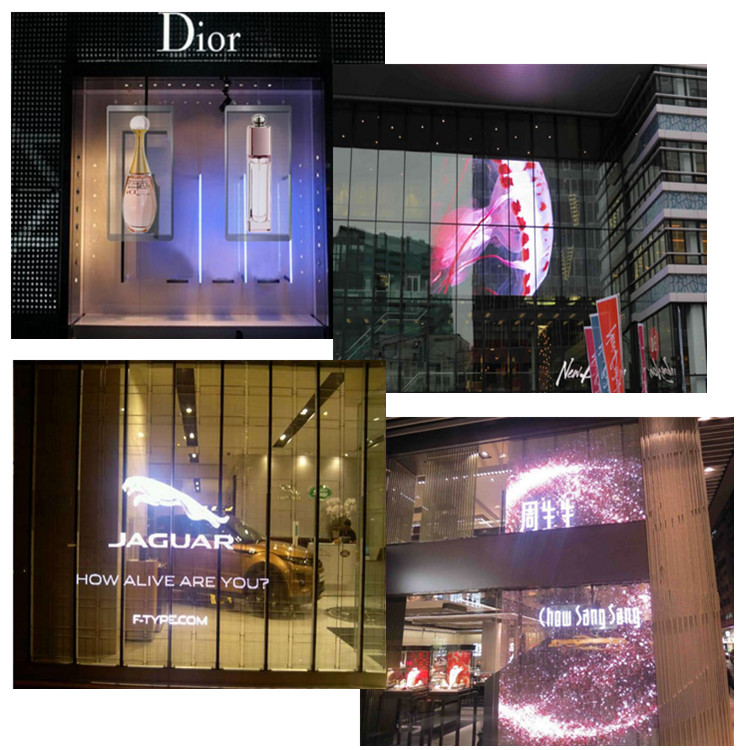

Application Scene
Glass curtain wall gain a good space visual effect indoor, such as in chain store, shopping mall,exhibition center, airport, metro station, automobile 4S shop, jewelry store, bank etc. which brings strong visual impact and sense of hierarchy for LED transparent display.
LED transparent display specifications
Model |
P3.91 |
P3.91 |
P7.81 |
Pixel pitch |
3.91-7.81 |
3.91-7.81 |
7.81-7.81 |
Lamp |
Indoor SMD2121 lamp |
Outdoor SMD1921 lamp |
Outdoor SMD2525 lamp |
Pixel density |
32768 |
32768 |
16384 |
module size |
500mm*500mm /500mm*1000mm/1000mm*1000mm Customized size available |
||
Module material |
Acrylic Aluminum Steel |
Acrylic Aluminum Steel |
Acrylic Aluminum Steel |
Weight |
15KG/sqm |
15KG/sqm |
15KG/sqm |
Transparency |
65% |
65% |
70% |
Brightness |
≥1000nit |
≥4500nit |
≥4500nit |
Refresh rate |
≥1920Hz |
≥1920Hz |
≥1920Hz |
Scan mode |
1/16S |
1/8S |
1/4S |
Max power consumption |
400W/sqm |
400W/sqm |
400W/sqm |
Average power consumption |
150W/sqm |
150W/sqm |
180W/sqm |
