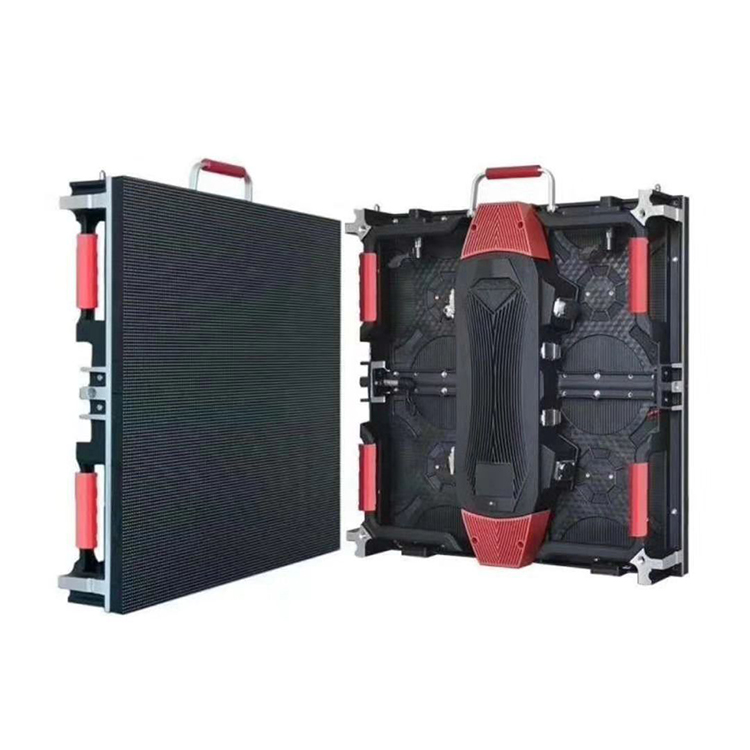

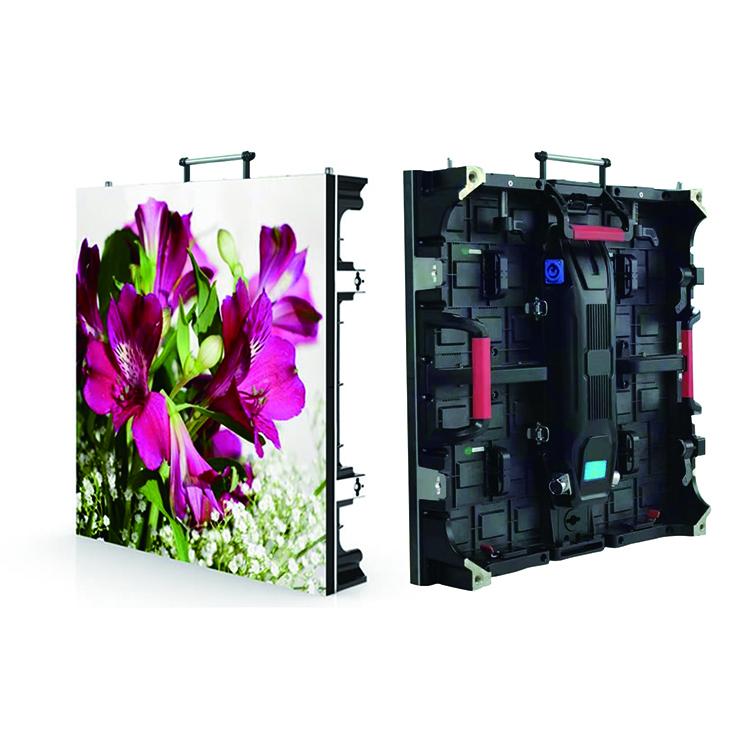

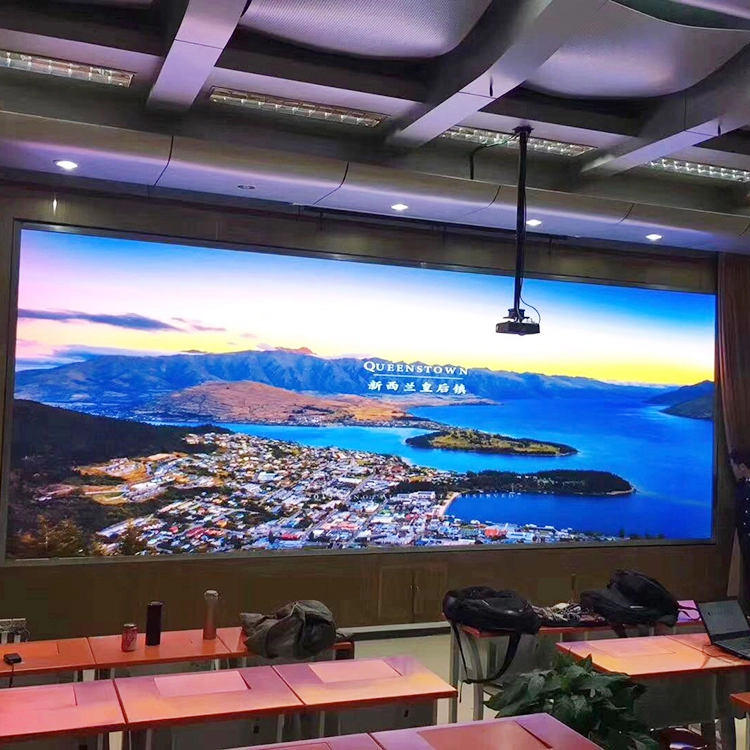

Indoor P2.976 P3.91 P4.81 TV wall mount LED full color display

Low price good quality made indoor PH series led display

High brightness and high refresh

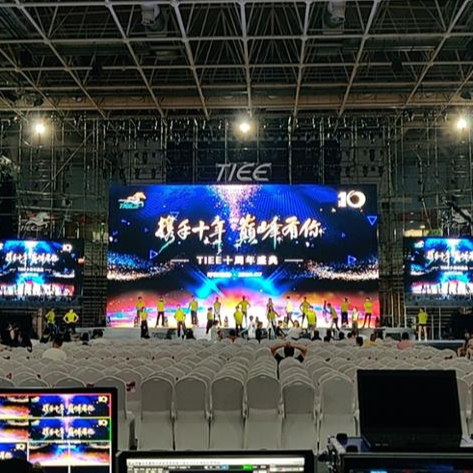

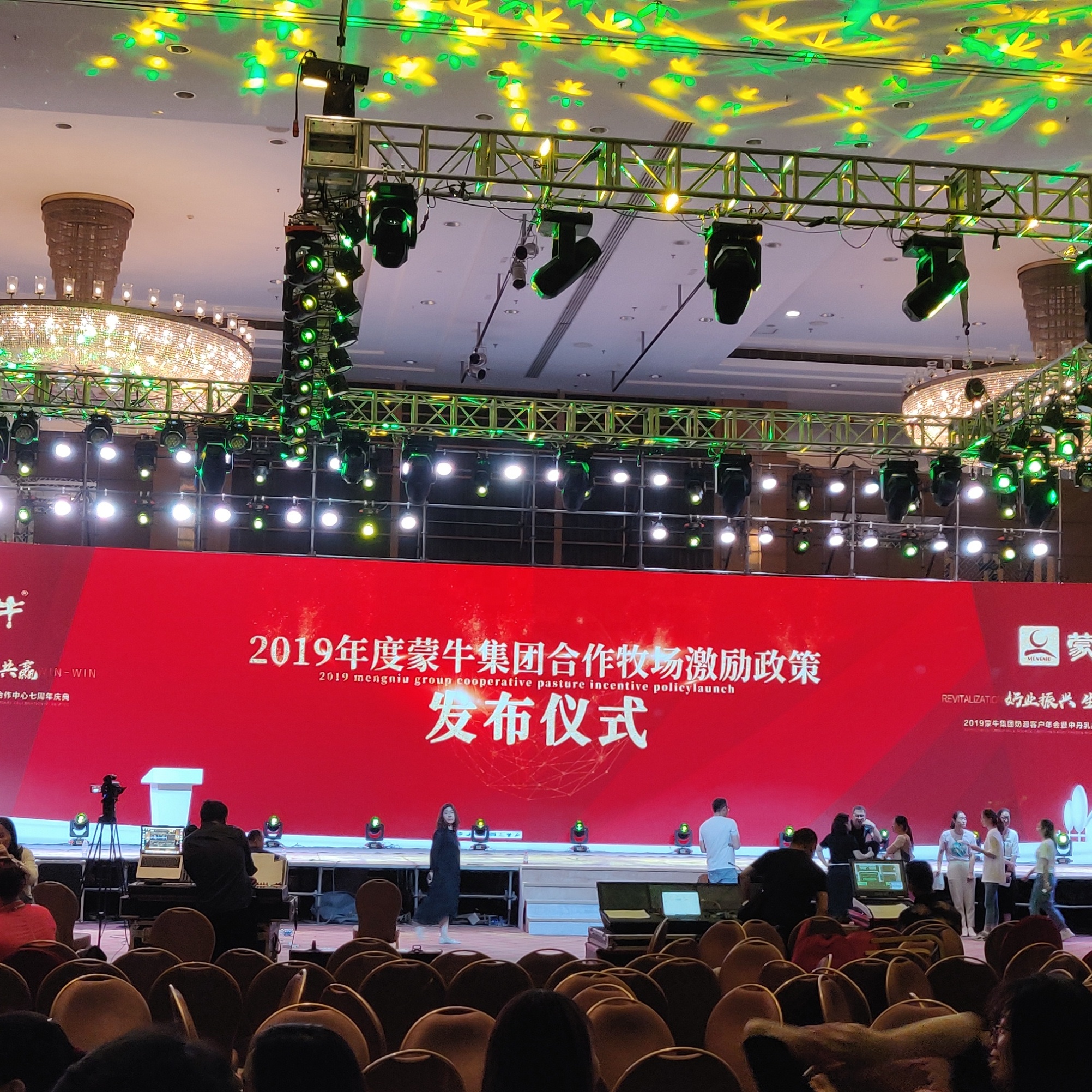

P3.91 rental led display, the pixel pitch is only 3.91mm, even if the viewing distance is close, it will not appear blurred. The refresh rate is more than 1920Hz, the brightness is more than 4500cd /m2, and the best viewing distance is about 4m, which is very suitable for indoor and outdoor stage rental and advertising rental.

High ingress protection

P3.91 rental led screen will often be used for outdoor stage performances, advertising, new product releases, etc. The outdoor environmental conditions are unpredictable, often with heavy rain or even heavy rain, typhoons, etc. Therefore, the protection level of the P3.91 rental led screen should be above IP65, so as to ensure the stability of the product.

Series Parameter
Model	PH2.976	PH3.91	PH4.81
Pixel Pitch(mm)	2.976	3.91	4.81
Physical Density(dot/Square meter)	112896	65536	43264
LED Configuration	1RGB	1RGB	1RGB
LED Type	SMD2121	SMD2121	SMD2121

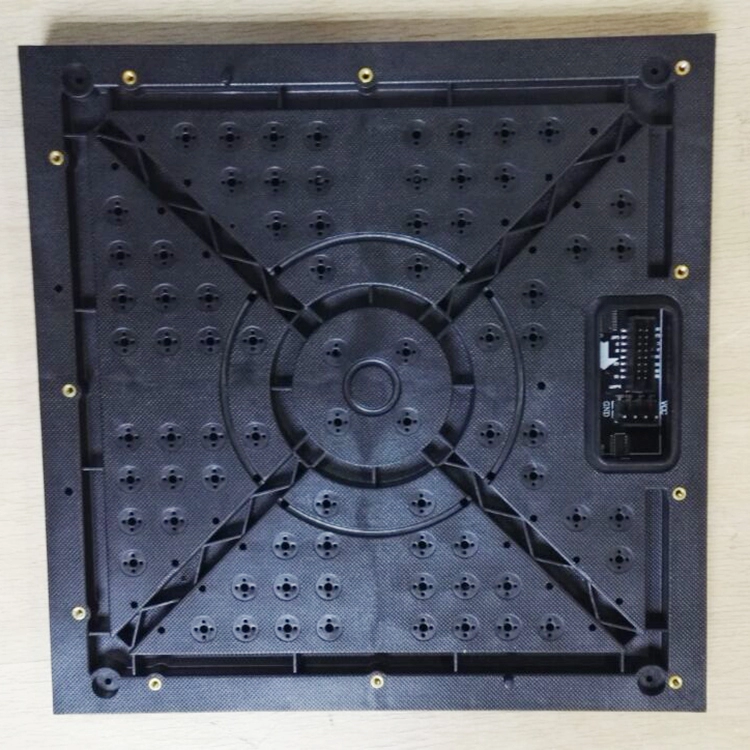

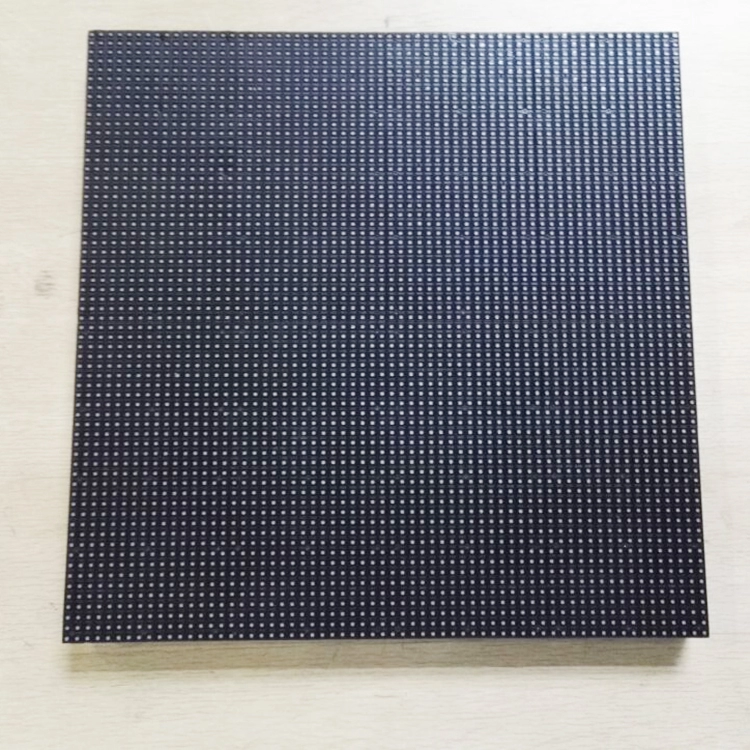

Moduel Size(mmxmm)	250x250	250x250	250x250
Moduel Resolution(PXxPX)	84x84	64x64	52x52
Moduel Power Consumption(w)	35	35	35
Scanning Mode	1/28S	1/16S	1/13S
Horizontal Viewing Angle(Deg)	160	160	160
Vertical Viewing Angle(Deg)	160	160	160
White LED Brightness(cd/Square meter)	600-1500	900-1400	800-1400
Gray Scale	16bit	16bit	16bit
Refresh Rate(HZ)	>3840	>3840	>3840
Cabinet Resolution(PXxPX)	168x168	128x128	104x104
Cabinet Max Power Consumption(w)	140	140	140
Cabinet Average Power Consumption(w)	70	70	70
Cabinet Size(mmxmm)	500x500	500x500	500x500
Cabinet Weight(Kg)	7.5	7.5	7.5
Cabinet Thickness(mm)	95	95	95
Cabinet Material	Die-casting Aluminum
Dirve Mode	Constant Current Drive
Color(M)	>16.7
Input Voltage(V)	AC110V-220V+/-10%
Refresh Frame Frequency(HZ)	50-60
Protection Level	IP25
Working Environment	Indoor
Working Temperatue(℃)	—20℃ 50℃
Storage Humidity(RH)	10%-30%
Life Span (H)	100000

Indoor P2.976 P3.91 P4.81 TV wall mount LED full color display

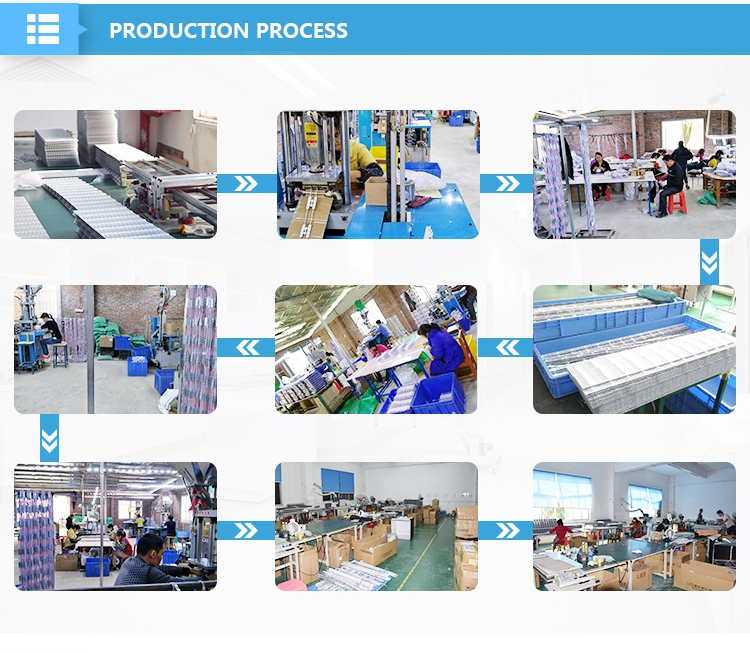

Production Process

Indoor P2.976 P3.91 P4.81 TV wall mount LED full color display

Series Parameter
Model	PH2.976	PH3.91	PH4.81
Pixel Pitch(mm)	2.976	3.91	4.81
Physical Density(dot/Square meter)	112896	65536	43264
LED Configuration	1RGB	1RGB	1RGB
LED Type	SMD2121	SMD2121	SMD2121
Moduel Size(mmxmm)	250x250	250x250	250x250
Moduel Resolution(PXxPX)	84x84	64x64	52x52
Moduel Power Consumption(w)	35	35	35
Scanning Mode	1/28S	1/16S	1/13S
Horizontal Viewing Angle(Deg)	160	160	160
Vertical Viewing Angle(Deg)	160	160	160
White LED Brightness(cd/Square meter)	600-1500	900-1400	800-1400
Gray Scale	16bit	16bit	16bit
Refresh Rate(HZ)	>3840	>3840	>3840
Cabinet Resolution(PXxPX)	168x168	128x128	104x104
Cabinet Max Power Consumption(w)	140	140	140
Cabinet Average Power Consumption(w)	70	70	70
Cabinet Size(mmxmm)	500x500	500x500	500x500
Cabinet Weight(Kg)	7.5	7.5	7.5
Cabinet Thickness(mm)	95	95	95
Cabinet Material	Die-casting Aluminum
Dirve Mode	Constant Current Drive
Color(M)	>16.7
Input Voltage(V)	AC110V-220V+/-10%
Refresh Frame Frequency(HZ)	50-60
Protection Level	IP25
Working Environment	Indoor
Working Temperatue(℃)	—20℃ 50℃
Storage Humidity(RH)	10%-30%
Life Span (H)	100000
