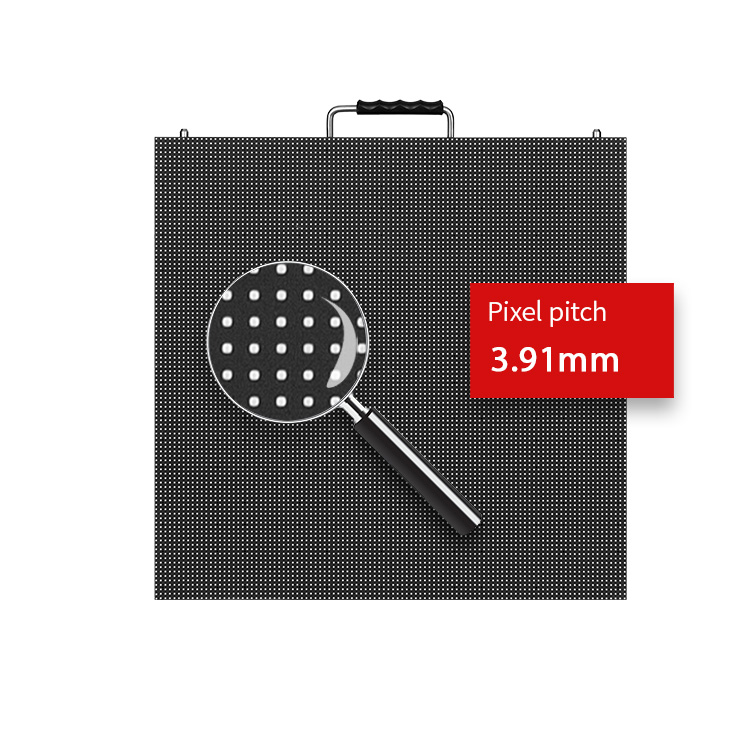

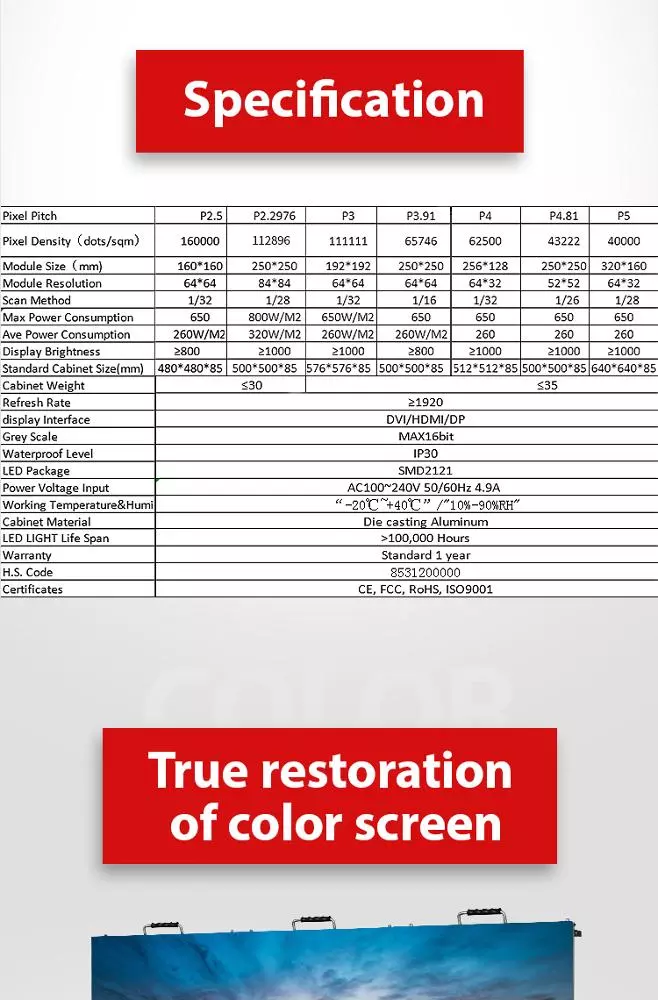

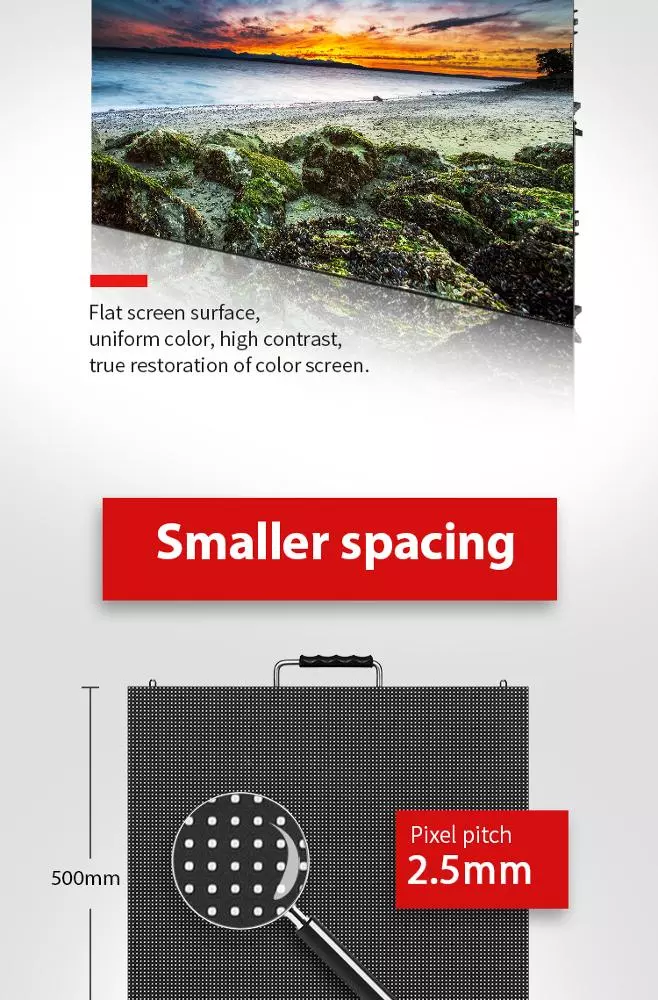

Pixel Pitch | P2.5 | P2.2976 | P3 | P3.91 | P4 | P4.81 | P5 |
Pixel Density (dots/sqm) |
160000 | 112896 | 111111 | 65746 | 62500 | 43222 | 40000 |
Module Size | 160*160 | 250*250 | 192*192 | 250*250 | 256*128 | 250*250 | 320*160 |
Resolution | 64*64 | 84*84 | 64*64 | 64*64 | 64*32 | 52*52 | 64*32 |
Scan Method | 1/32 | 1/28 | 1/32 | 1/16 | 1/32 | 1/26 | 1/28 |
Max Power Consumption |
650W/M2 | 800W/M2 | 650W/M2 | 650W/M2 | 650W/M2 | 650W/M2 | 650W/M2 |
Ave Power Consumption |
260W/M2 | 320W/M2 | 260W/M2 | 260W/M2 | 260W/M2 | 260W/M2 | 260W/M2 |
Brightness | ≥800nites | ≥1000 | ≥1000 | ≥800 | ≥1000 | ≥1000 | ≥1000 |

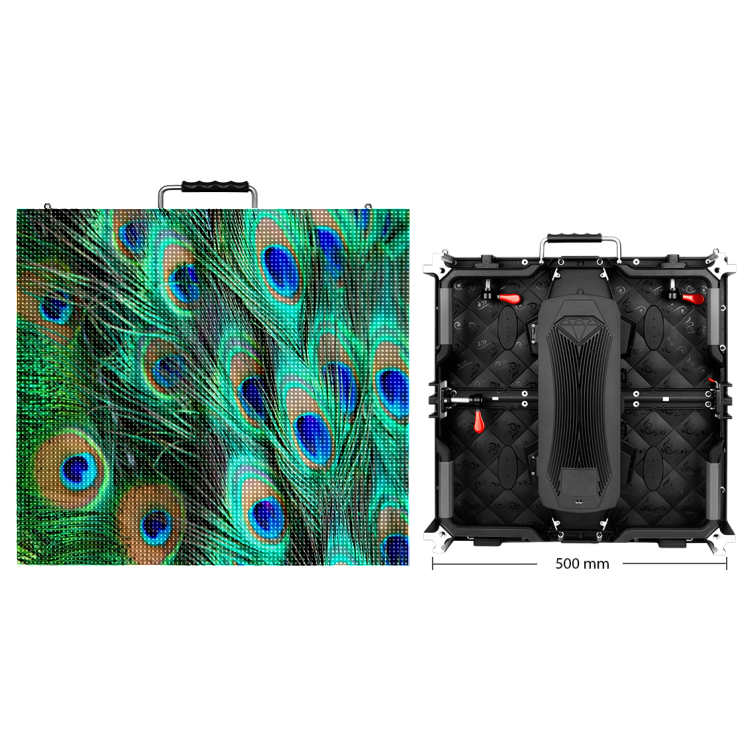

Cabinet Size (mm) |
480*480*85 | 500*500*85 | 576*576*85 | 500*500*85 | 512*512*85 | 500*500*85 | 640*640*85 |
Net Weight | ≤30 | ≤35 | |||||
Refresh Rate |
≥1920 ≥1920 |
||||||
Interface | DVI/HDMI/DP | ||||||
Grey Scale | MAX16bit | ||||||
Waterproof | IP30 | ||||||
LED Package | SMD2121 | ||||||
Power Input |
AC100~240V 50/60Hz 4.9A | ||||||
Working Temperature |
-20℃~+40℃ | ||||||
Working Humidity | 10%-90%RH | ||||||

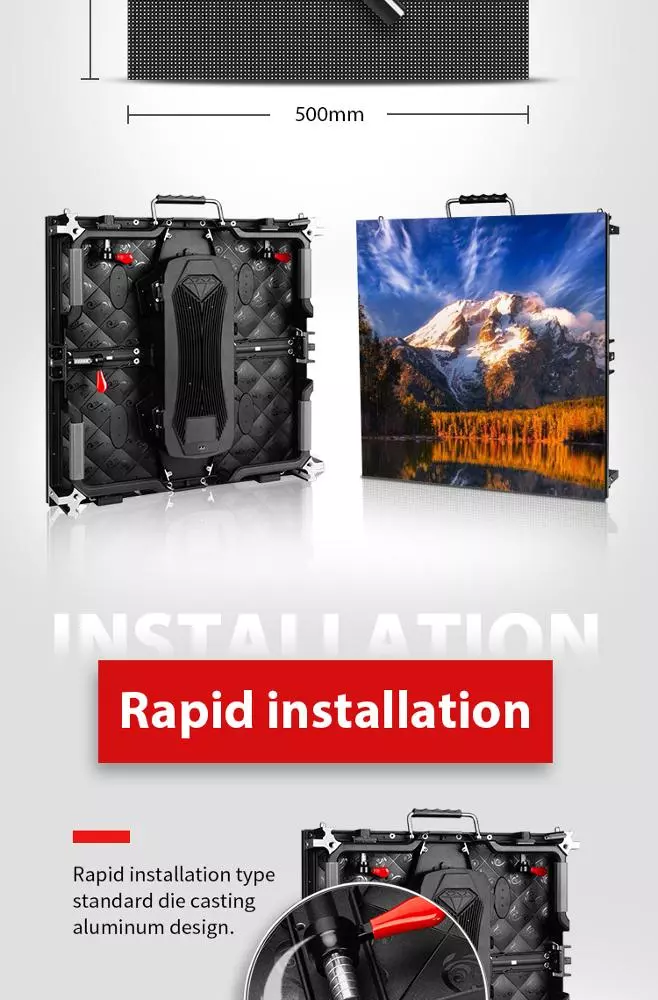

Material | Die casting Aluminum | ||||||
Life Span | >100,000 Hours |
