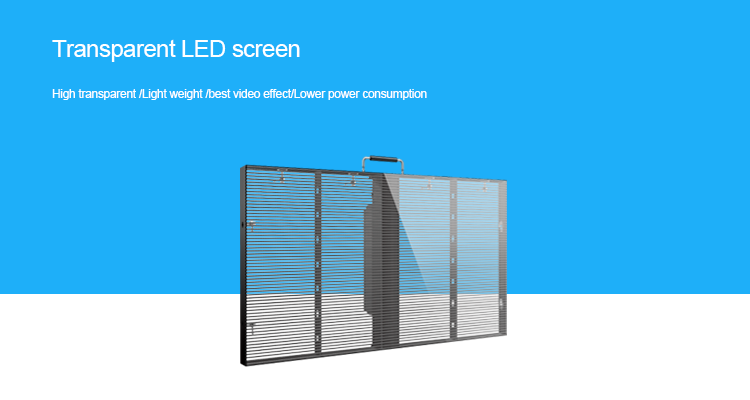

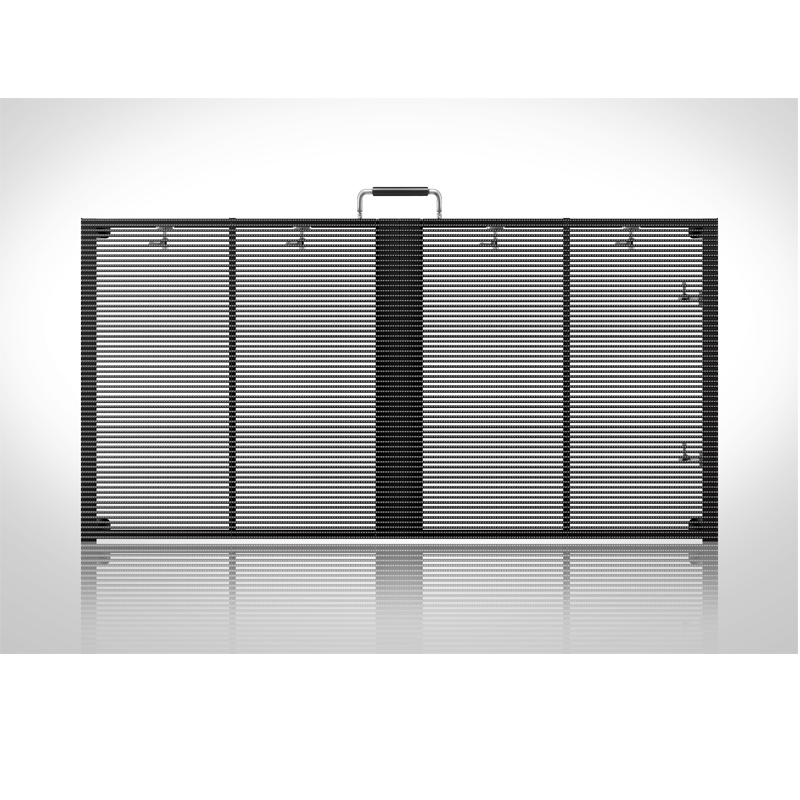

P3.91 HD full color indoor advertising transparent led display

P3.91 HD full color indoor advertising transparent led display screen, window led display

P3.91 HD full color indoor advertising transparent led display

Application & brief introduction

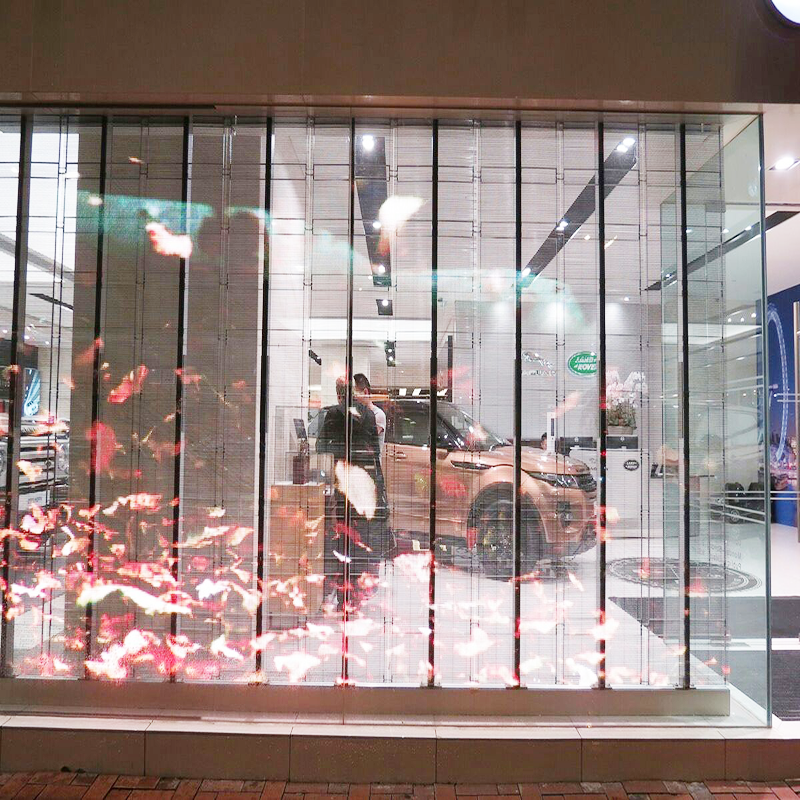

1 Applicable to shopping malls, airports, hotels, cars 4S shop and other occasions fixed installation

2 Standard module size According to the best pixel standard of the project, you can use the standard module size to assemble the corresponding large screen.

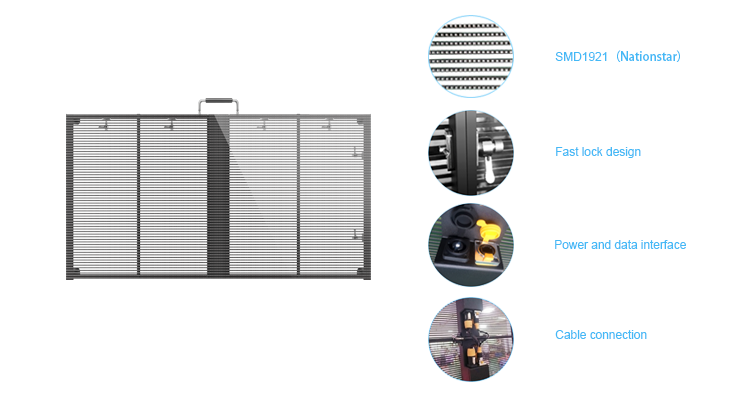

3 Quick and easy installation design, transparent LED display modular design, can quickly and easily fixed on the bracket. When the module is made into a large screen by hand, the vertical bar is very small, improve the transparency, just manual installation, you can easily rely on the bracket to fight together the module.

P3.91 HD full color indoor advertising transparent led display

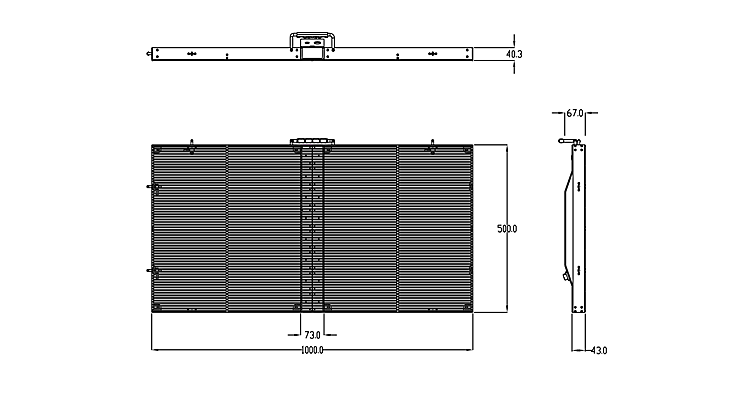

Supportting Cabinet size customization
Above is the satndard cabinet size ,we can offer customized cabinet according to your project information with much low customized cost

P3.91 HD full color indoor advertising transparent led display



P3.91 HD full color indoor advertising transparent led display
Specification
Product name
T-P3.91
Pixel Pitch(mm)W*H
3.9*7.8
Driving Mode
constant current
Pixel Density(dot/m²)
32768
LED type
SMD2525
Cabinet Size(mm)W*H
500*1000
Cabinet Resolution
128*128
Viewing Distance(m)
above 3m
Brightness(full white)(cd/m²)
> 5500
Refresh Rate
>1920HZ
Transparency Rate
>75%
Weight(kg/m²)
<12kg/㎡
Viewing Angle
H:160°V:160°
Max. Power Consumption (W/m²)
800
Avg. Power Consumption (W/m²)
240
Signal Input
HDMI,DVI,VGA,RF,S-Video,RGB,RGBH,YUV,YC&Conposition,etc
Working Voltage
380V±10% AC50HZ
Working Environment
-10℃~+45℃ 10%~80%RH
Life Span Time
≥100000hours
Package
Flight Case/Wooden Case
Application
shopping mall ,supermarket,car shop

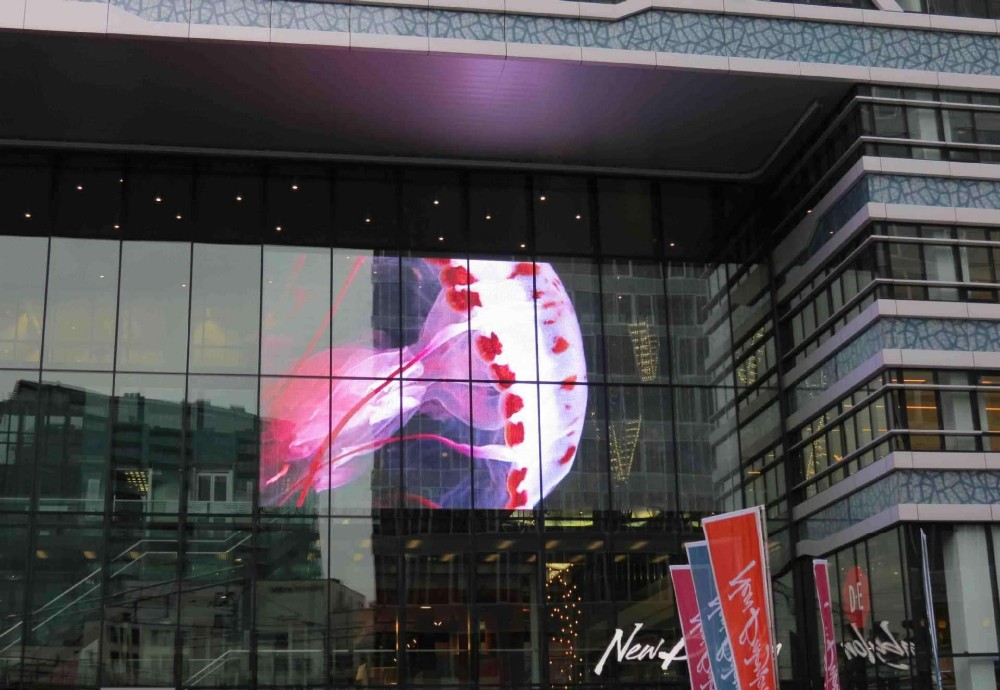

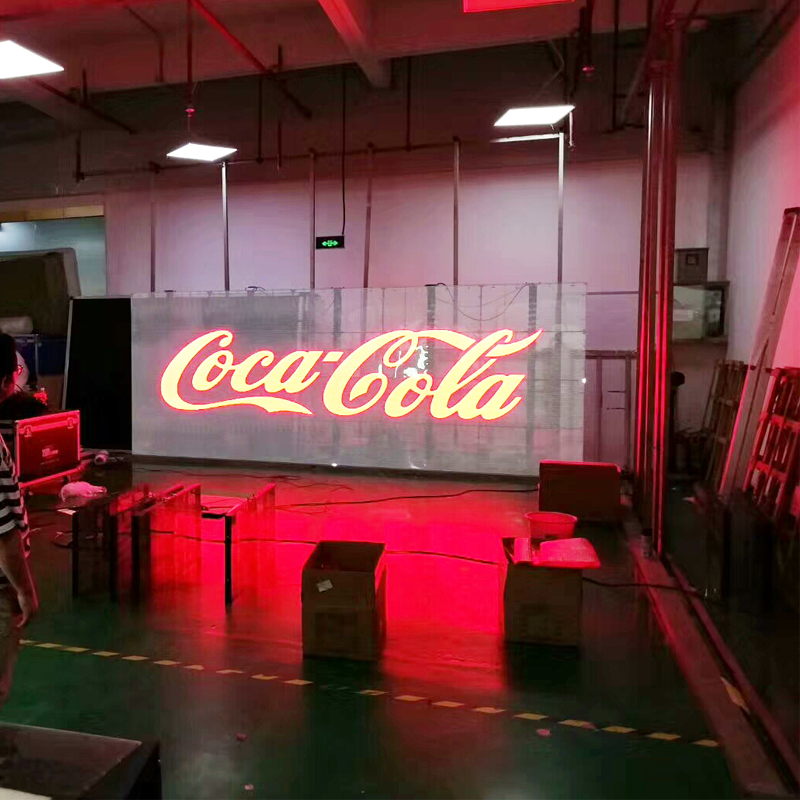

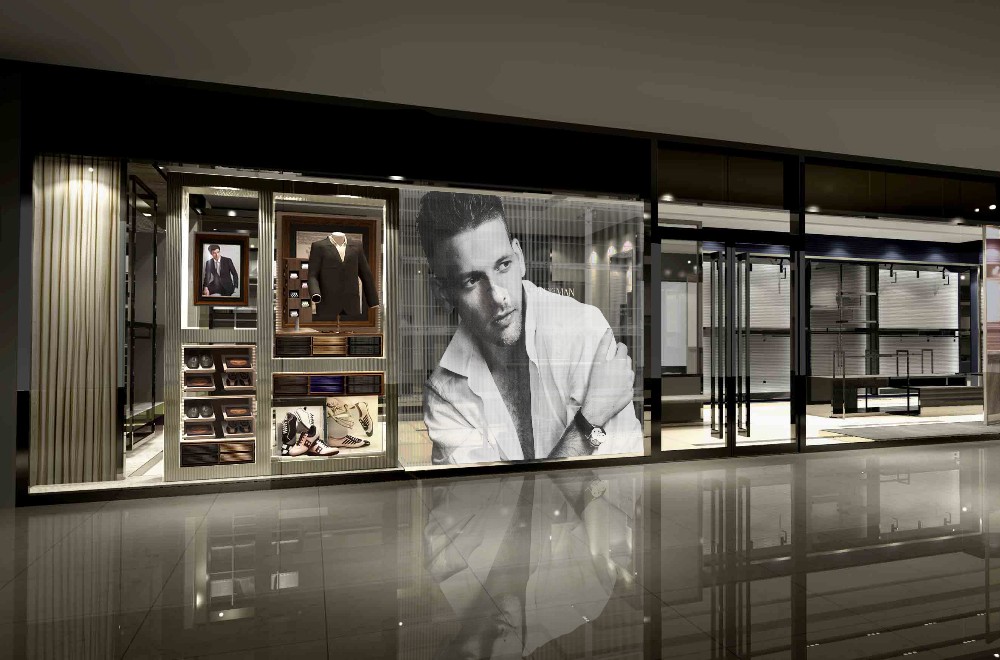

Project case
P3.91 HD full color indoor advertising transparent led display
P3.91 HD full color indoor advertising transparent led display
