Outdoor advertising led display screen is designed and built to withstand adverse weather conditions and provide a truly breathtaking outdoor LED display option you can depend on.

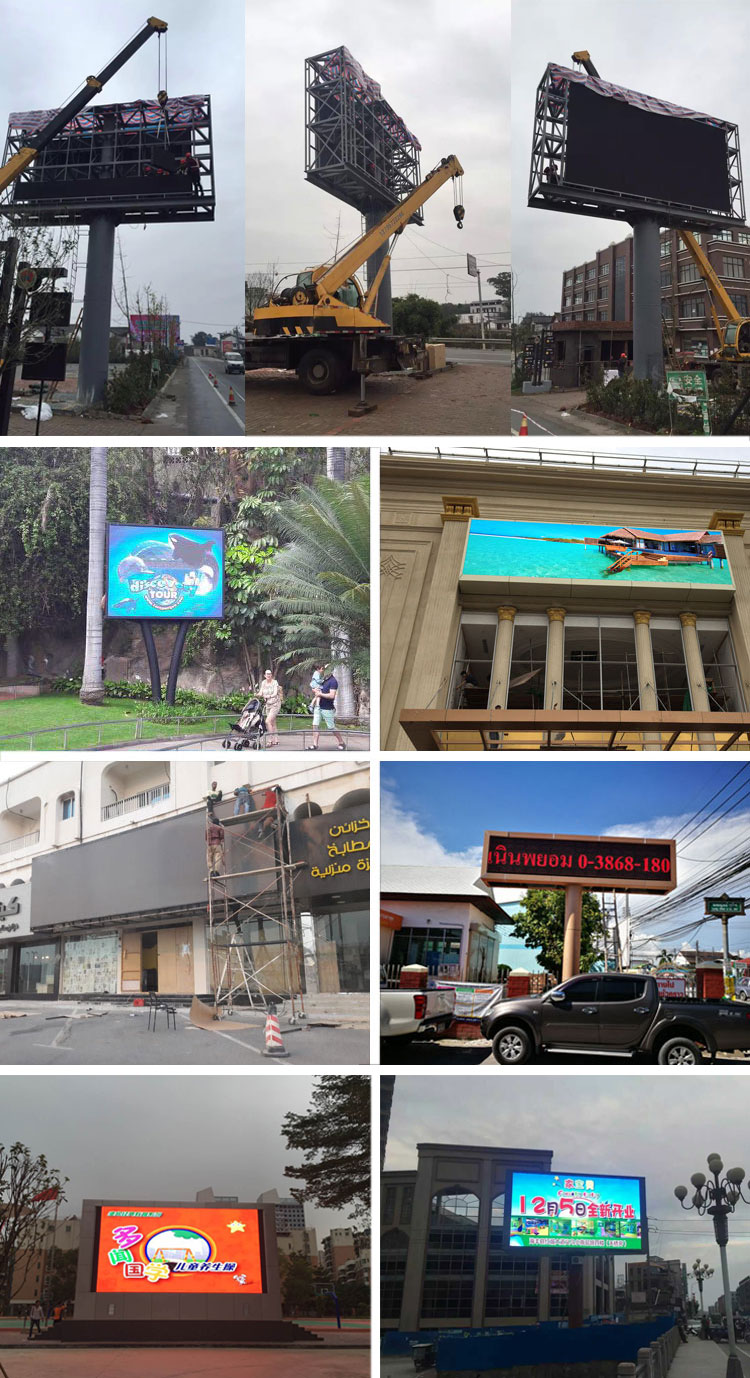

Some Cases of P10 Outdoor Advertising LED Module

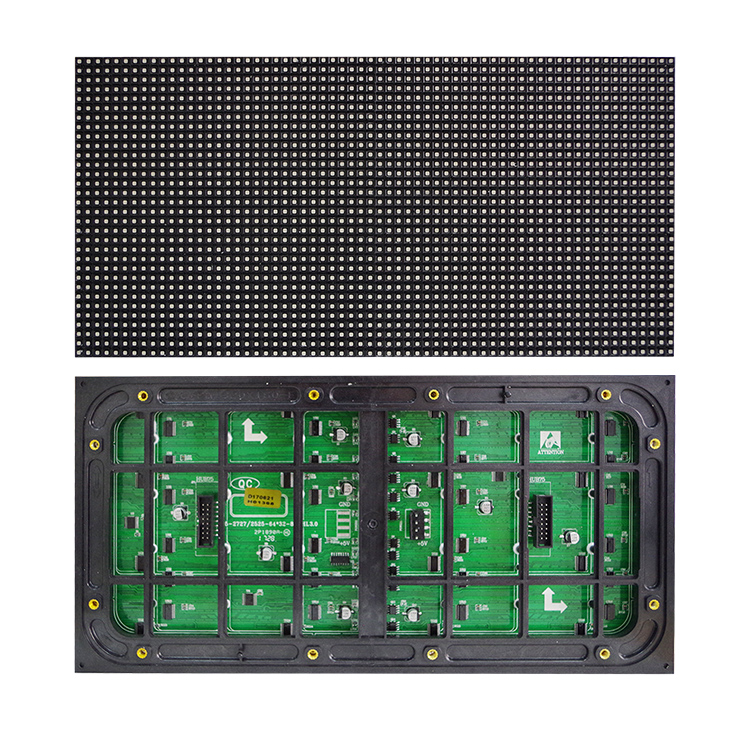

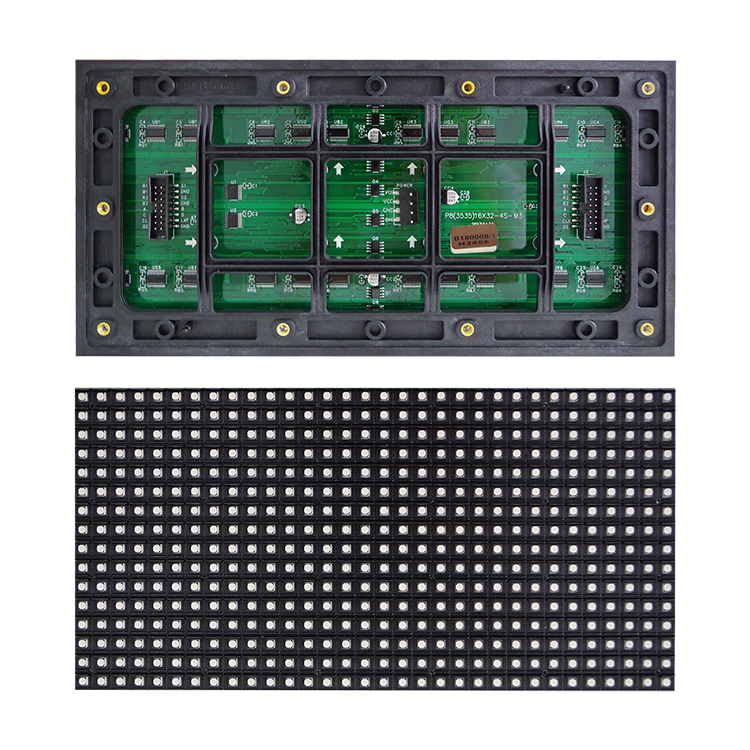

Technical Parameters of P10 Outdoor Advertising LED Module
| Pixel Pitch | 10mm | Pixel Density | 10000 pixels/m² |
| Pixels Per Panel | 32×16 Dots | Module Size | W 320mm×H 160mm |
| Cabinet Size | 960mm*960mm | Cabinet Resolution | 96*96 |
| Scan Mode | 1/2S | LED Type | SMD 3535 |
| LED Configuration | 1Red,1Green,1Blue | Brightness | 6500cd/m² |
| Drive IC | MBI 5124 | Recommended Viewing Distance | ≥10m |
| Environment | Outdoor | Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+80℃ | Gap Between Modules | Seamless |
| Horizontal Viewing Angle | +/-120° | Vertical Viewing Angle | +/-120° |
| Video Frame Rate | 50/60 Hz | Rate Refresh | ≥1920 Hz |
| Color Temperature | 9000±500K | Input Power <Max> | 900W/ panel |
| LED Life Time | ≥100,000 Hours | Acoustic Noise | Fanless operation |
