Product Description

1 LED Specification:

Unit module	Module size	320x160mm
	Pixel pitch	10mm
	Pixel density	10000dots/m2
	Led chips	SMD3535 3 in 1
	Pixel resolution	W:32dots*H:16dots
Cabinet	Dimension	960x960mm
	Best viewing angle	>10 m
	Temperature	Working: -35°C~+85°C
	Thickness	10cm-13cm
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V±10%
	Average power consumption	360-550W
	Max. Power consumption	≤750W/sqm
	Drive type	Constant Current driver IC 1/8scan
	Display type	Video/Graphics/Animation/Message/Text
	Refresh frequency	1920-3840Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	>6500cd/sqm
	Operating ambient humidity	10%--95%
	Life span	≥100,000hours

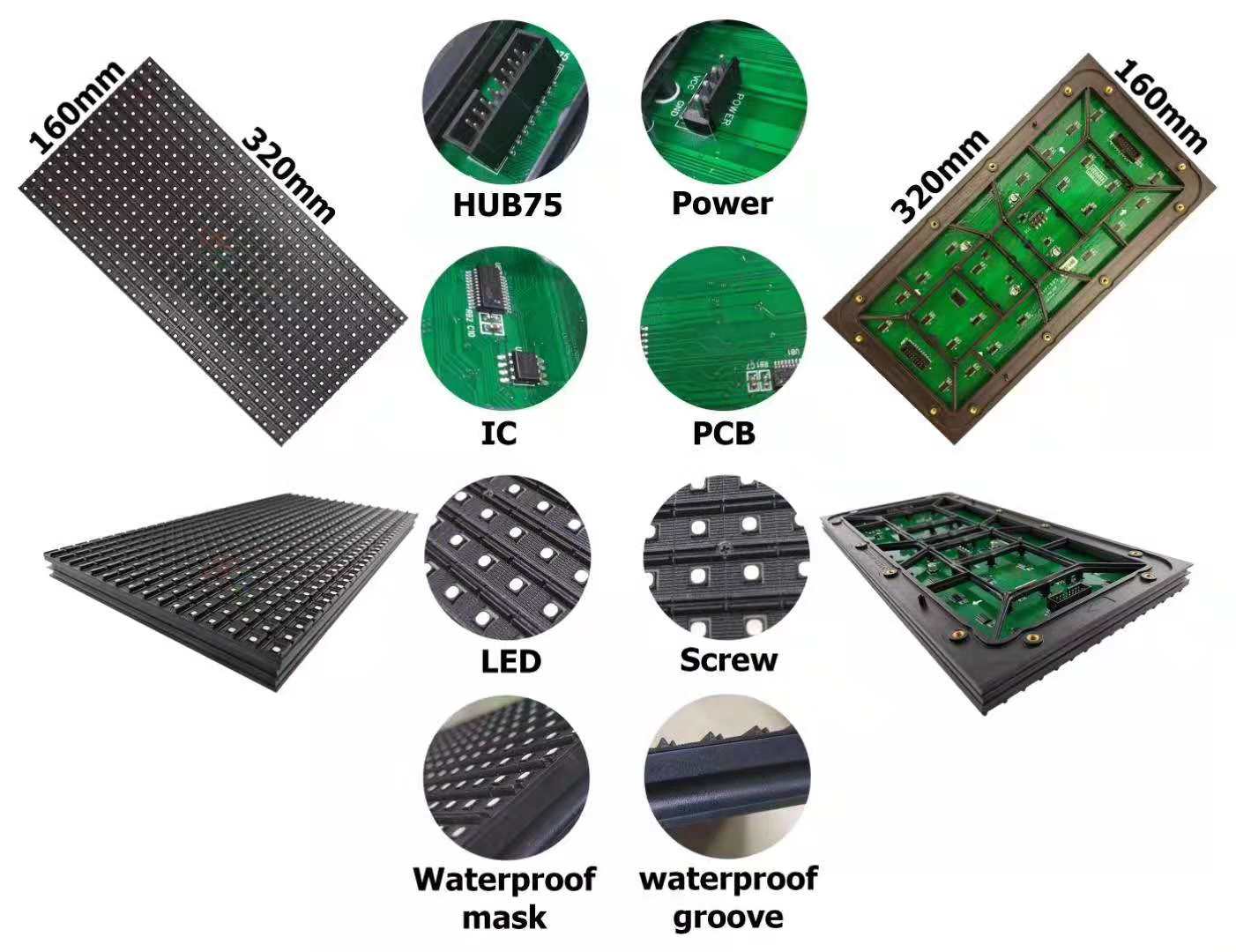

Show Photo Details:

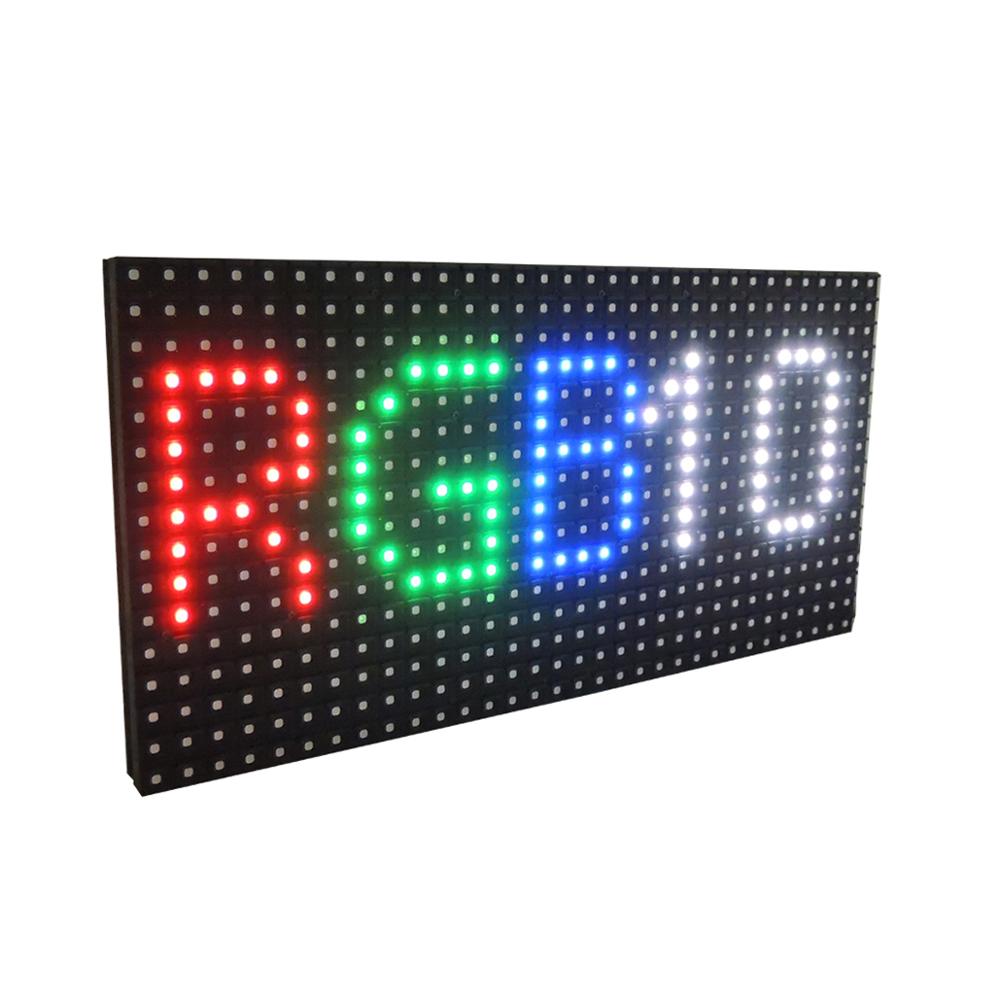

2 RGX high brightness RGB P10 outdoor LED modules

320X160mm LED modules P10 outdoor SMD 3535 LED display board 1 buyer

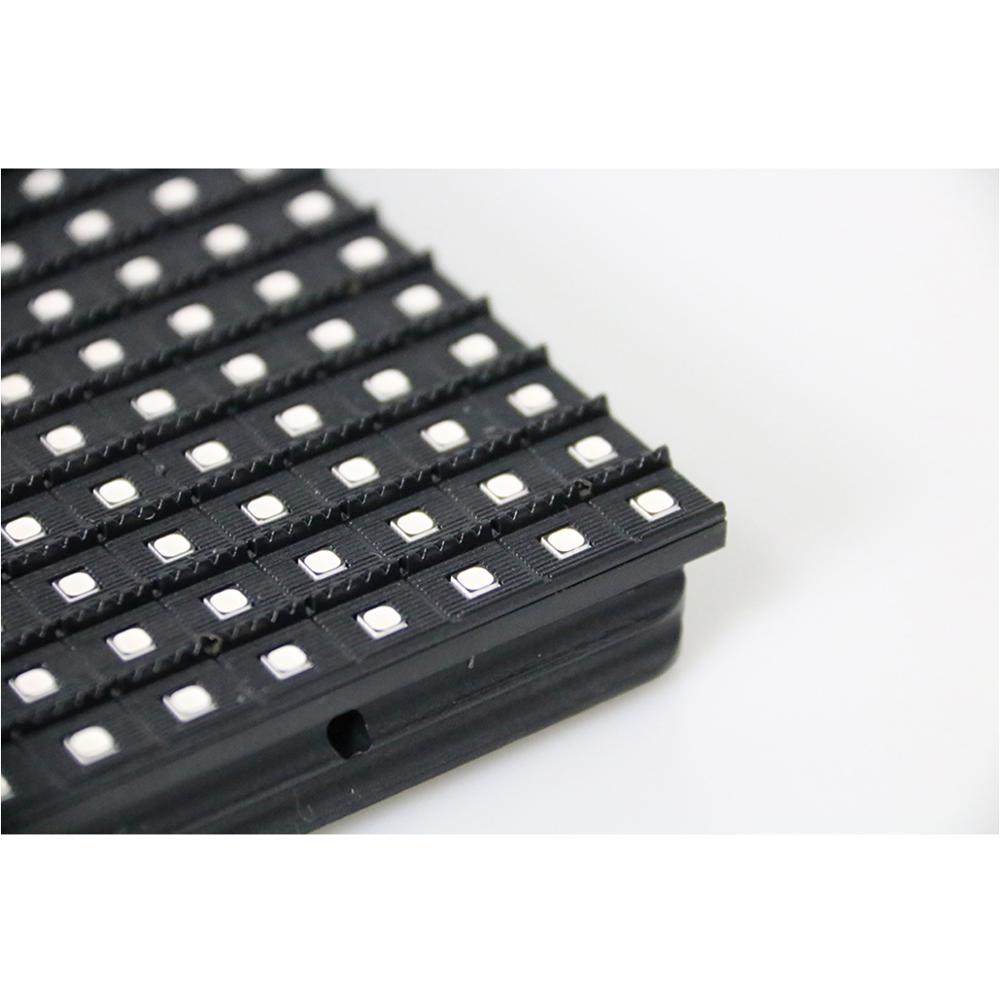

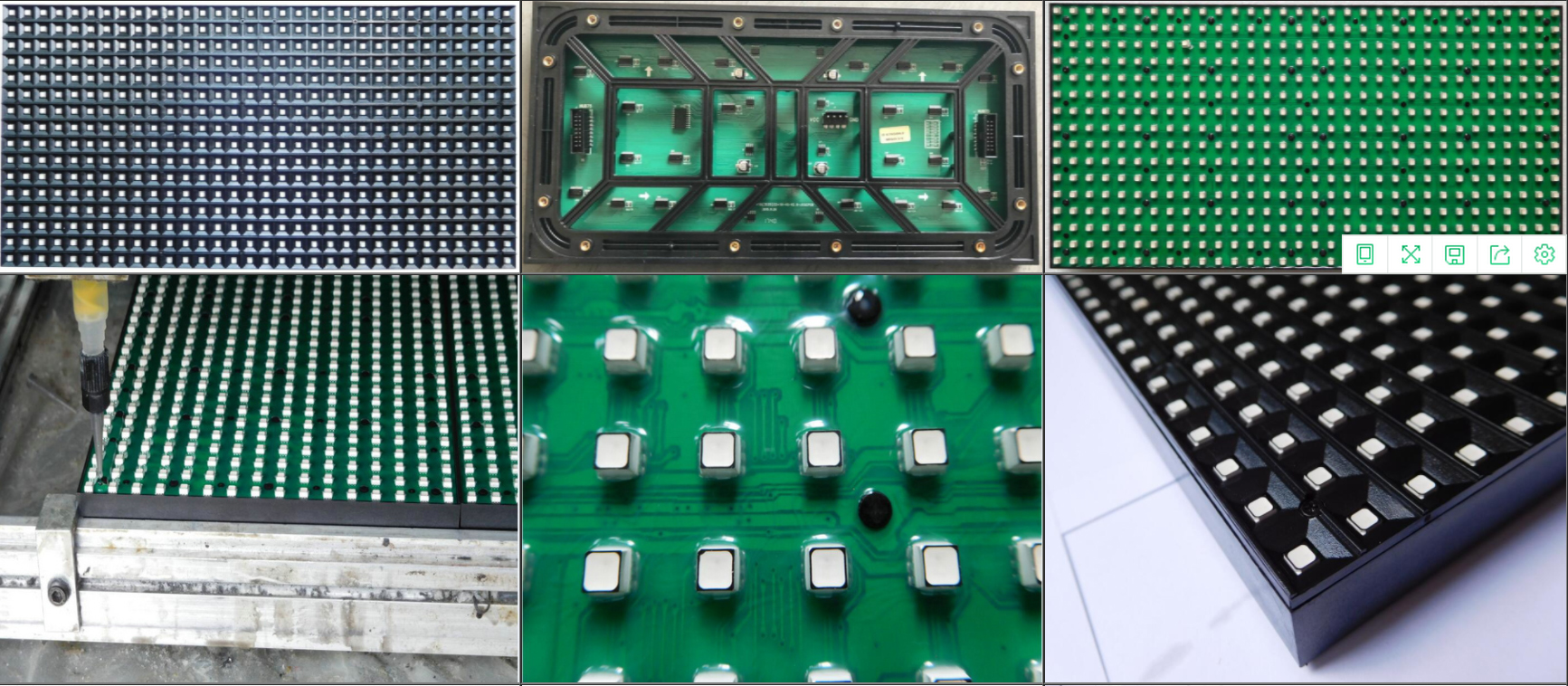

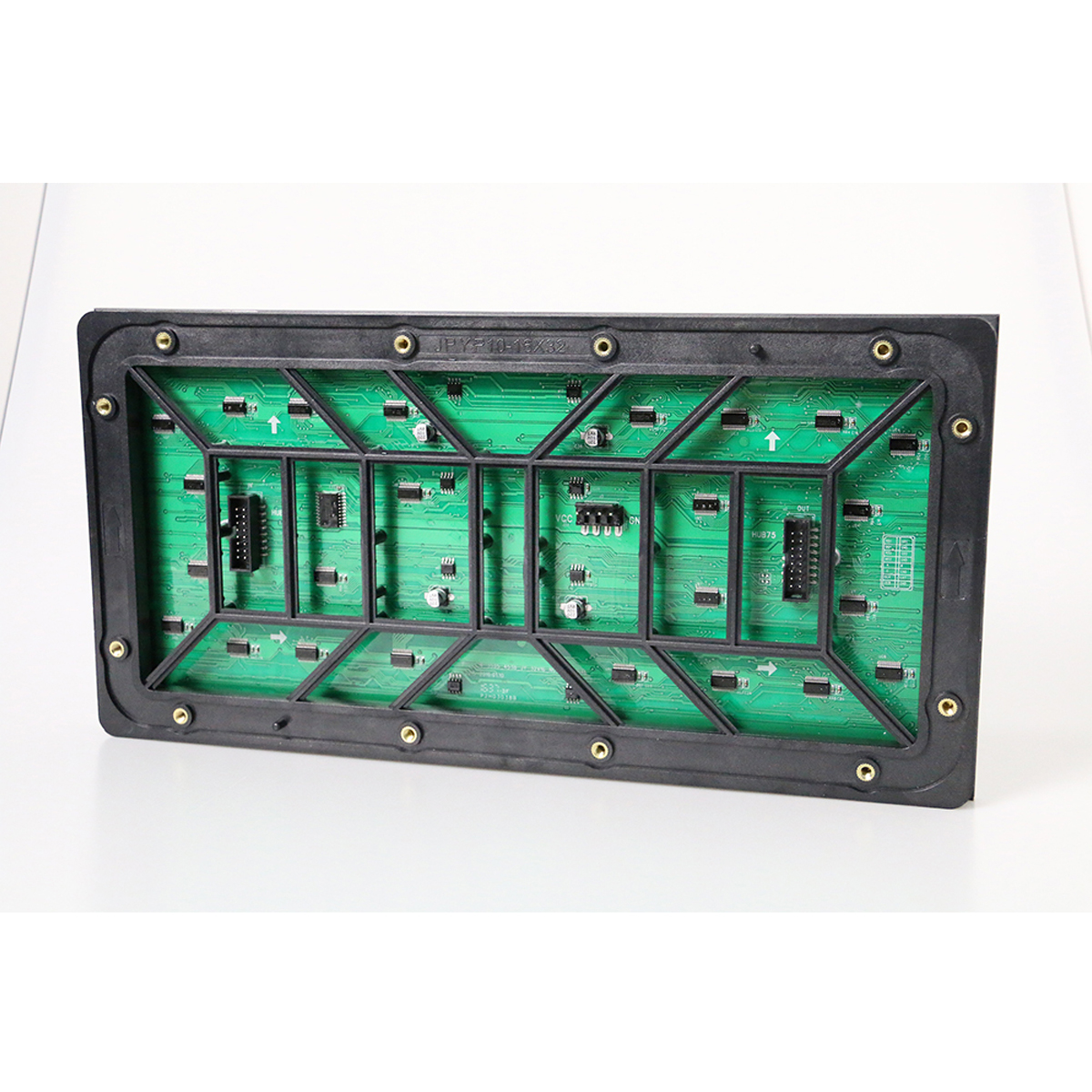

3.SMD3535 with high refresh rate and long lifespan, Double PCB board design with good heat dissipation and low power consumption

320X160mm LED modules P10 outdoor SMD 3535 LED display board 1 buyer

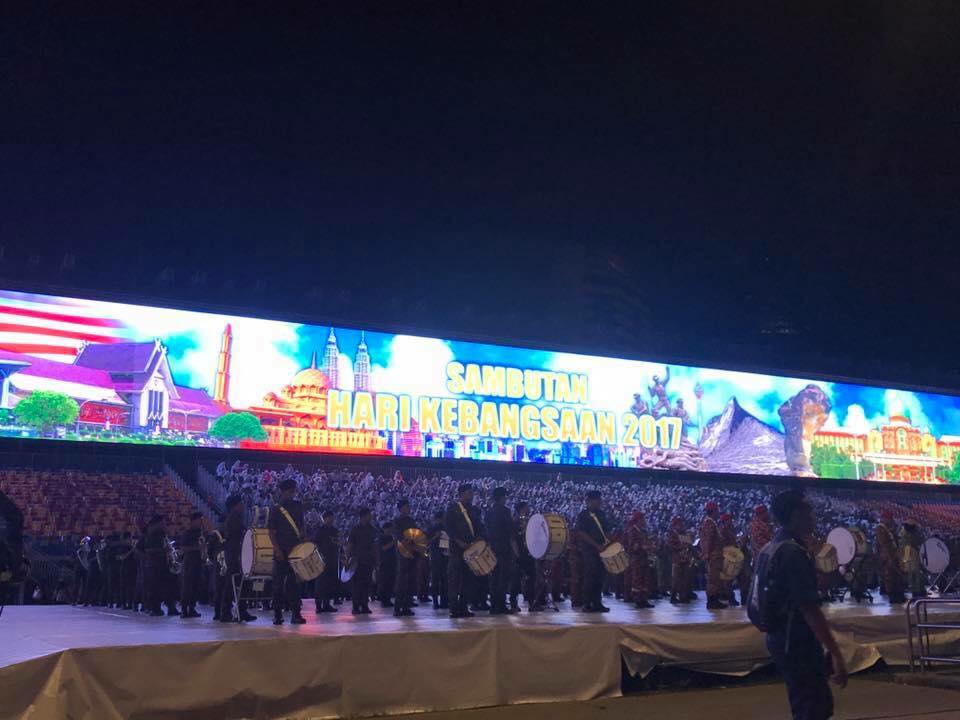

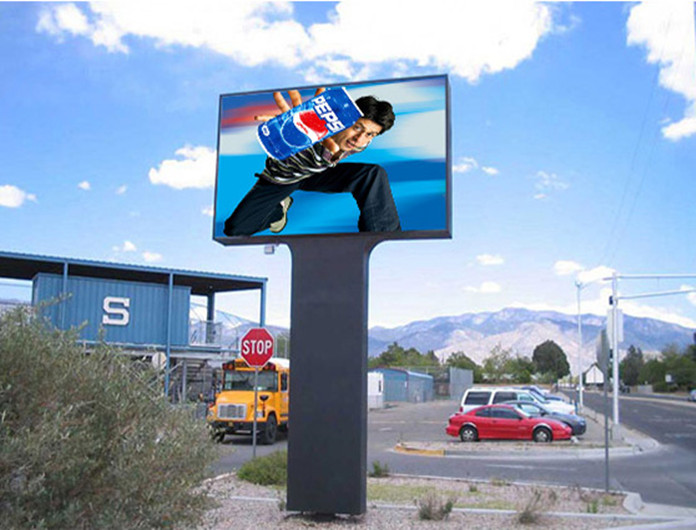

4 Application of 320X160mm LED modules P10 outdoor SMD 3535 LED display board

320X160mm LED modules P10 outdoor SMD 3535 LED display board 1 buyer
