p10 outdoor waterproof led display screen / led outdoor module with soft mask

Application of LED display screen:
LED display, also called led screen, led video wall, led panel ,or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour! LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.
Led display screen now are widely applied in media advertising, transportation, Security, Real estate and Stage show background.

The Features of Stadium led screen

1. High Definition Image

Small physical pitch and 6000nits brightness make high definition and vivid image.

2. High Uniformity & Contast

High quality led lamp and mask for super bright display and high contrast image.

3. High Refresh Rate

1920Hz or 3840Hz refresh rate and constant current the colorful and stable playing effect.

4. Reliable

Over 100,000 working hours for longtime use.

5. Wide Usage

Apply to various sports fields, such as football field, basketball field, tennis field etc.

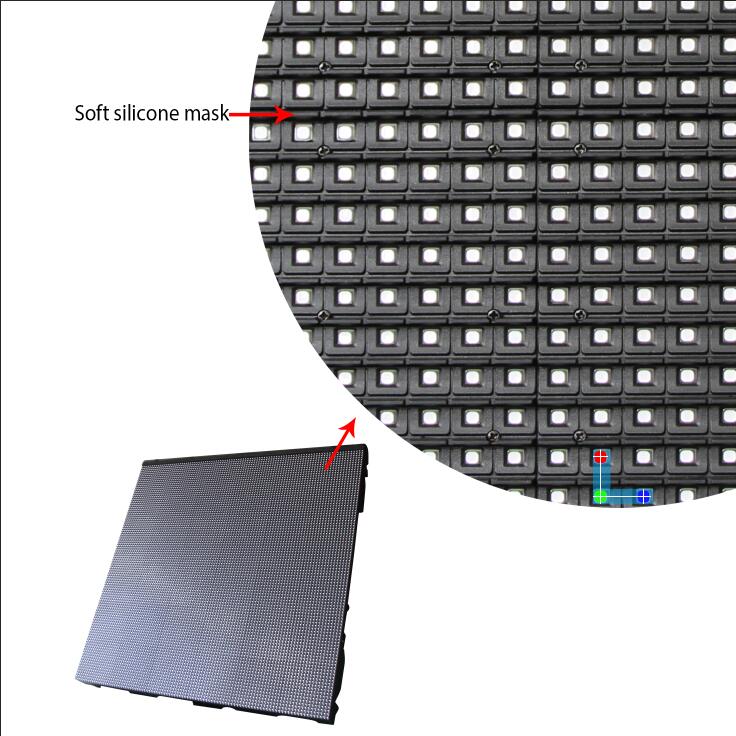

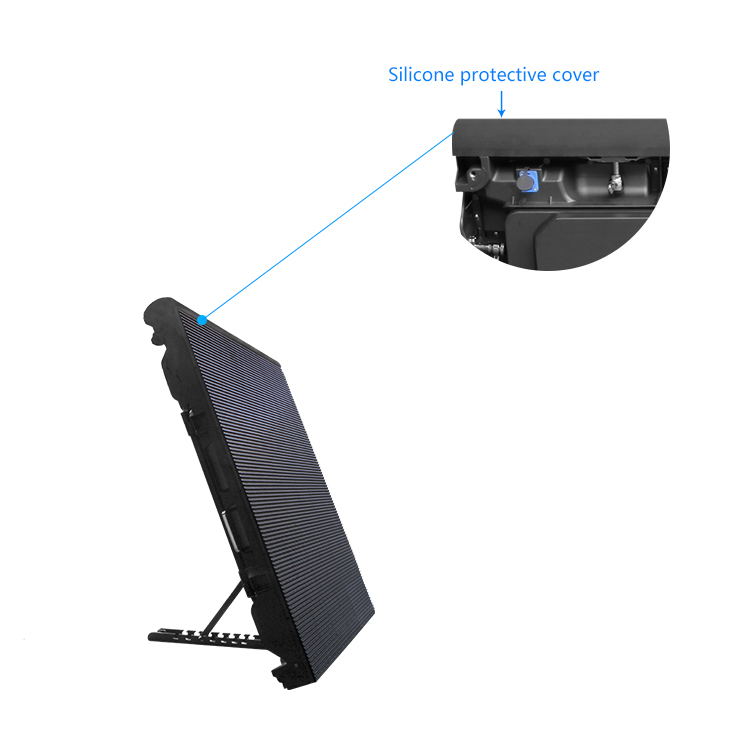

6. Special Mask Design

With a soft module mask, it protects the display more effectively.

Item	Specification
Model	FT-P10
Pixel Pitch(mm)	10 mm
LED Configuration	RGB 3in1
LED Type	SMD3535
Module Resolution(dot/w*h)	32×16
Module Size(mm*mm)	320×160

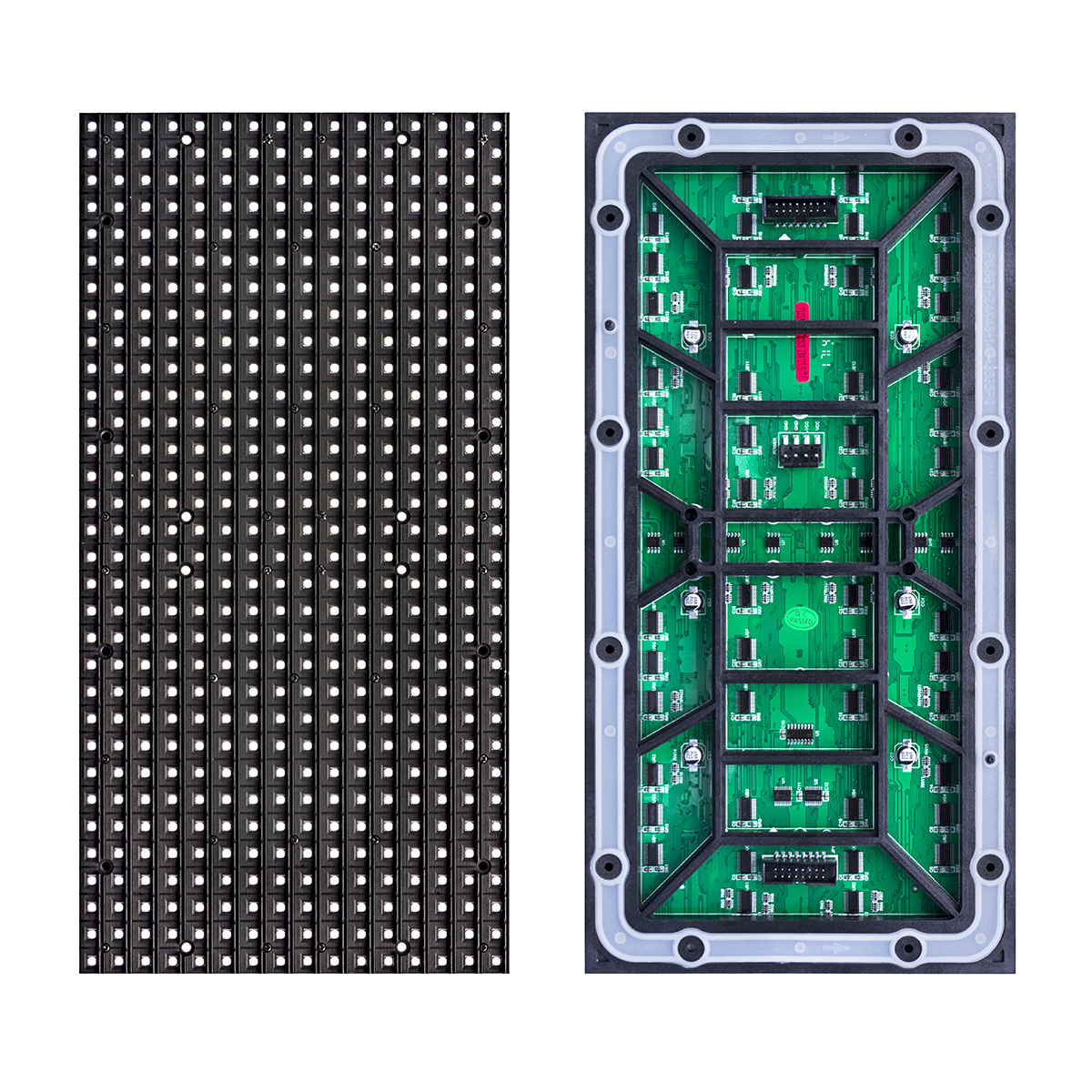

Module Image
Cabinet Size(mm*mm)	960×960
Cabinet Resolution(dot/w*h)	96×96
Grey Scale	14 bit
Brightness(cd/m2)	≥6500
Driver Mode	1/2 scan
Refresh Frequency(Hz)	≥1920
Average Power Consumption(W/m2)	450~600
Max Power Consumption(W/m2)	≤980
Protection	IP65

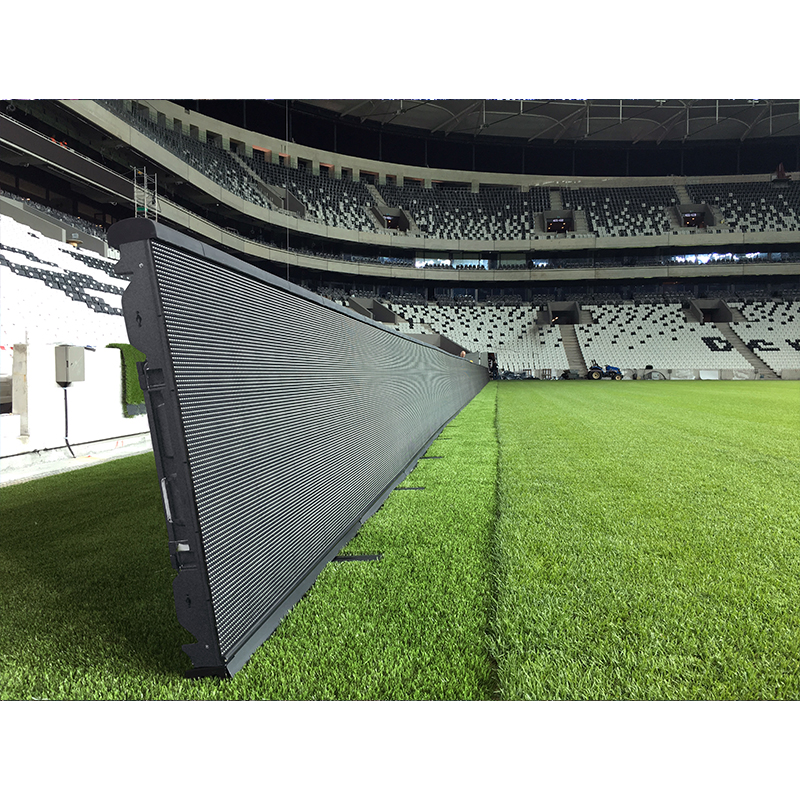

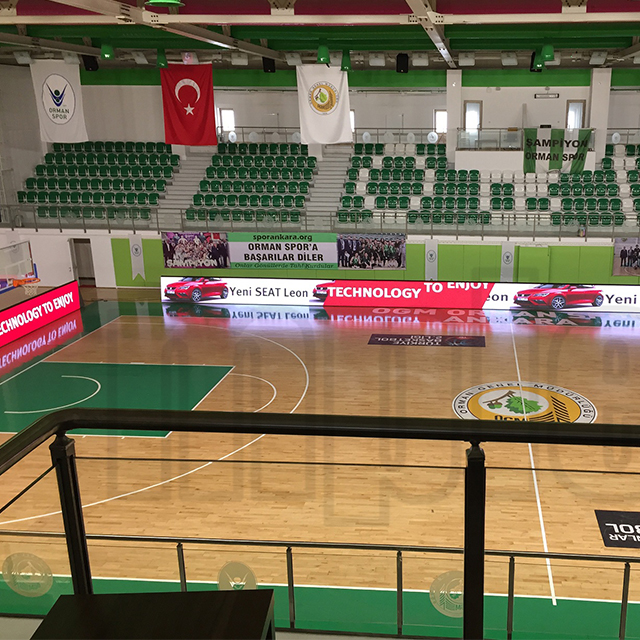

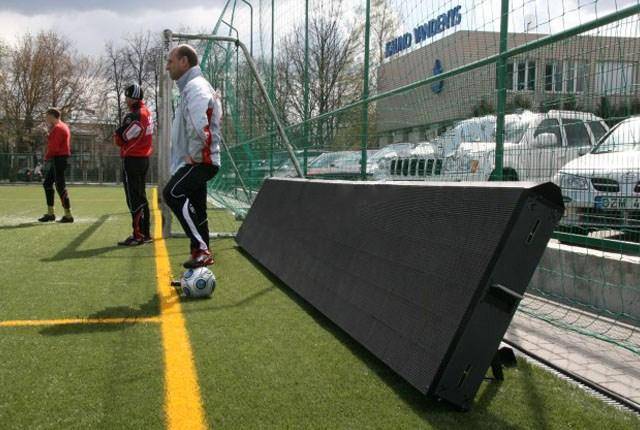

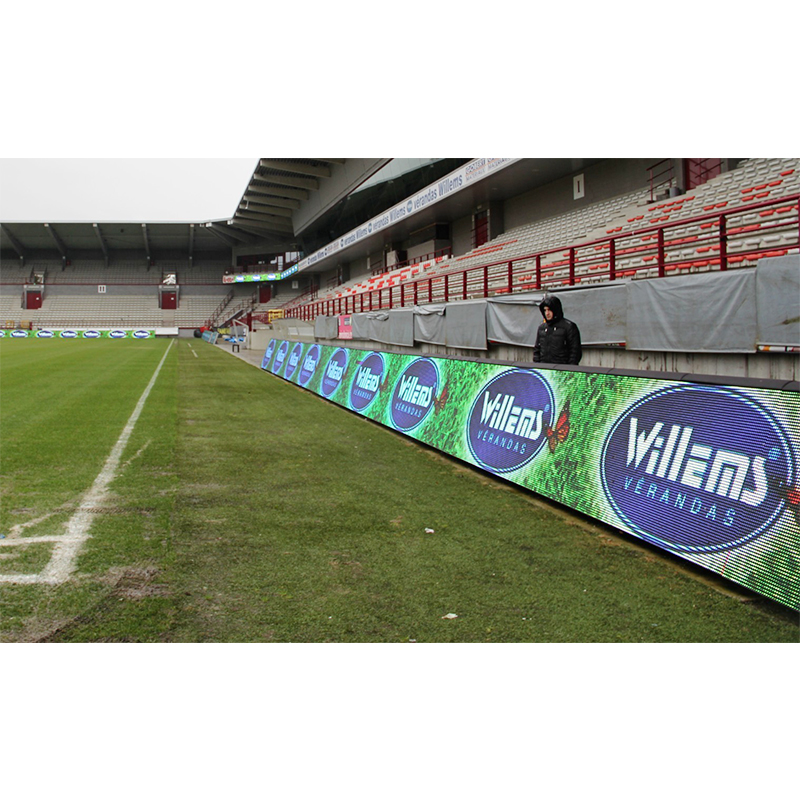

Application of stadium LED display screen

Modern multi-purpose stadium, not only can be used to hold various kinds of sports, but also can be used for all kinds of large-scale cultural activities are held and assembly, etc., so for the screen display content requirements can be summarized as rich, diverse and real-time.

With the development and improvement of LED display technology, LED display has become a necessary supporting facilities for modern sports venues.

p10 outdoor waterproof led display screen / led outdoor module with soft mask

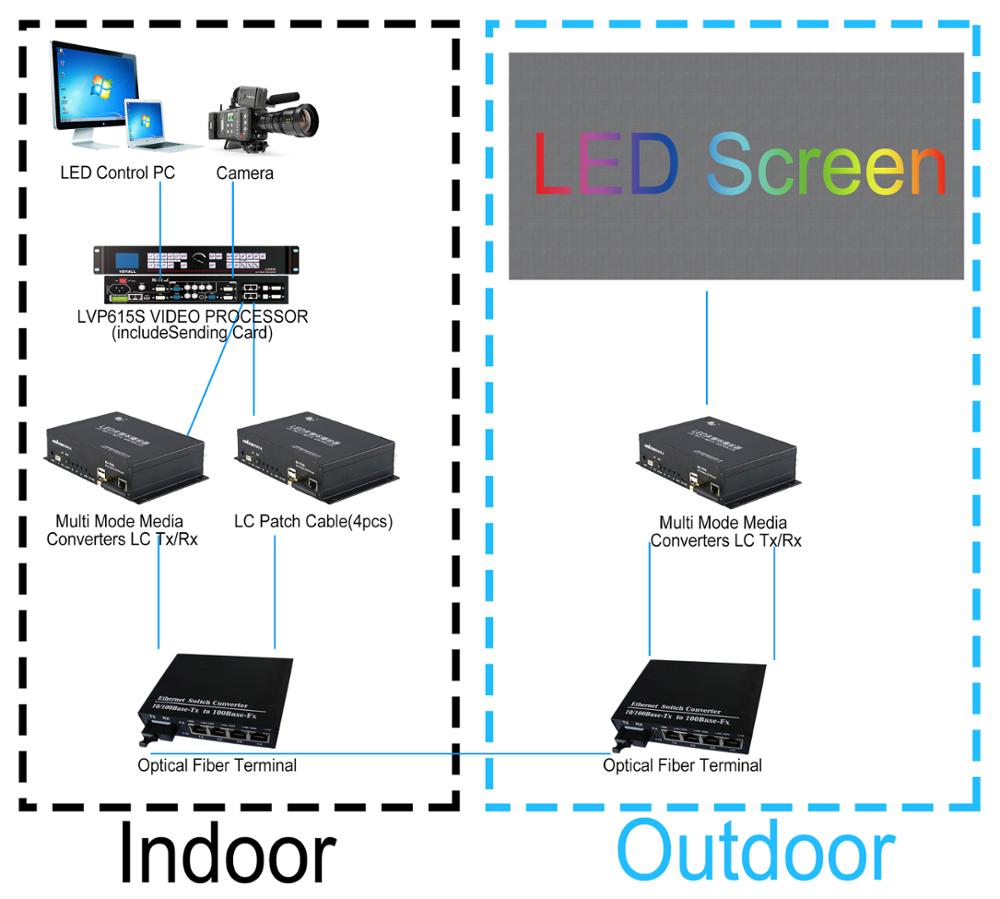

Display Control

1. Connecting the referee system ,time scoring system, the led display can play the game time and the score in real time.

2. The slow motion replay, which is the basis for the referee to make the right decision, maintains the fair and fair of the competition, reduces the unnecessary conflict.

3. Wonderful scene, slow motion replay, close-up lens, bring the perfect visual feast to the audience.

4. Text content displayed can be switched automatically and manually.

5.Commercial advertising plays on the icing on the cake, perfect quality and sound effects, making the scene more competitive and shocking.

6. Introduced the player data competition, the real situation. The super-clear game live screen, broke the seat limit, lets the distance to watch the game is more easy.
