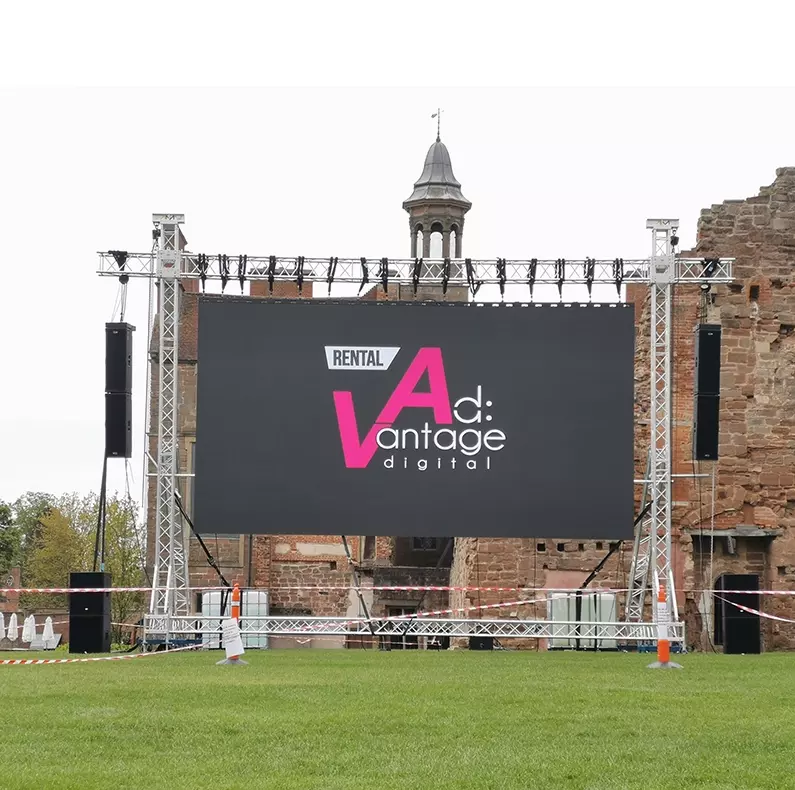

	outdoor p4 p5 p6 p8 p10  led wall waterproof LED module  p4 p5 p6 p8 p10 poutdoor rental stage ultra slim led screen for concert

With the light cabinet and good material , installation easily .
Warranty for 3 years . no dad lamp and long time working hours .

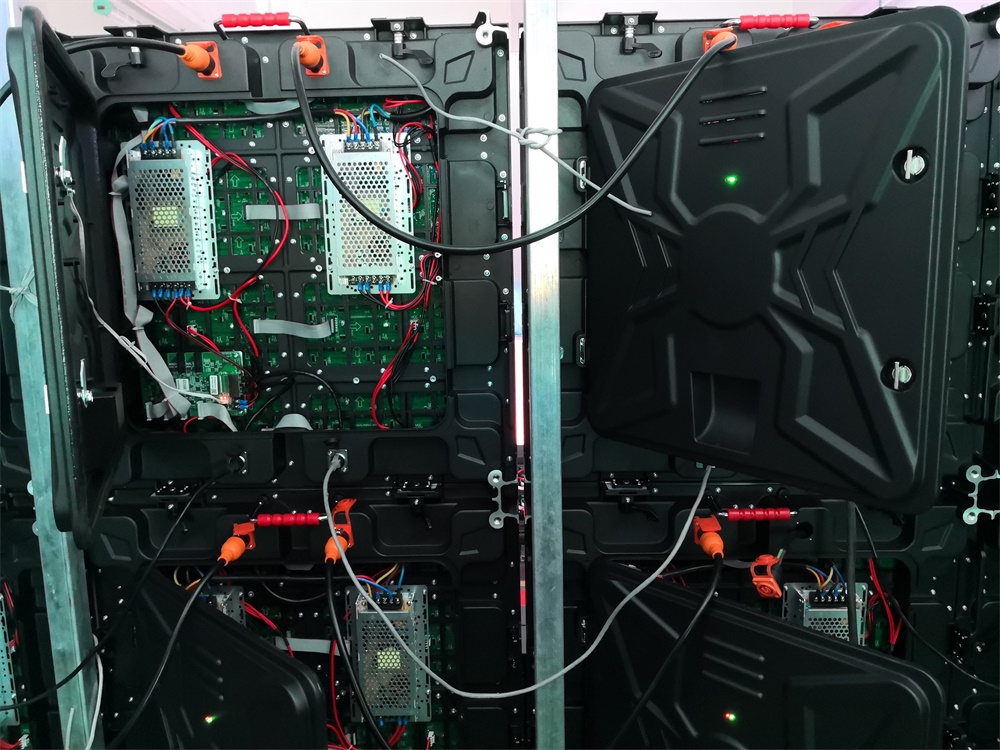

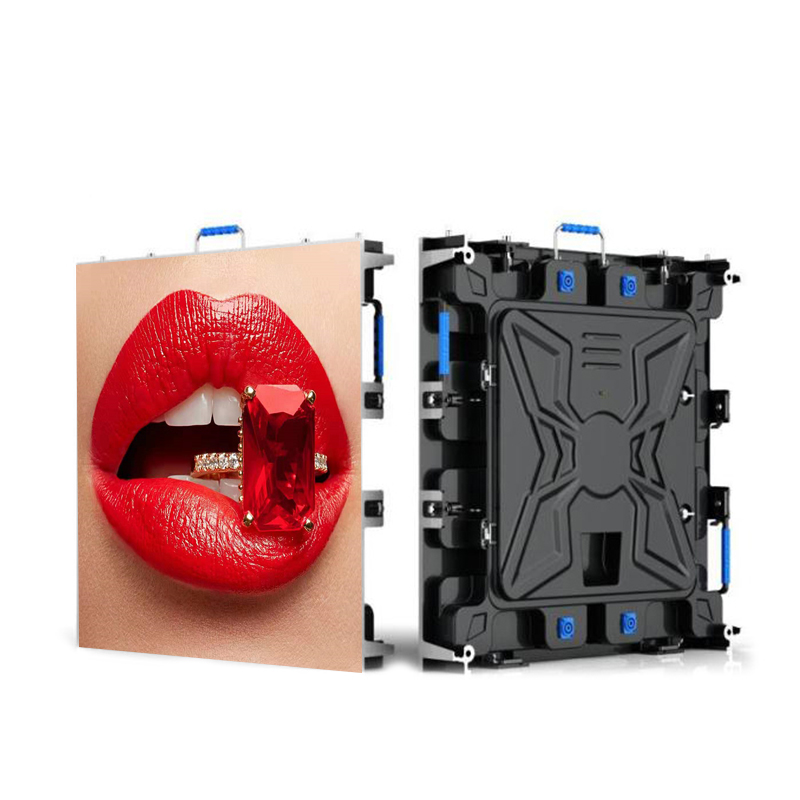

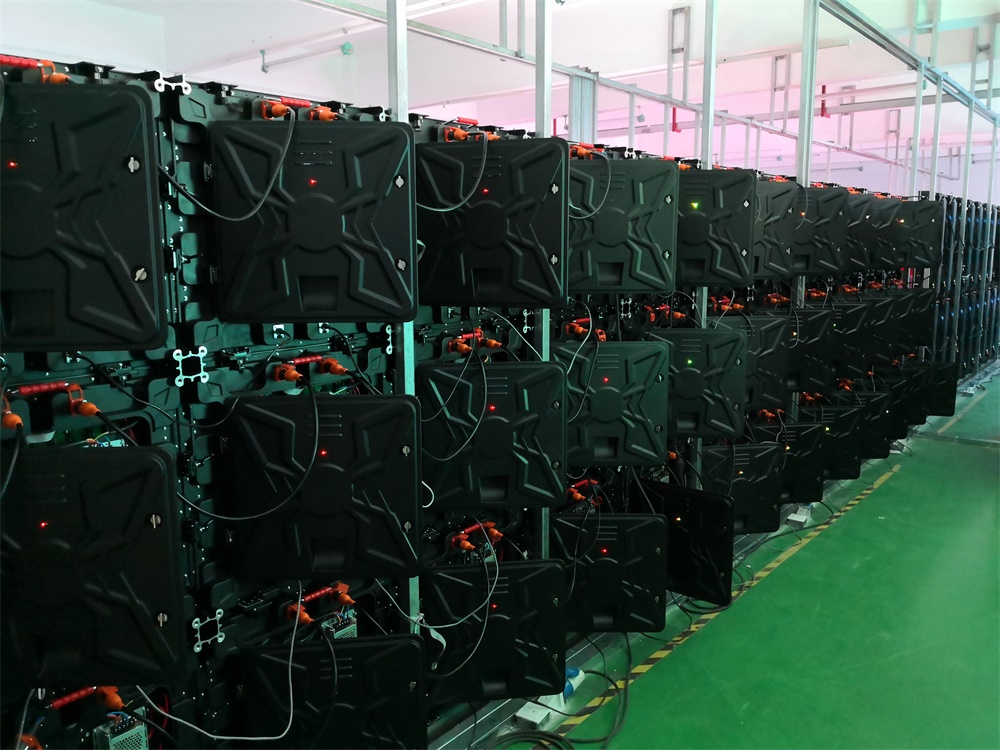

Outdoor 640*640mm Led display cabinet
Model number	P4	P5	p6.67	p8	p10
Pixel pitch	4mm	5mm	6.67mm	8mm	10mm
Module resolution	80*40	64*32	48*24	40*20	32*16

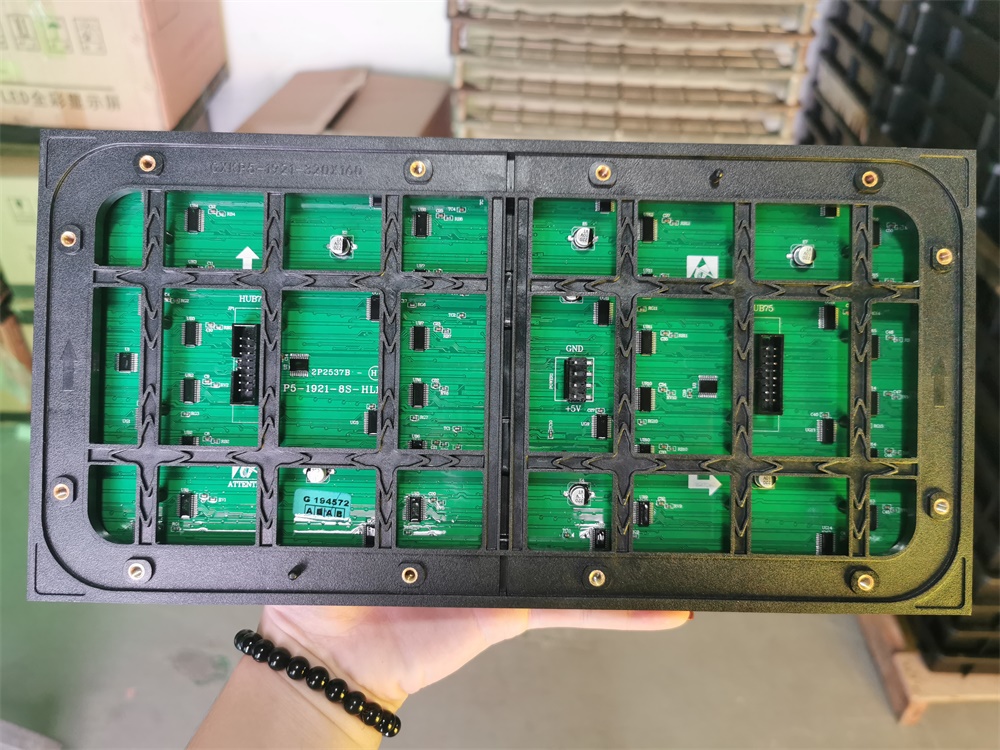

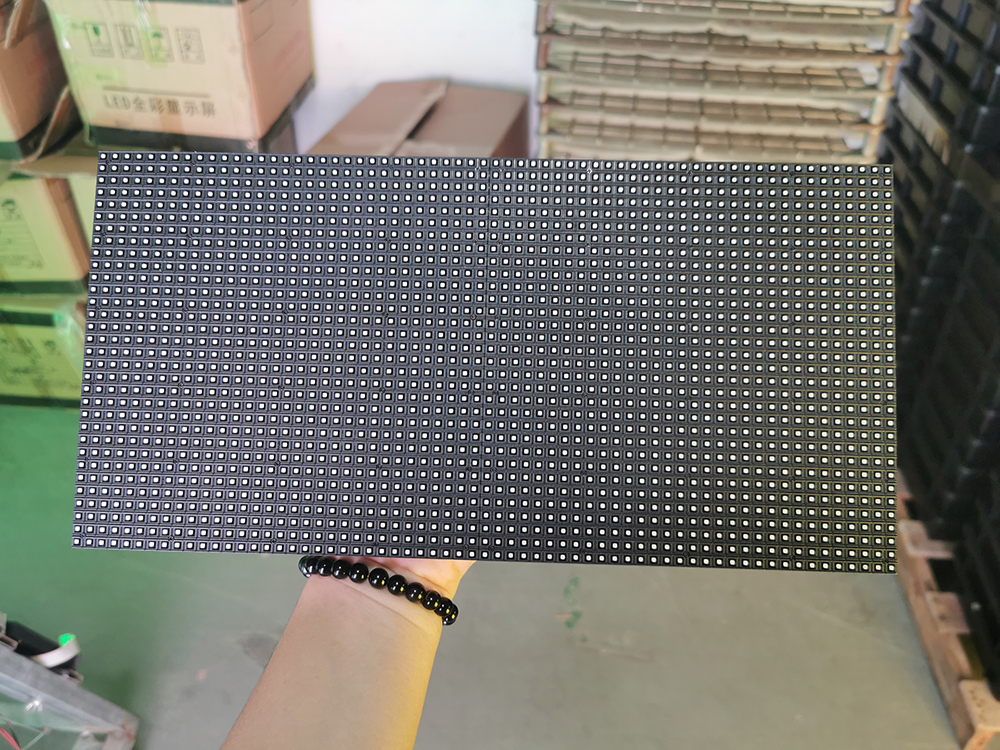

Module size	320*160mm		320*160mm
Cabinet size	640*640mm		640*640mm
Pixel Density	62500dots/㎡	40000dots/㎡	22500dots/㎡	15625dots/㎡	10000dots/㎡
LED encapsolution	SMD1919	SMD2525	SMD3535	SMD3535	SMD3535
Module Weight	0.4kg		0.4kg
Average consumption	1000w/㎡		1000w/㎡
Max power consumption	800w/㎡		800w/㎡
Best View distance	≥4m	≥5m	≥6.67m	≥8m	≥10m
Viewing angle	140º	140º	140º	140º	140º
Brightness	5000cd	5000cd	4800cd	4000cd	3500cd
Scanning	1/10 scan	1/8 scan	1/6scan	1/5 scan	1/4 scan
Refresh rate	≥1920hz		≥1920hz
Waterproof	IP65		IP65
Grey Scale	16384		16384
Working voltage	220VAC/50Hz		220VAC/50Hz
Life span	100000hours		100000hours
