Description

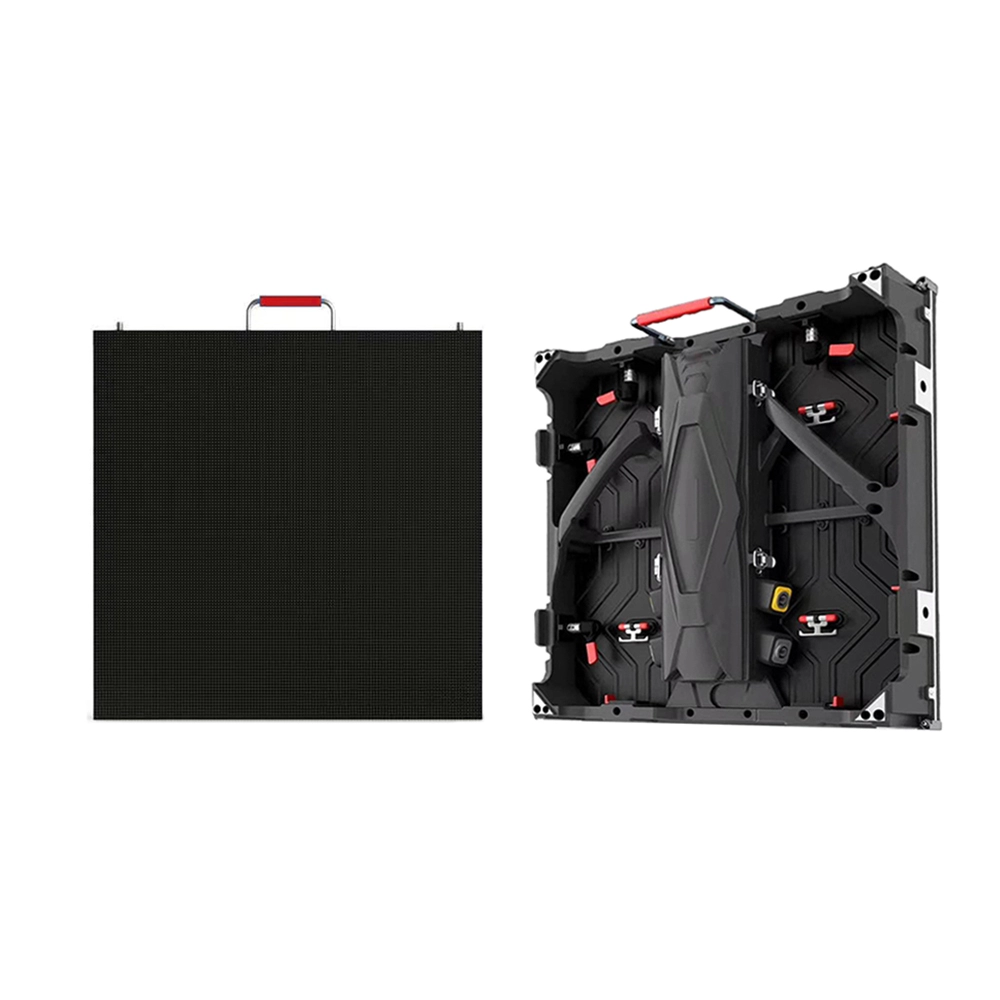

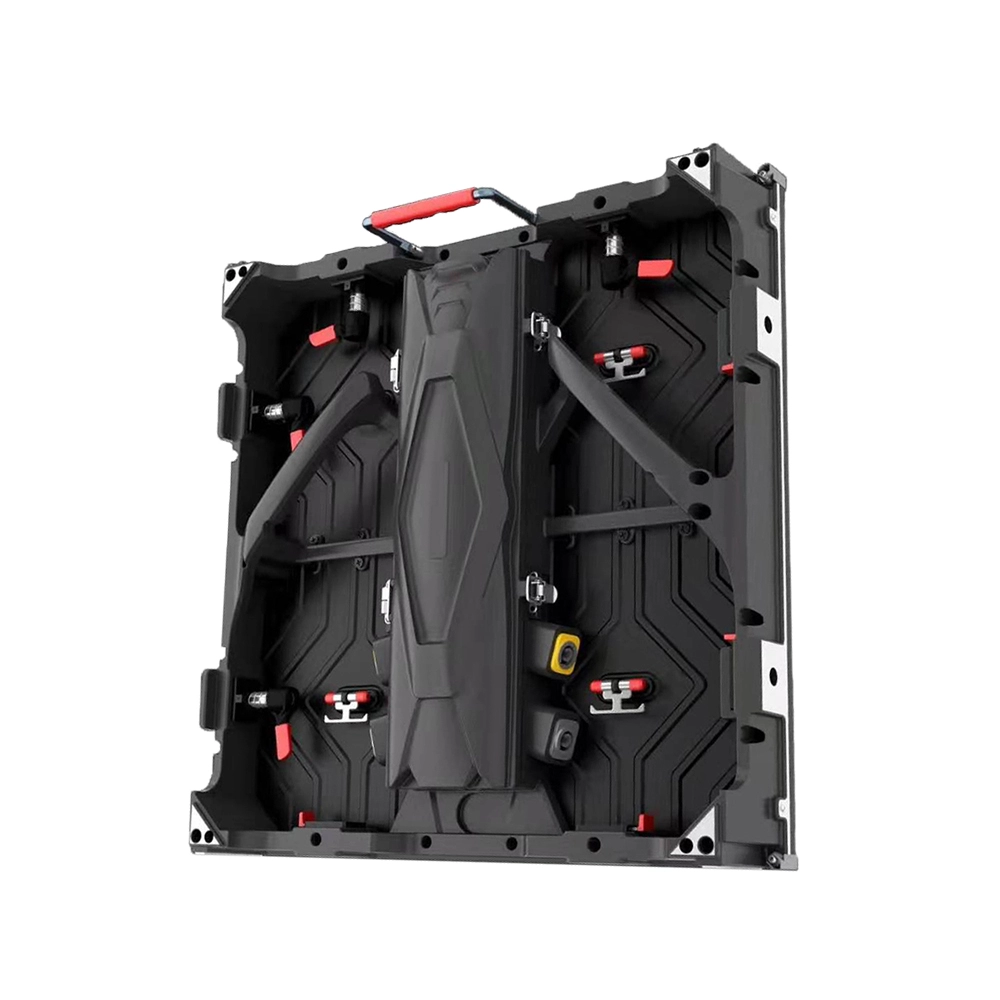

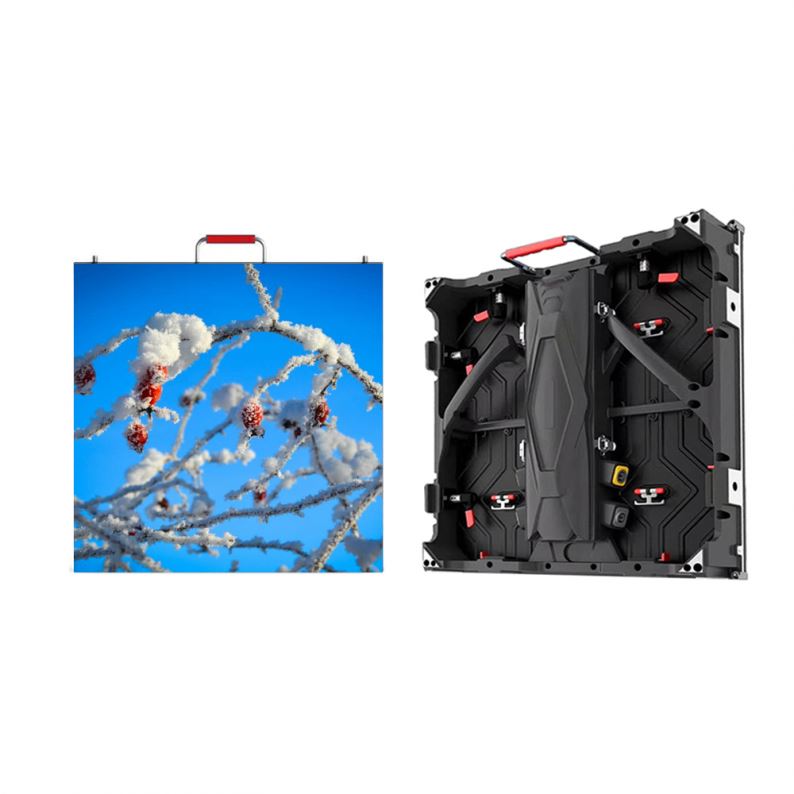

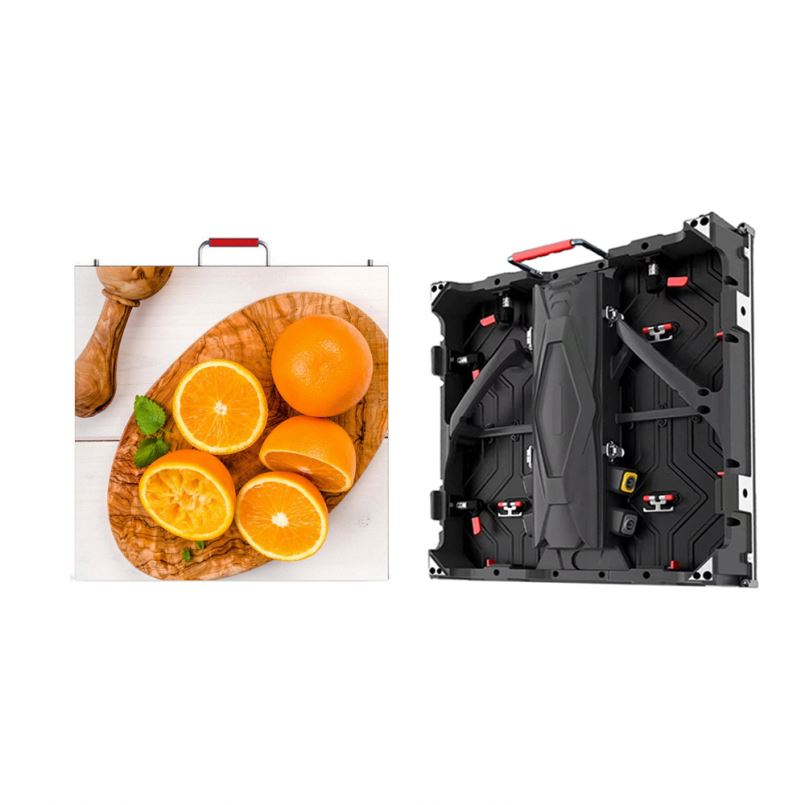

1. Cabinets are made of die-casting aluminium,can be spliced with no crack.
2. P2.5/2.976 / P3/P3.91/P4//P4.81/P5/P6 is optional for you.
3. SMD 3-in-1 technology with high brightness makes the display have a ultra-wide view & vivid image.
4. Work normally without air conditioning for low power consumption.

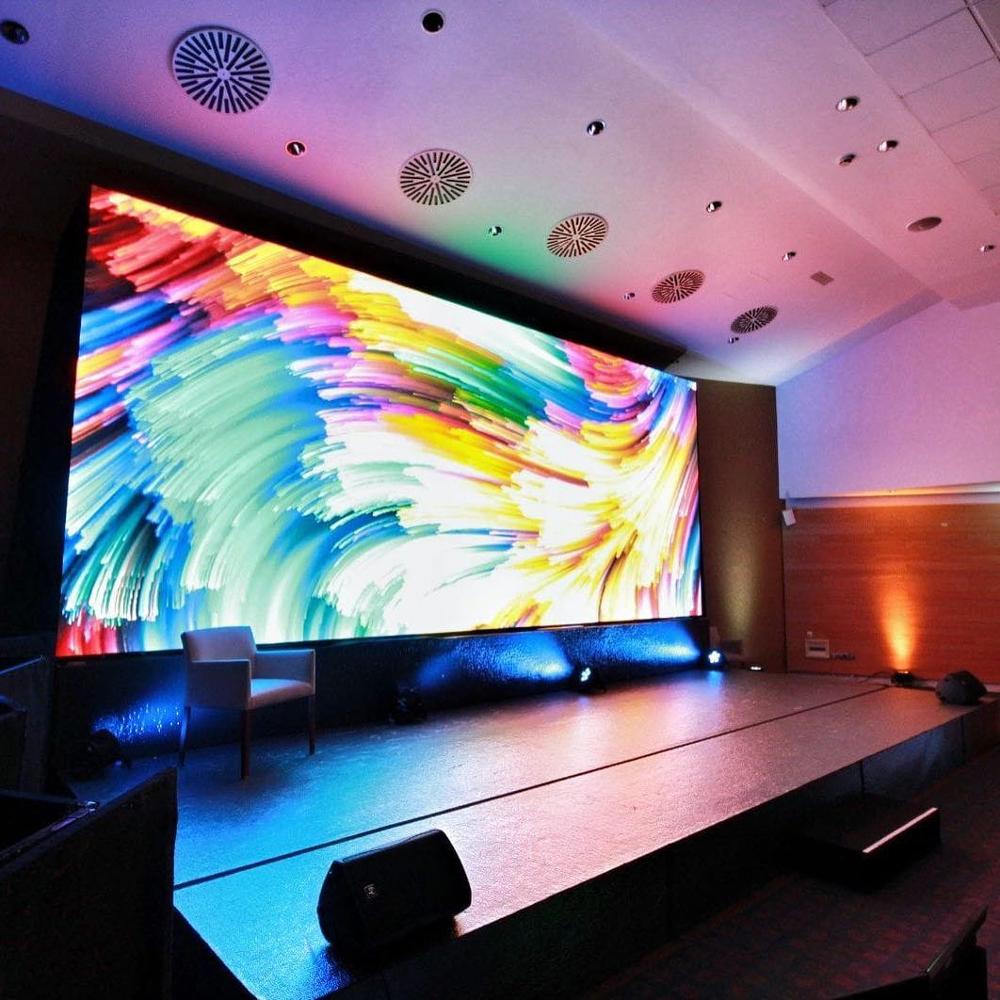

5. Suitable for indoor stage background, event activity, meeting room, club, bar etc.
Our services
1.Reply your inquiry within 24 working hours.
2. Well-trained, experienced staffs answer all your questions.
3.Can offer technique sharing with you by videos or photos.
4.Special discount are offered based on order quantity.
5.Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
6.Your sales area, design and all your private information will be protected.
| Item | Parameter |
| Pixel Pitch | 3.91mm(H*V) |
| Pixel Density | 65536pixels/m2 |
| LED Shape | SMD1921 |
| LED Configuration | 1R1G1B |
| Module Size | 250*250mm |
| Module Resolution | 64(W)×64 (H)pixels |
| Driving Mode | 1/16Scan,constant current |
| Brightness | ≥5000 NIT |
| Cabinet Material | Die-casting Aluminum |
| Cabinet size | 500x1000mm or 500x500mm |
| Cabinet weight | 16.5KG / 8.5KG |
| View Angle | 140°(horz.), 140° (vert.) |
| Viewing distance | ≥3m |

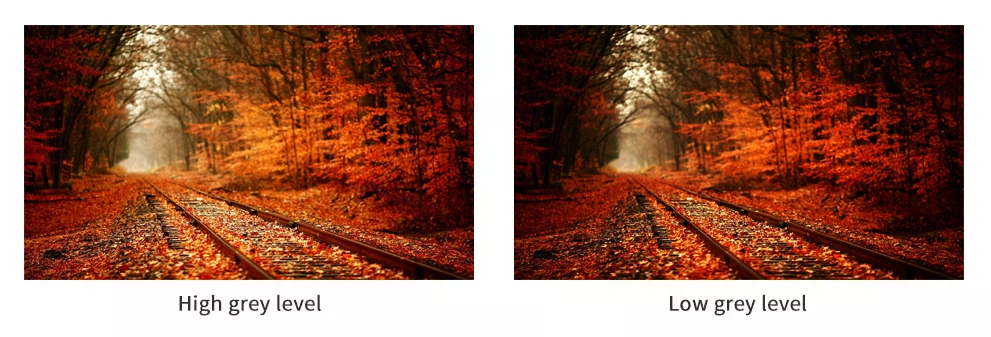

| Gray Scale | 12-16bits for red,green,blue |

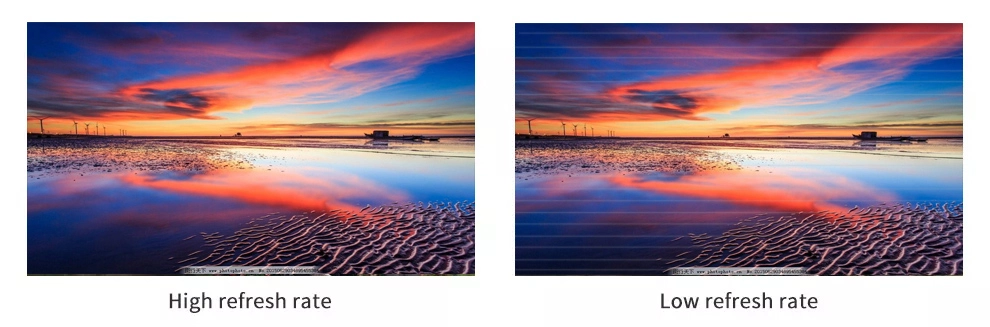

| Refresh Rate | ≥1920Hz |
| Life Span | 100,000Hours |
| MTBF | ≥10,000Hours |
| Protection level | IP65 / IP54 |
| Flatness of the screen | ≤1mm |
| Control Distance | Cat5:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km |
