P3.91 P4.81 P4 Poster Led Display P1.56 Small Pixel Pitch Indoor Screen Narrow

Features
Specs
Application
Order

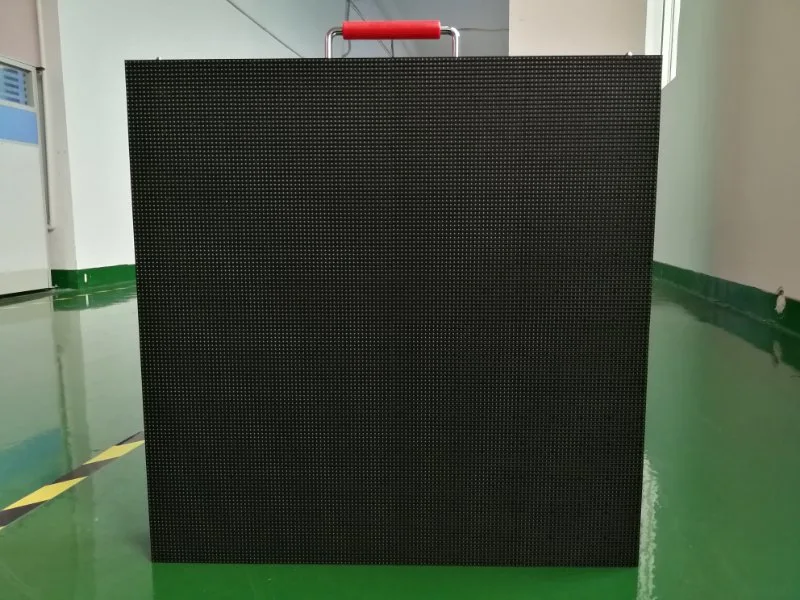

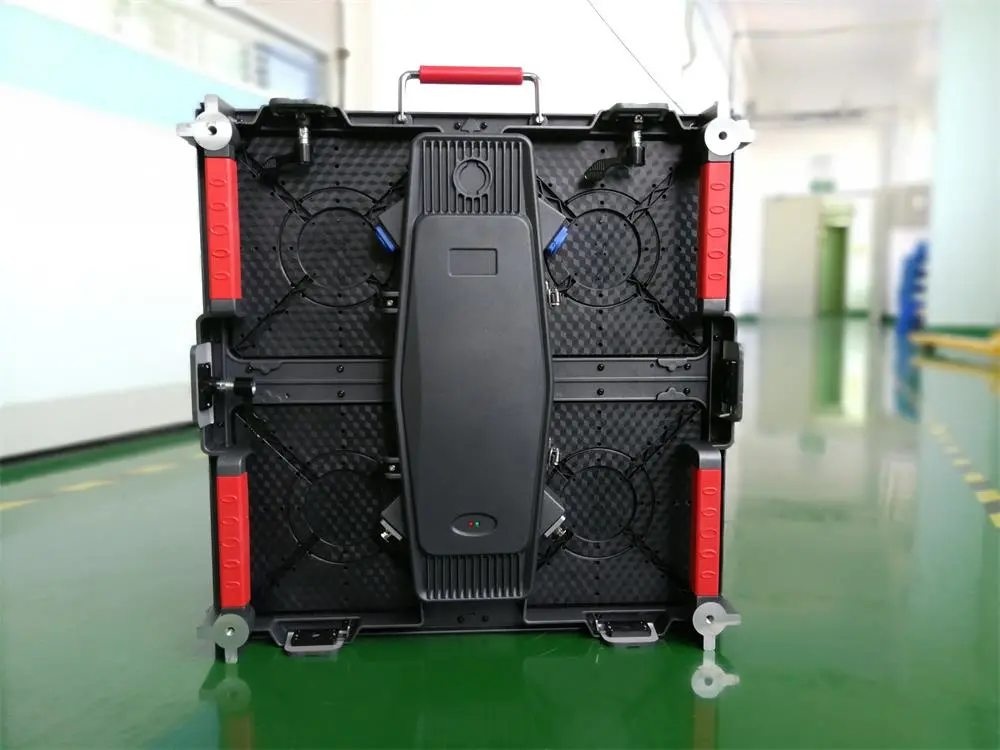

X SERIES PRODUCT FEATURES:

1. die-casting aluminum cabinet
-Lighter weight material
2. Light weight and ultra slim cabinet:
-less than 7kg only per cabinet / 88mm thickness.
3. 500x500 mm.
-500x500mm cabinet is to meet customer's different requests.

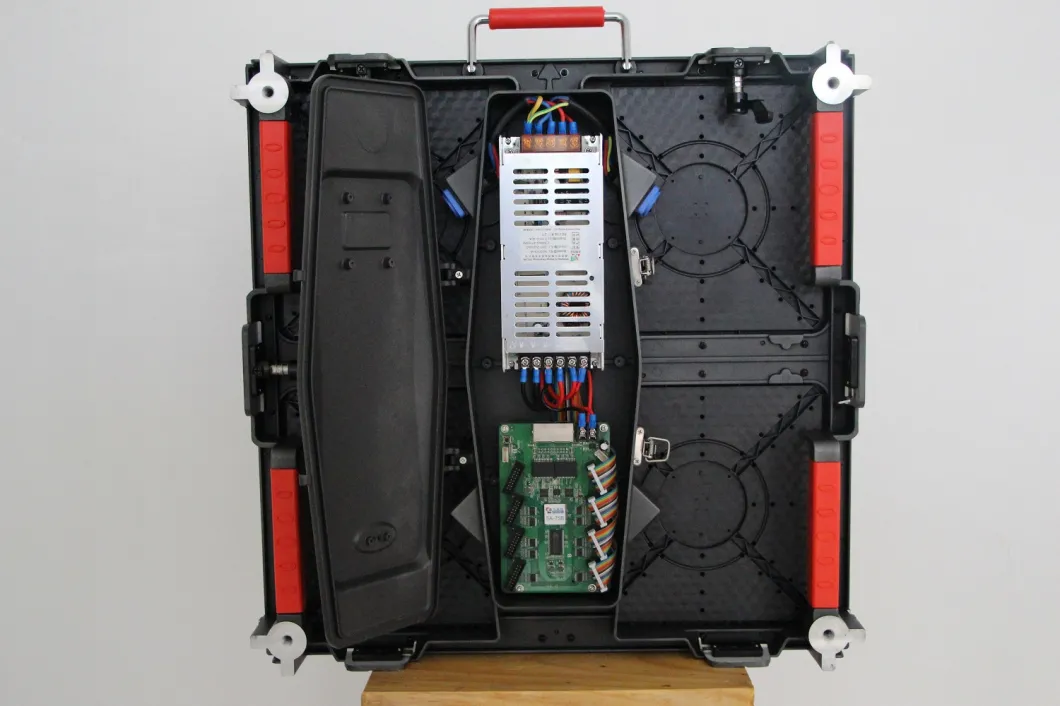

4. Smart cabinet handle design.
-Easier to take and more convenient for installation.
5. Fast locking system.
-Fast installation to save labor cost and time.

P3.91 P4.81 P4 Poster Led Display P1.56 Small Pixel Pitch Indoor Screen Narrow

P3.91 P4.81 P4 Poster Led Display P1.56 Small Pixel Pitch Indoor Screen Narrow

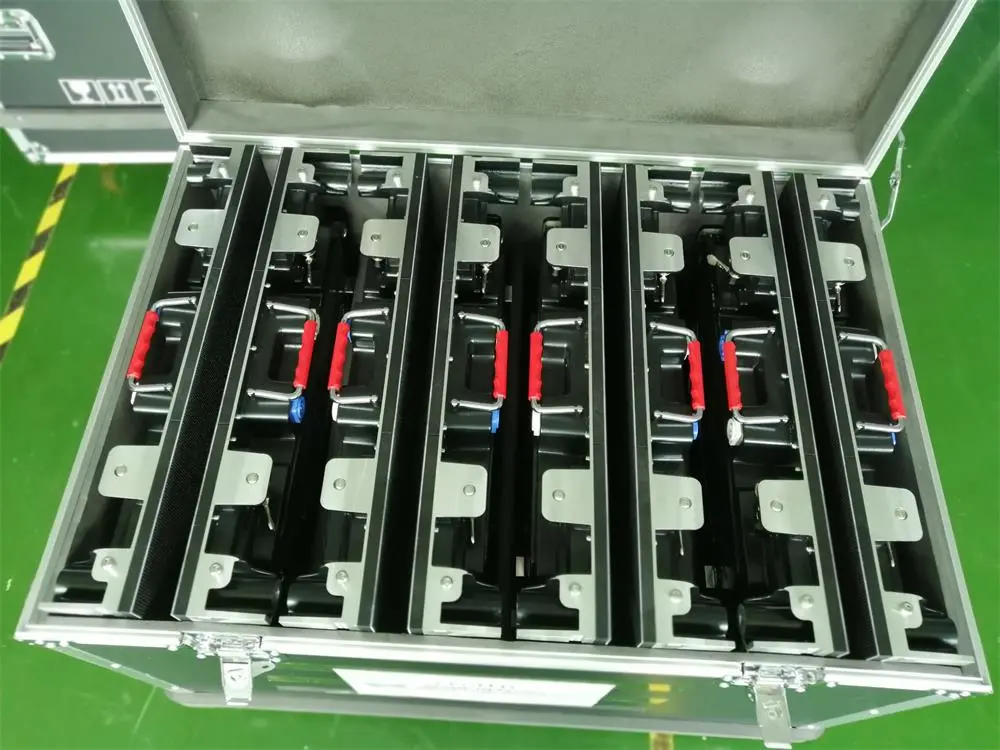

Package:
P3.91 P4.81 P4 Poster Led Display P1.56 Small Pixel Pitch Indoor Screen Narrow

NO.	Parameter	Specifications
1	Model	X02
2	Pixel Pitch(mm)	2.6
3	LED	SMD2020
4	Screen Resolution	147456dots/sqm
5	Scan Method	1/21
6	Cabinet size(LHW)	500X500X88mm
7	Cabinet(Kg)	7KG
8	Viewing angle	H:140° V:140°
9	Grey Scale	14-16bit adjustable
10	Refresh rate(HZ)	≥1920
11	Module size(mm)	250*250
12	Brightness(nits)	≥1600
13	AVE. power consumption (W/sqm)	185
14	MAX. power consumption(W/sqm)	560
15	IP grade	IP31
16	Controller	Linsn/Nova/colorlight
