P6 HD Outdoor LED Display

Features
Specs
Application
Order

P6 SMD waterproof outdoor LED Screen,with HD efffects.

&. Pixel Pitch: 6mm; Cabinet Size: 960×960mm.
&. SMD 3535 LED; High Definition and High intensity.
&. Standard processing technology to ensure each row and each column lamps at the same horizontal line, and ensure light consistency and clear, stability pictures.
&. SD to ensure large viewing angle, up to 1240° horizontally and 140° vertically. Image no distortion, no color cast in any angle within this range.
& . Cabinet design lightweight, easy to maintain, IP65 high-performance waterproof and dust resistance.

P6 HD Outdoor LED Display

Pixel Pitch(mm)	6
Pixel Density(pixels/㎡)	27777
Pixel Configuration	DIP 1R1G1B
Brightness(nits)	≥5500
Viewing Angle(deg.)	140(Horizontal), 140(Vertical)
Driving Mode	1/8
Grey Level(bit)	16
Refresh Rate(Hz)	1000
Frame Rate (Hz)	≥60
Module Dimension(mm)	192(W)×192(H)

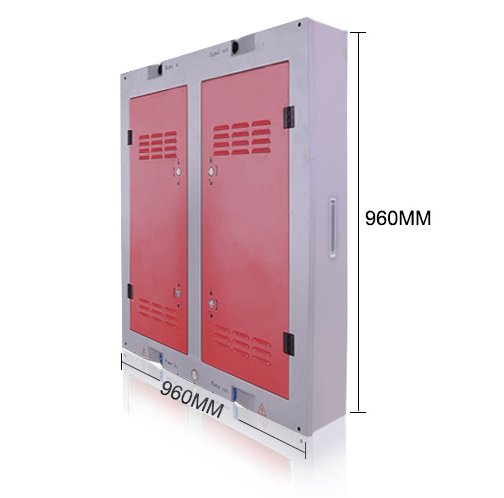

Panel Dimension(mm)	960(W)×960(H)×148(D)
Panel Resolution(pixels)	64×64
Panel Material	Iron steel
Panel Weight(kg)	≤43
Voltage(V)	AC 110 ～ AC 220
Avg. Power Consumption (W/㎡)	350
Max. Power Consumption (W/㎡)	1200
Protection Grade (Front/Rear)	IP65/IP54
Operating Temp/Humidity (℃/%RH)	-20～60/ 10～90
Storage Temp/Humidity (℃/%RH)	-40～60/ 10～90
Lifetime (hours)	≥50000(Normal Temp)
