P5 Outdoor LED Screen

Features
Specs
Application
Order

P5 HDFull color outdoor LED Screen Display,High Brightness

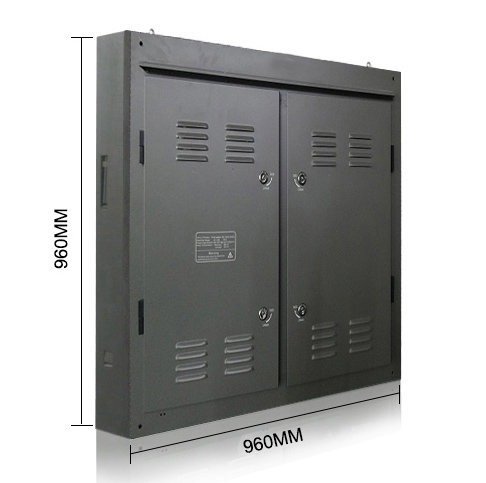

&. Pixel Pitch: 5mm; Cabinet Size: 960×960mm

&. SMD2727 LED lamp; High brightness, and brightness adjustable,High intensity.

&. Standard processing technology to ensure each row and each column lamps at the same horizontal line, and ensure light consistency and clear, stability pictures.

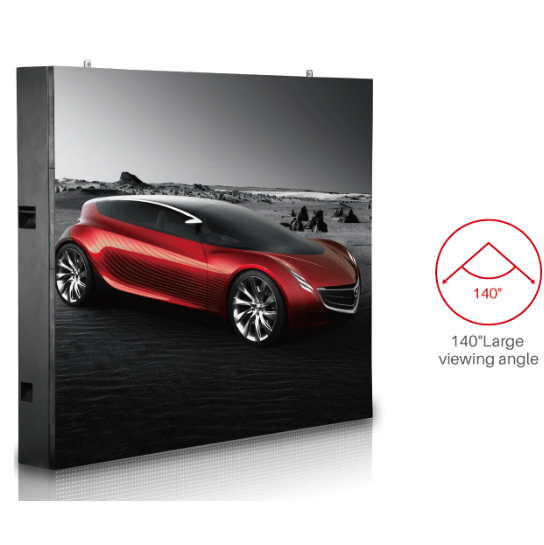

&. Large viewing angle, up to 140° horizontally and 1400° vertically. Image no distortion, no color cast in any angle within this range.

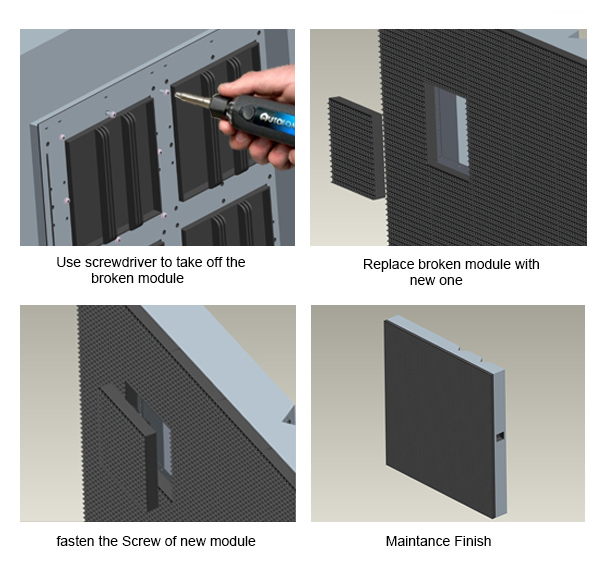

& . Cabinet design lightweight, easy to maintain, IP65 high-performance waterproof and dust resistance.

P5 Outdoor LED Screen

Cabinet	1	Dimension	960x960x100mm
	2	Physical resolution	192x192dots
	3	Module quantity	18PCS
	4	Weight	56kg
	5	Material	Steel
	6	Driving method	1/8scan
	7	Brightness	>6000nits
	8	Max power consumption	1000W/sqm
	9	Average consumption	400W/sqm
	10	Frame frequency	>60HZ
	11	Refresh frequency	>1920HZ
	12	Gray level	14bit(16384)-16bit(65536)
	13	IP grade	IP65
	14	Input Voltage	AC110V-240V
	15	Power supply	220V 60HZ
	16	Viewing angle	140°
	17	Best viewing distance	0-100m
	18	working environment	Temperature range -25-60°
	18	working environment	Humidity range 10%-90%RH
	19	Control system	Novastar
	20	Input signal	AV S-VIDEO VGA DVI HDMI YPBPR SDI DP
	21	Display function	video
	22	Certificate	CE/FCC/ROHS
