P16 Outdoor LED Screen

Features
Specs
Application
Order

P16 Full color outdoor LED Screen Display,High Brightness

&. Pixel Pitch: 16mm; Cabinet Size: 1024×1024mm

&. DIP 346 LED lamp; High brightness: 7500nits, and brightness adjustable,High intensity.

&. Standard processing technology to ensure each row and each column lamps at the same horizontal line, and ensure light consistency and clear, stability pictures.

&. Large viewing angle, up to 110° horizontally and 60° vertically. Image no distortion, no color cast in any angle within this range.

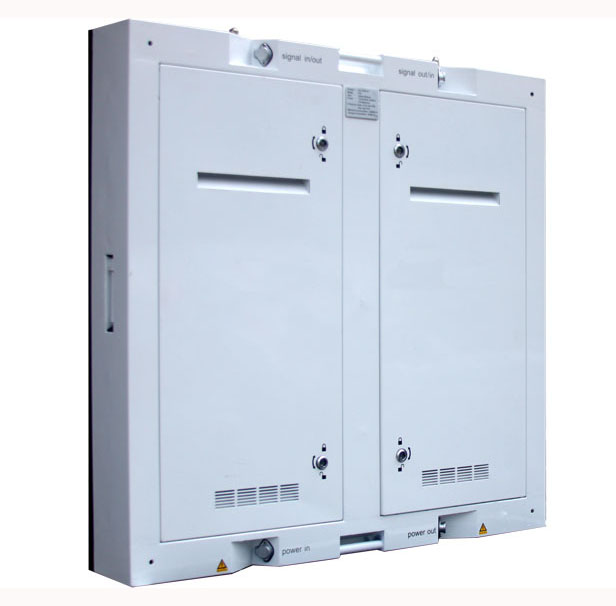

& . Cabinet design lightweight, easy to maintain, IP65 high-performance waterproof and dust resistance.

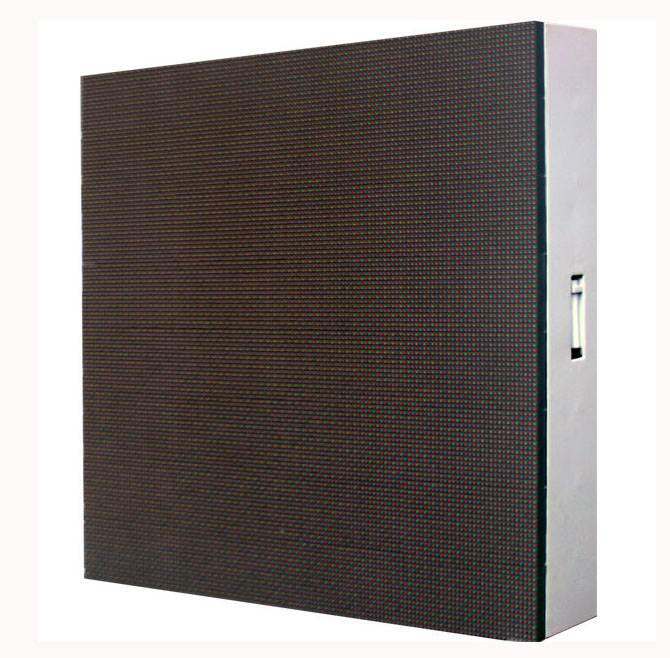

P16 Outdoor LED Screen

Pixel Pitch（mm）	16mm
Pixel density（dot/m²）	3906
LED Type	DIP346
Viewing angle:	H:120°,V:60°
Brightness（nits）	≥7500
Drive Method	Static
Color Depth（nits）	16384
Refresh Rate（Hz）	3000
Module Size（mm）	256×256×28.5
Cabinet Size（mm）	1024×1024×148.5
Cabinet Material	Iron Sheet Metal
Cabinet weight（kg）	55
Voltage	110/240V
Average power（W / m²）	220
Max power（W / m²）	650
IP Grade	IP65/IP54
Operating temperature	temperature：-20℃～ 50℃
Storage temperature	temperature：-40℃～ 60℃
Lifetime(h)	≥50000
Compliant Standard	CCC、CE、Rosh
