P10 Outdoor SMD LED Display

Features
Specs

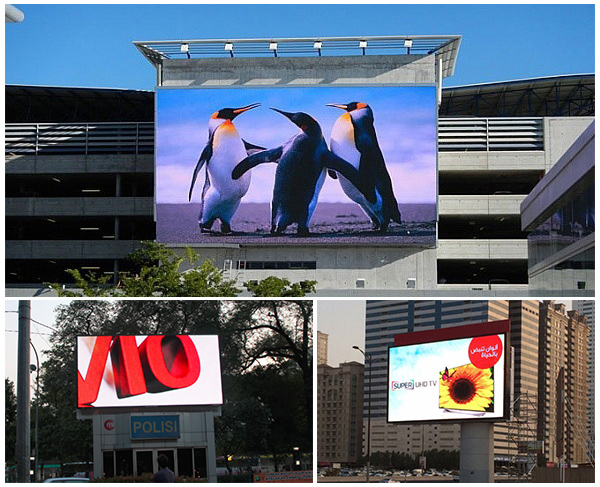

Application
Order

P10 SMD Full color outdoor LED Screen Display, Wide Angle and High Brightness.

&. Pixel Pitch: 10mm; Cabinet Size: 960×960mm

&. SMD 3535 LED; High brightness: 7500nits, and brightness adjustable,High intensity.

&. Standard processing technology to ensure each row and each column lamps at the same horizontal line, and ensure light consistency and clear, stability pictures.

&. SD to ensure large viewing angle, up to 120° horizontally and 120° vertically. Image no distortion, no color cast in any angle within this range.

& . Cabinet design lightweight, easy to maintain, IP65 high-performance waterproof and dust resistance.

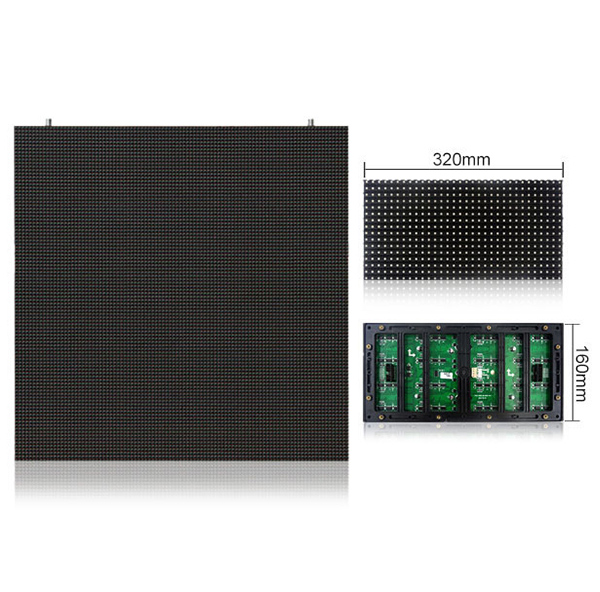

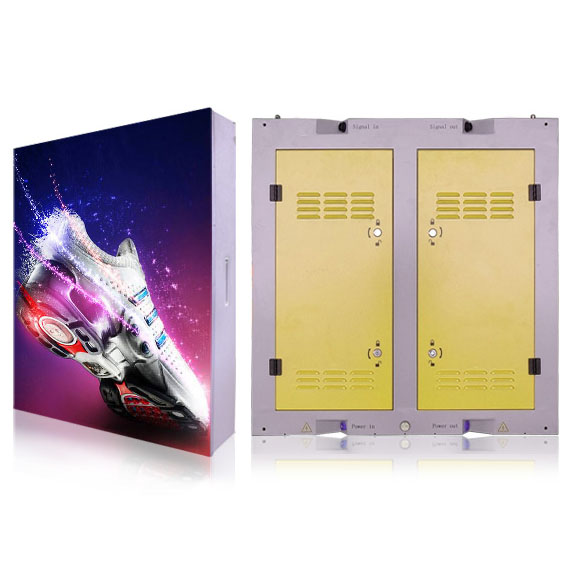

P10 Outdoor SMD LED Display

Item	Outdoor P10 SMD LED Display
Pixel Pitch（mm）	10mm
Pixel density（dot/m²）	10000
LED Type	SMD3535
Viewing angle:	H：120°,V:120°
Brightness（nits）	≥6500
Drive Method	1/4.
Color Depth（nits）	16384
Refresh Rate（Hz）	≥1920
Module Size（mm）	160×160×17

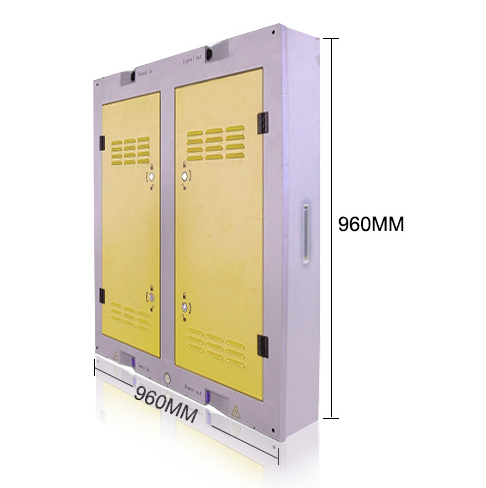

Cabinet Size（mm）	960×960×137
Cabinet Material	Iron Sheet Metal
Cabinet weight（kg）	50
Voltage	110/240V
Average power（W / m²）	250
Max power（W / m²）	750
IP Grade	IP65/IP54
Operating temperature	Temperature：-20℃～ 60℃
Storage temperature	Temperature：-40℃～ 60℃
Lifetime(h)	≥50000
Compliant Standard	CCC、CE、Rosh
