- General Module design makes perfect flatness on the surface; minimize the gap between modules & cabinets.
- Ultra high brightness (6000 Nits) with low power consumption (average 180W/sqm).
- High refresh rate with software adjustable, suitable for videos, picture and filming.
- High gray scale (16 bits) with perfect real visual performance and effects.
- High Contrast ratio (2000:1) with self-developed black mask and black coating technique.
- Wide viewing angle (greater than 110° in horizontal); IP65 protection rating.

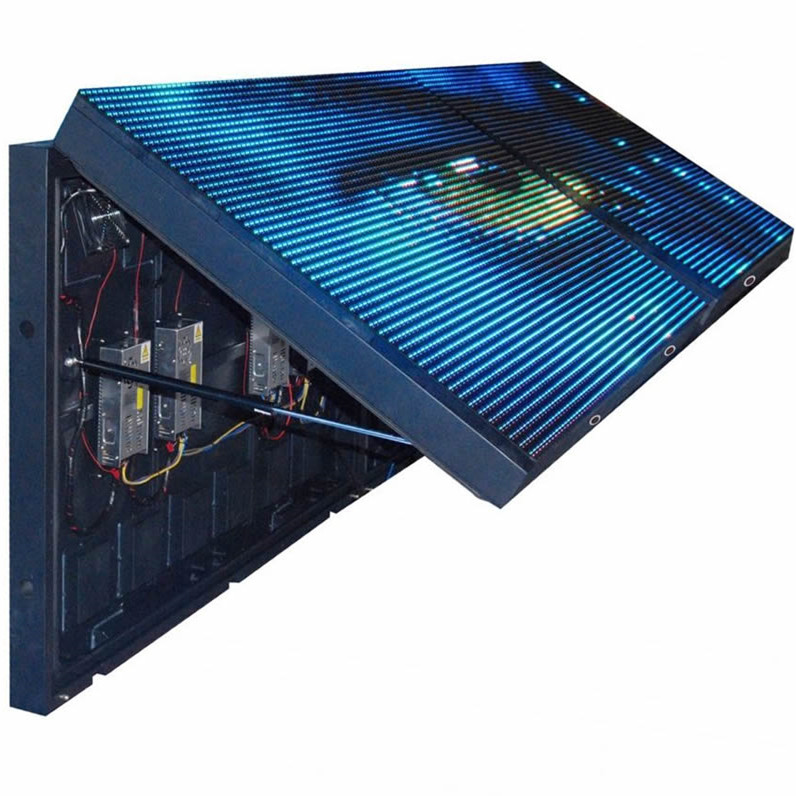

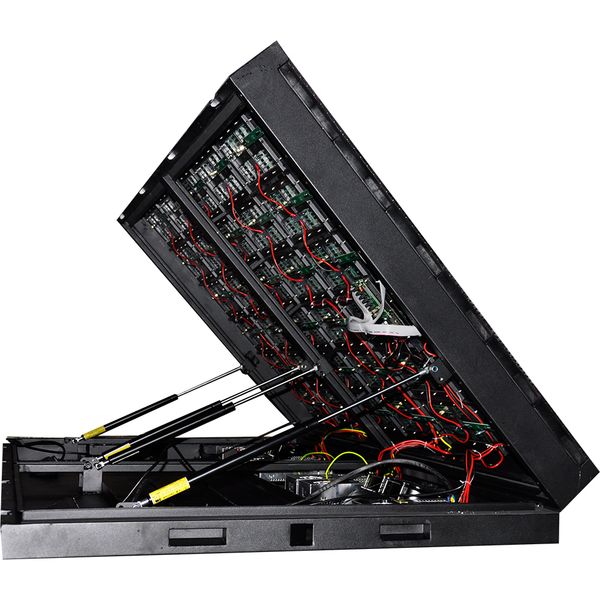

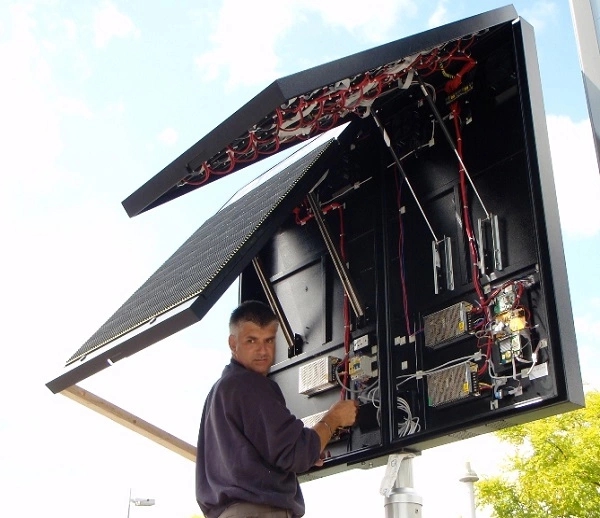

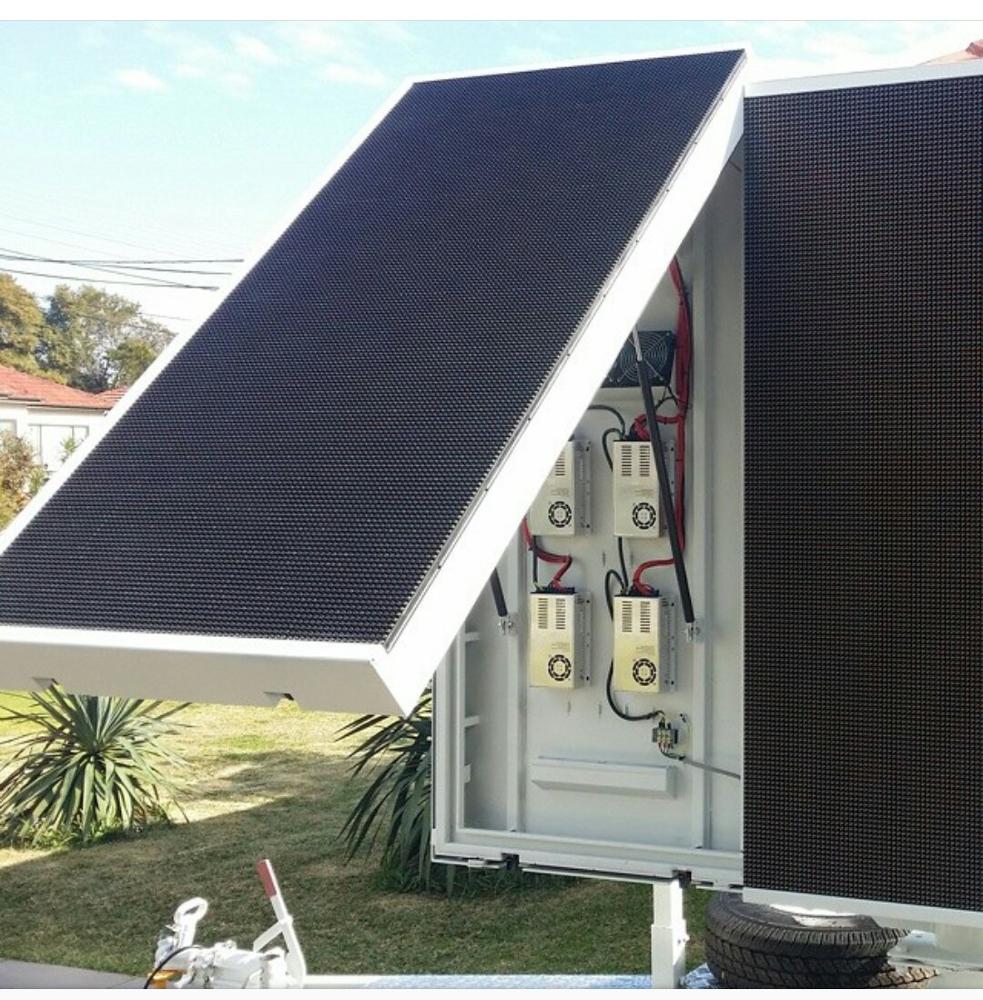

- Easy and fast installation and maintaining design. (Install or remove a module only takes 8 seconds).
- High reliability and long lifespan (MTBF ≥ 5000 hours). And on-site pixel by pixel brightness and
color correction bring greater uniformity.
Type |
SMD3535 |
composition |
1R1G1B |
Scan method |
2S |
resolution |
32 x 16dots (W x H) |
Pixel pitch |
10mm |
Module size |
320*160 mm |
Module quantity |
3x6 |
resolution |
96x 96(W x H) |
Cabinet size |
960*960mm |
Panel Type and Material |
Iron box with front service |
Best viewing distance |
10-100m |
Maximum power |
<1000W /m2 |
Viewing angle |
140°/140° |
Brightness |
6500cd/m2 |
Pixel density |
10000dot/m2 |
Control system |
Synchronous System |
lifespan |
100,000 hours |
Frame frequency |
60Hz |
installation |
Hanging/Fixed with support bracket |
certification |
CE, ROSH,FCC |
