Model

Unit

P10

Pixel pitch

mm

10.00

Pixel resolution

pixel/m²

10,000

pixel/cabinet

9,216 with 96 x 96

Pixel configuration

-

SMD 2727 3-in-1 LED

Viewing angles

horizontal

120° at 50% brightness

Vertical

90° at 50% brightness

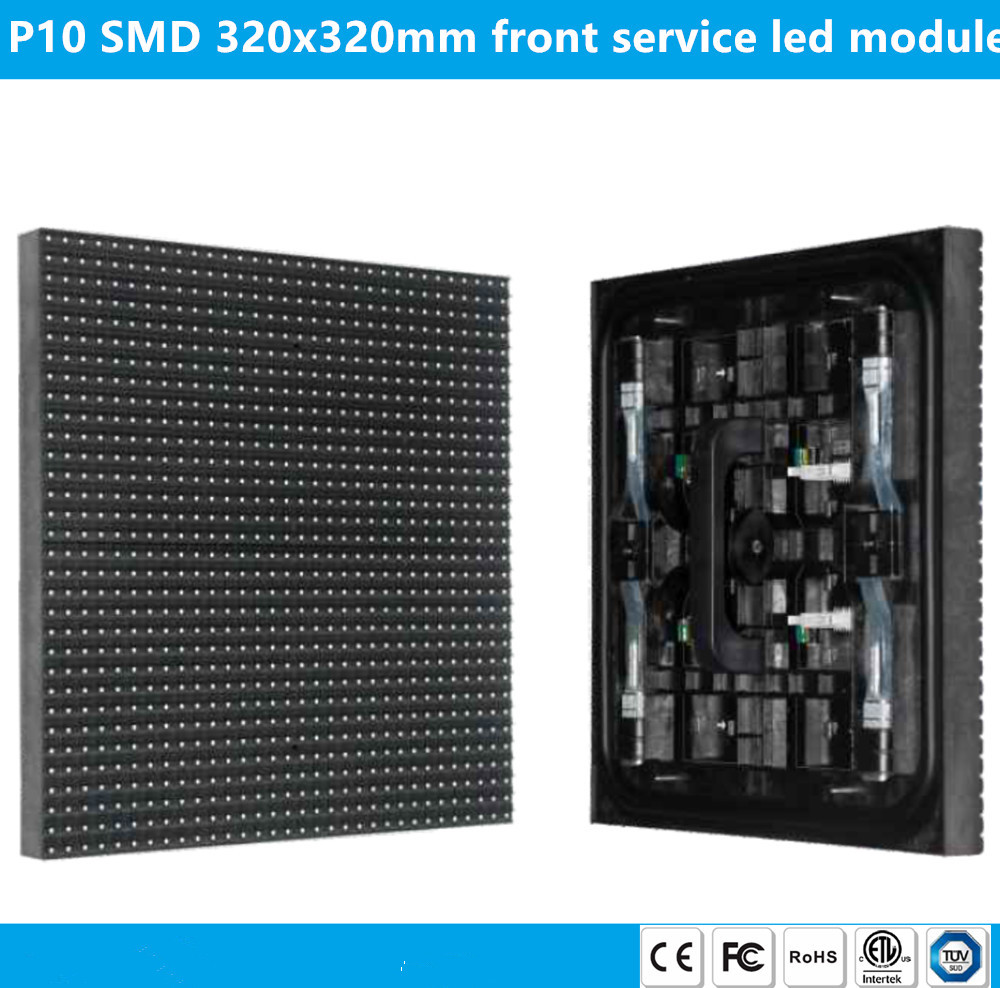

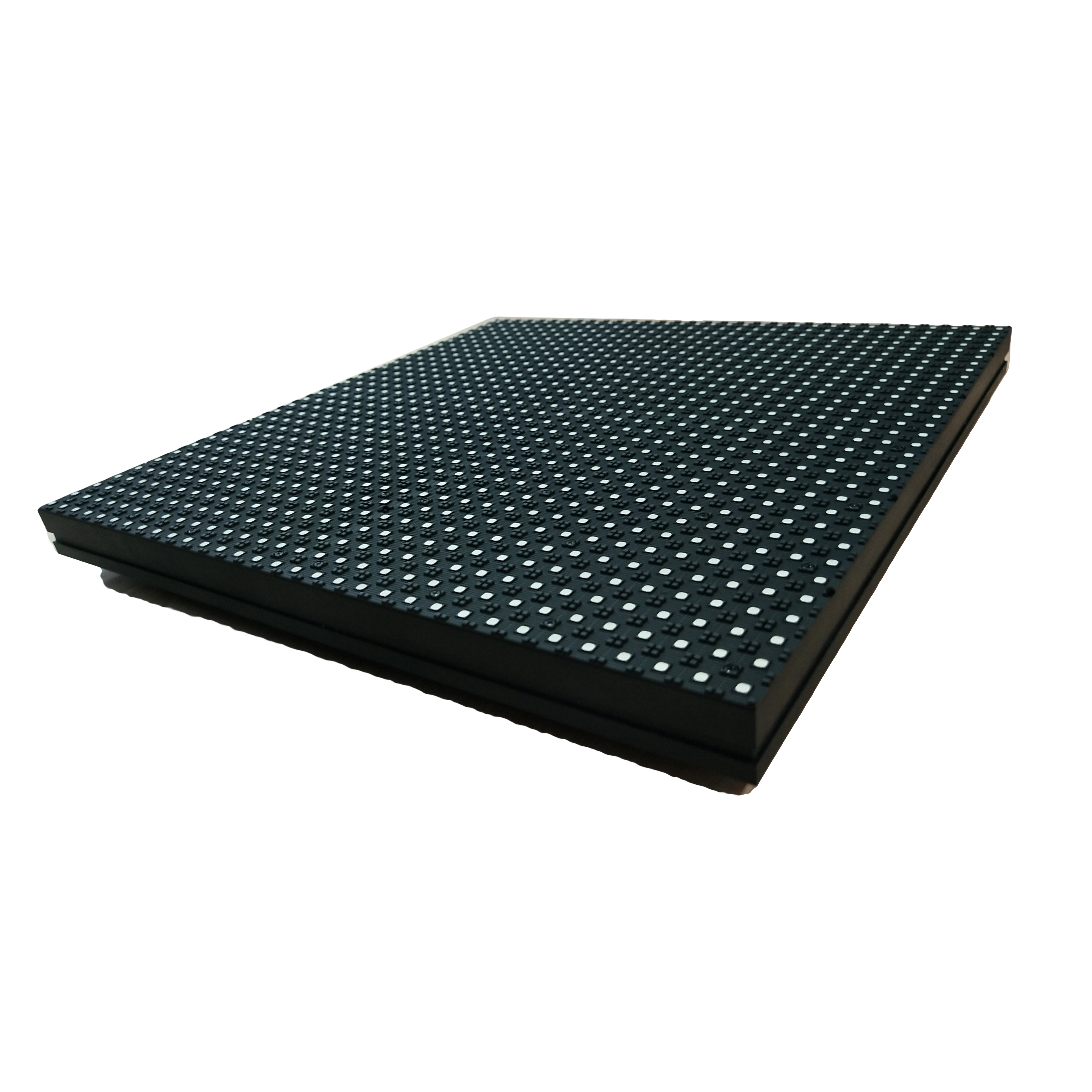

LED module size

mm

320 x 320

Weight

kg/m²

50

kg/cabinet

46

Brightness

CD/m²

5,500

Contrast ratio

-

1,000:1

Color temperature

K

6,500

Color processing

bit/color

12

Colors

number

68.7 billion

Grayscale

steps

4,096

Best viewing distance

m

10 -100

Refresh rate

Hz

≥1,000

Control system

-

LINSN

Life time

h

75,000 to 50% brightness down

Power consumption

W/m²

800 / 400

(maximum/average)

W/cabinet

738 /369

Working voltage

-

AC220V or AC110V / 50-60 Hz

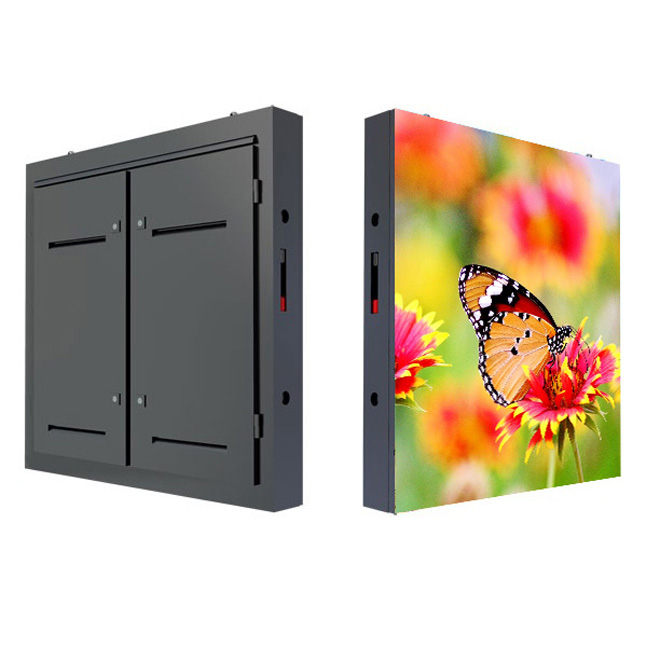

Cabinet dimension

mm

960 x 960 x 170

inches

37.8 x 37.8 x 6.7

Aspect ratio

-

1:1
