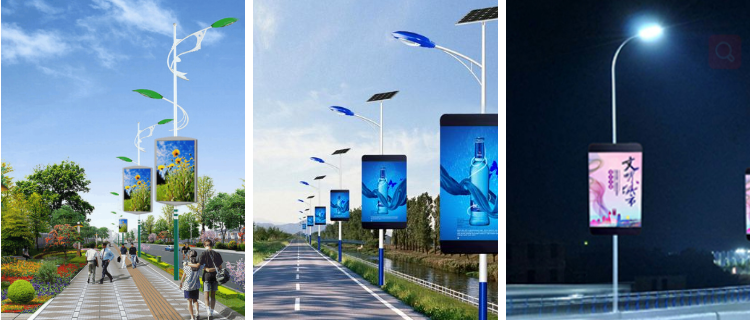

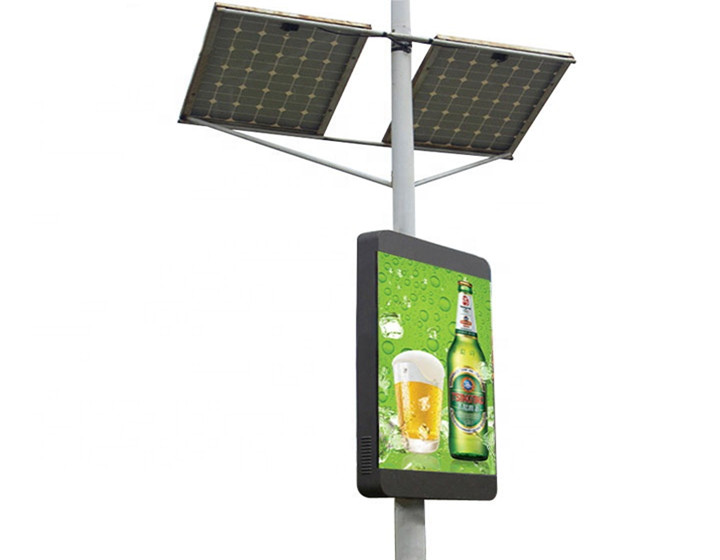

P3 Street Lighting Pole Outdoor Video LED Display

1. Intelligent Conrol and labor saving

With the LAN, wifi,3G and 4G intelligent management core mode inside, the advertisement show can be changed very convenient by remote control. Like the ipad, mobile phone, and computer, you can operate changing the screen videos or pictures.

2. High IP level

With front/back level of IP65 / 54, screen can be used outdoor even under bad weather

3. Easy maintenance

Side-open and back-open maintenance allow it more optional installation positions.

P3 street pole video panel

PIXEL PITCH	3MM	3MM	4MM
LED Encapsulation	SMD1921	SMD1921	SMD1921
MUDULE SIZE	320*160MM	192*192MM	320*160MM
Driver mode	1/16 scan, constant current drive	1/16 scan, constant current drive	1/8 scan, constant current drive
DISPLAY SIZE	1600mmX960mm	1728MMX960MM	1600mmX960mm
HOUSING SIZE	1640mmX960mm	1768mmX960MM	1640mmX960mm
RESOLUTION	530X318pixels	576X320pixels	400X240 pixels
BRIGHTNESS	3500~4500 nits	3500~4500 nits	4000~5000 nits
Viewing distance(m)	3~50	3~50	5~50
WEIGHT	82kgs	88kgs	82kgs
POWER CONSUMTION	700W (Max)	750W(Max)	600W(Max)
VIEW ANGLE	H140°, V120°	H140°, V120°	H140°, V120°
REFRESH RATE	1920Hz	1920Hz, can be adjusted	1920Hz, can be adjusted
