Outdoor P10 SMD Die-casting Aluminum Rental Screen

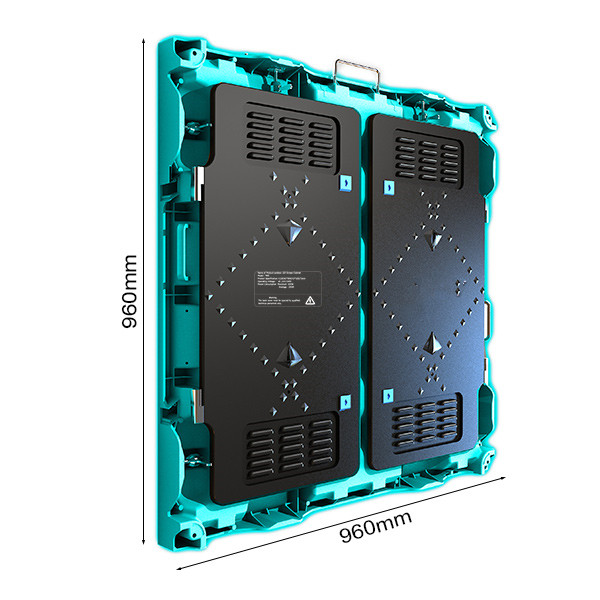

&. Pixel pitch: 10mm; Cabinet size is 960 * 960 mm

&. Aluminum die-casting cabinet, light weight, slim body,fit for outdoor rental.

&. With Protection grade IP65 front and IP54 rear.

&. Graceful and concise appearance, <0.1mm discrepancy

&. Suitable for all outdoor working environment.

&. Fast locks at the four sides of the cabinet, easy assembly; and be piled up and be hoisted.

&. Backside maintenance. Exterior exposed module screws, easy dismantling.

&. Waterproof connectors and jackets, safe and steady.

&. Waterproof
RO 960D Outdoor LED Screen

Outdoor Die-casting SMD P10 Outdoor Rental LED Display
Pixel Pitch (mm)	10mm
Pixel density(pix/m2)	10000
LED Type	SMD3535
Viewing Angle	X、Y140°
Brightness(nits)	≥5000
Drive Method	1/2.
Refresh Rate(Hz)	1920
Module Size (mm)	320×160×16

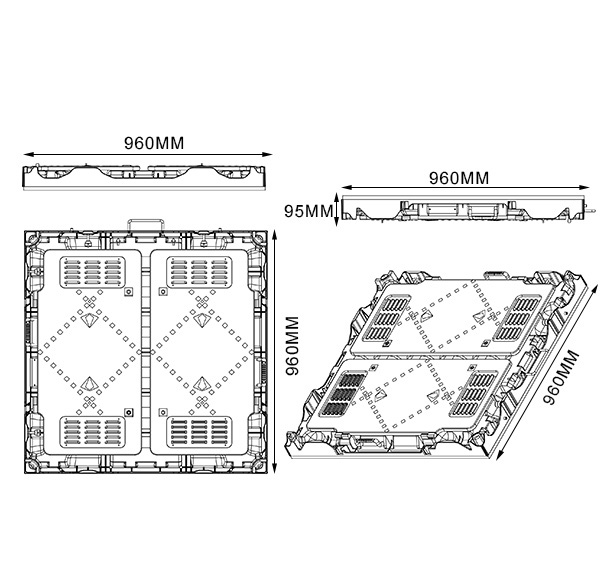

Cabinet Size(mm)	960×960
Cabinet Material	Die casting aluminum
Cabinet weight(kg)	17
Voltage	110-240V
Average power(W/m2)	230
Max power (W/m2)	700
IP Grade	IP65/IP54
Operating temperature/humidity	temperature：-20℃～ 50℃ humidity：10～90%RH
Storage temperature/ humidity	temperature：-40℃～ 60℃ humidity：10～90%RH
