Outdoor P6 SMD Die-casting Aluminum Rental Screen

&. Pixel pitch: 6mm; Cabinet size is 576 * 576 mm

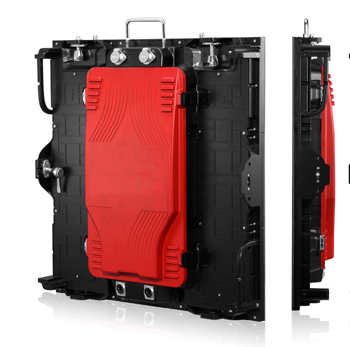

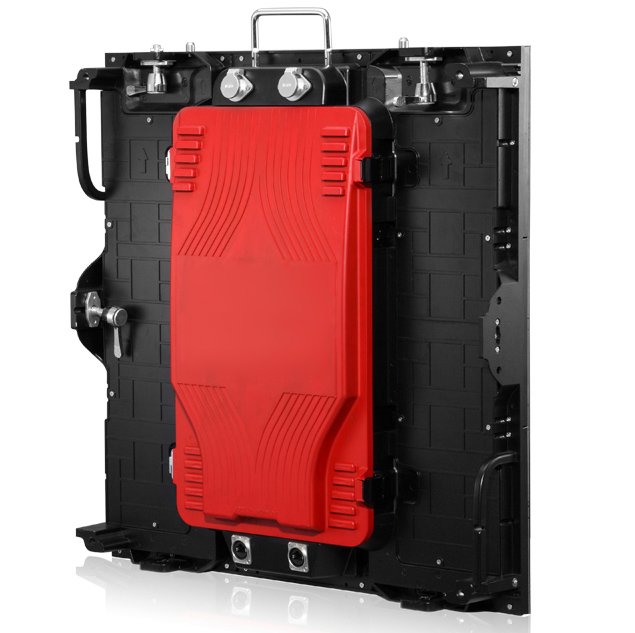

&. Aluminum die-casting cabinet, light weight, slim body,fit for outdoor rental.

&. With Protection grade IP65 front and IP54 rear.

&. Wide viewing angle SMD 3535 is used for this model

&. Graceful and concise appearance, <0.1mm discrepancy

&. Suitable for all outdoor working environment.

&. Fast locks at the four sides of the cabinet, easy assembly; and be piled up and be hoisted.

&. Backside maintenance. Exterior exposed module screws, easy dismantling.

&. Waterproof connectors and jackets, safe and steady.

&. Waterproof

Outdoor Die-casting SMD P6 Rental LED Display
Pixel Pitch (mm)	6mm
Pixel density(pix/m2)	27777
LED Type	SMD 3535
Viewing Angle	X、Y140°
Brightness(nits)	≥6500
Drive Method	1/8
Refresh Rate(Hz)	1920
Module Size (mm)	192×192
Cabinet Size(mm)	576×576
Cabinet Material	Die casting aluminum
Cabinet weight(kg)	8KG
Voltage	110-240V
Average power(W/m2)	230
Max power (W/m2)	700
IP Grade	IP65/IP54
Operating temperature/humidity	temperature：-20℃～ 50℃ humidity：10～90%RH
Storage temperature/ humidity	temperature：-40℃～ 60℃ humidity：10～90%RH
