1: Standard Size Panel: 250*250mm
2: Standard Cabinet Size: 500*500mm or1000*500mm
3: Use of Special heat dissipation structure make excellent heat dissipation, Quiet operation without fans
4: High refresh/High contrast/High grayscale/ Gorgeous picture showing
5: Ultra-wide viewing angle give user the largest screen viewing area.

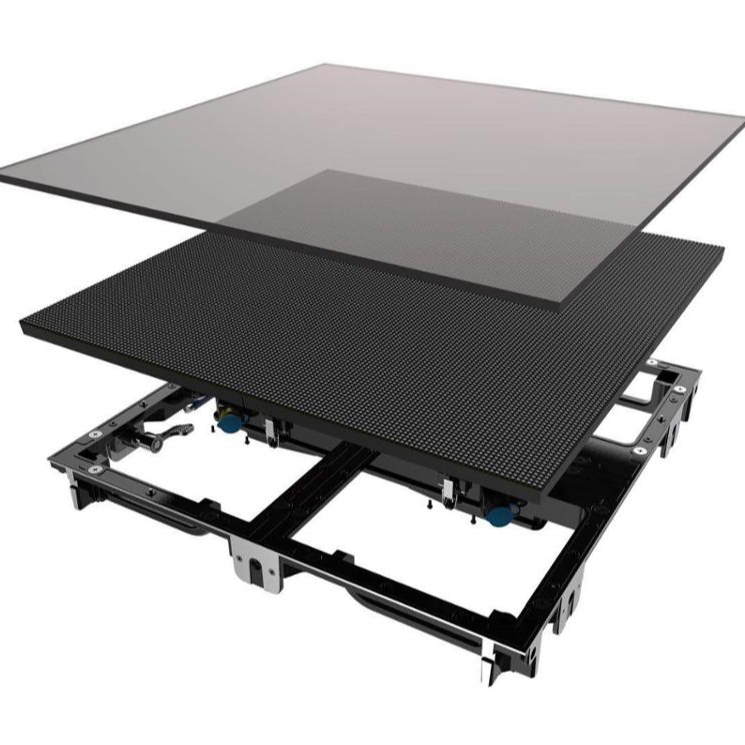

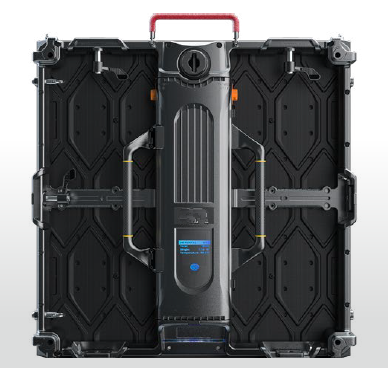

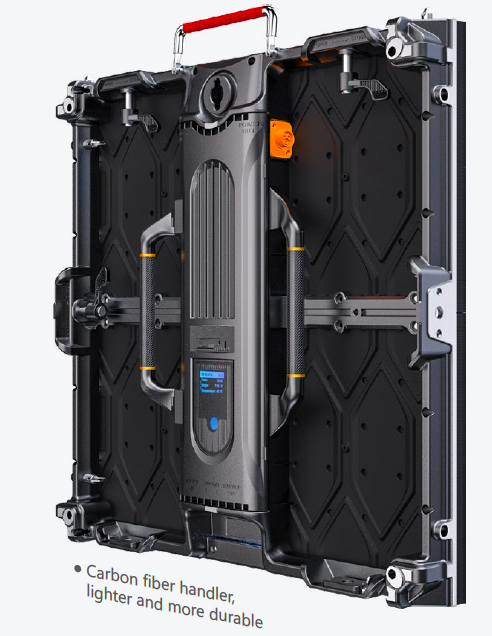

6: Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.
7: Ultra thin, Ultra light make it portable and easy to install, dismantle and maintain

| Model | P4.81-O |
| LED | SMD 3in1 |
| Pixel | 4.81mm |
| Module size | 250*250mm |
| Module resolution | 52*52dots |
| Density | 43264 pixels/sqm |
| LED Cabinet Size | 500*500*75(mm) |
| Cabinet Weight | 7.8kg/pc |
| Material | Die Casting Aluminum Cabinet |
| Brightness | 4500-5000 cd/m2 (Nits) |
| Average power consumption | 420w/2 |
| Maximum power consumption | 850w/2 |
| Optimal Viewing Distance | 4.81m to 48m |
| Grey Level | 14-16 bits |
| Fresh frequency | 3840HZ |
| Humidity-operating | 10% ~ 95% |
| Temperature-operating | -20℃~+50℃ |
| Screen life | ≥100000 hours |
| Controlling system | Novastar/Linsn/Huidu |
| Protective grade | IP65 |
| Certificates | CE,RoHs,FCC,UL |
| Warranty | 3 Years |
