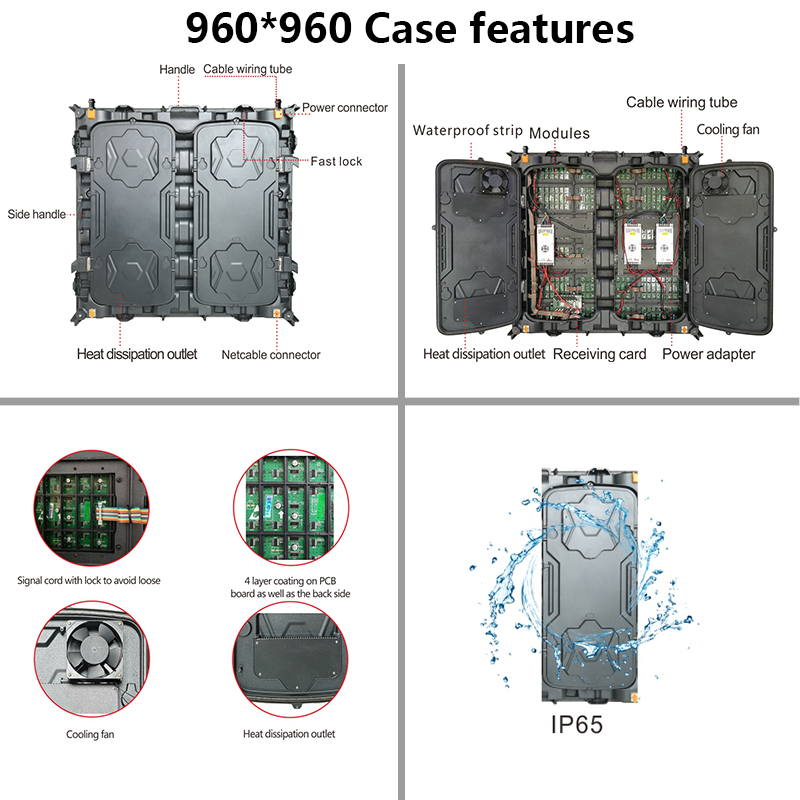

1. Standard 960 cabinet cost effective design,rental style

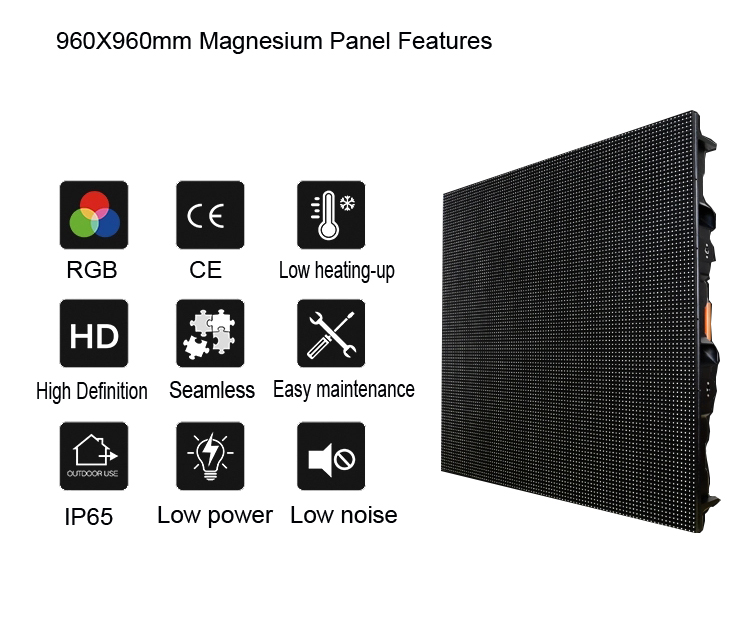

2. Ultra-thin die-cast magnenium alloy cabinet, much lightness and flatness than metal cabinet.

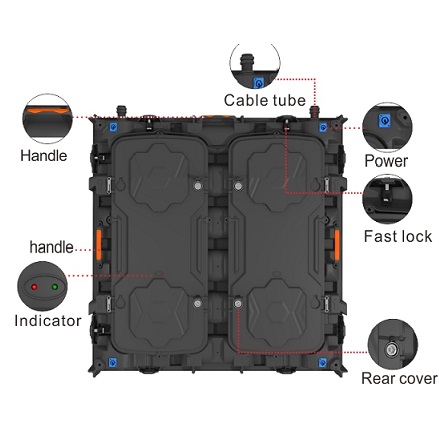

3. Quick-lock enabled, fast installation

4. Dedicated durable cable tube design between each cabinet

5. Built-in cooling fan fast heat dissipation, no need air conditioner.

6. Water-proof, IP65 Level

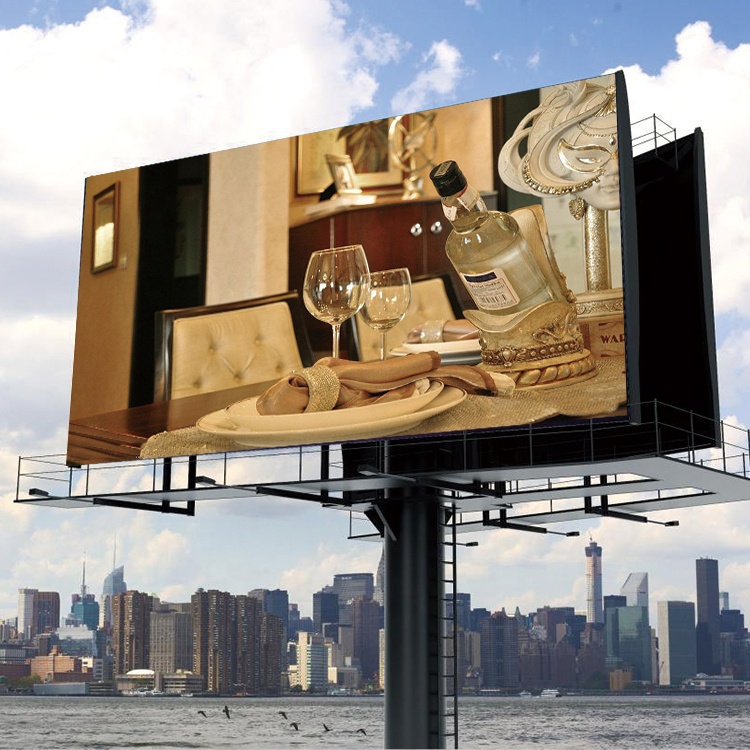

Outdoor HD advertising P8

LED Configuration	SMD3535
Pixel Pitch(mm)	8
Module Resolution(W×H)	40*20
Module Dimension(mm)	320*160
Module weight(kg)	0.8
Module Max Power Consumption(W)	30w
Modules per Cabinet (W×H)	3*6pcs
Cabinet Resolution(W×H)	120*120 pixels
Cabinet Dimension(mm)	96096075
Cabinet Weight(kg)	10.5
Pixel Density(dots/m2)	15625
Brightness(nits)	4500
View Angle(H/V°)	120/90
Max(Average) Power Consumption(W/m2)	650(300)
Power Supply	AC90-265V,Frequency 47-63(Hz)
Drive Mode	Constant Current Drive, 4/1Scan
Refresh rate(Hz)	1920Hz
Life span	100000hours
Functions	2K HD,4K Ultra HD Videos
Operating Temperature/Humidity(℃/RH)	-10 – 40 / 10%-80%RH
