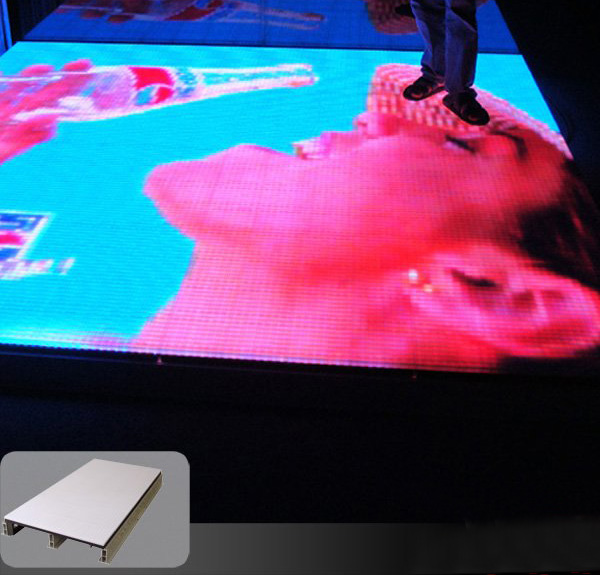

OT500 Dancing LED Floor

P10.4mm Die-cast Aluminum Dancing Floor LED display

& P10.4mm pixel pitch, with 500×500×60mm Cabinet Size

&. High Hardness

Adopts the hardest hign polymer material-Polycarbonate as mask,prevent damage from scratch,hit,high temperature,and corrosion.

&. Strong Structure

Adopts AL6063-T6 aluminum plate,with pretty load-bearing capability,ensures holding more than 1000kg/SQM weight.

&. Speedy Heat Venting

Well heat venting performance,heat can be conducted to outside directly through aluminum plate.

&. Easy to Assemble & Transport

Separated LED floor tiles and tracks;tracks can be connected by screw bolts,LED floor tiles can be paved on tracks naturally and fixed by positioning pin.

&. Dual Purpose Design

Dual purpose structure designing enables LED floor tiles to be hoisted/backside fixed as a video wall for rental use.

&. IP65 waterproof level, can be both applied in indoor and outdoor activities.

OT500 Dancing LED Floor

P10 dancing floor led display
Pixel Pitch (mm)	10.4mm
Pixel density(pix/m2)	9247
LED Type	SMD3535
Viewing Angle	H:120°,V;120°
Brightness(nits)	3500
Drive Method	1/4.
Color Depth	16bit
Refresh Rate(Hz)	1920

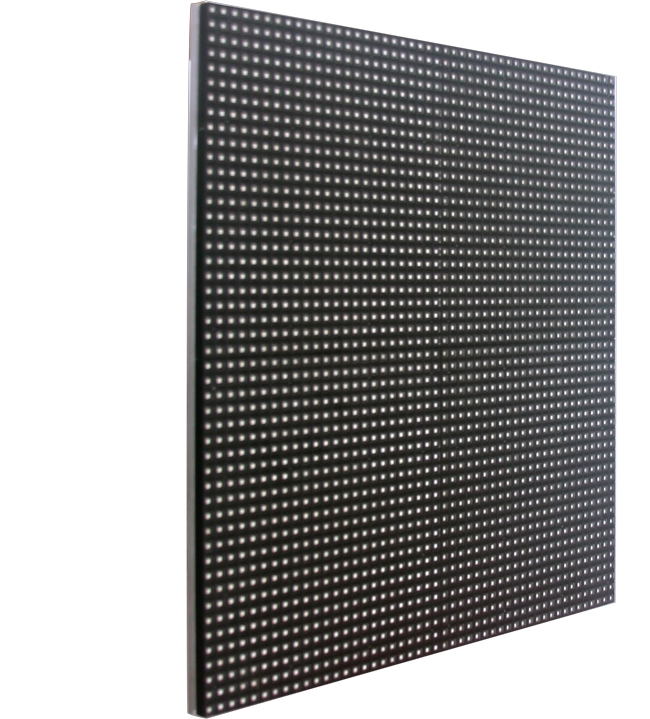

Module Size (mm)	250×250×12
Cabinet Size(mm)	500×500×60
Cabinet Material	Aluminum
Cabinet weight(kg)	12
Voltage	110/240V
Average.power(W / m2)	260
Max.power (W / m2)	800
IP Grade	IP65/IP54
Operating temperature/humidity	temperature：-20℃～ 50℃ humidity：10～90%RH
Storage temperature/ humidity	temperature：-40℃～ 60℃ humidity：10～90%RH
Lifetime(h)	≥50000
Compliant Standard	CCC、CE
