P31.25 IP67 transparent video

Features
Specs
Application
Order

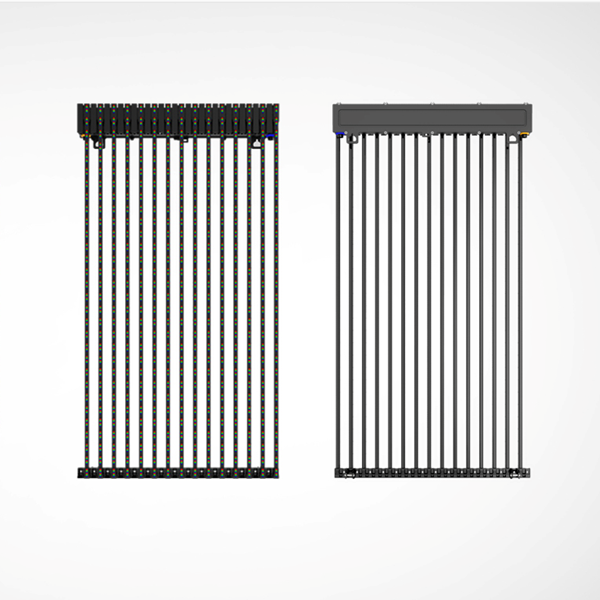

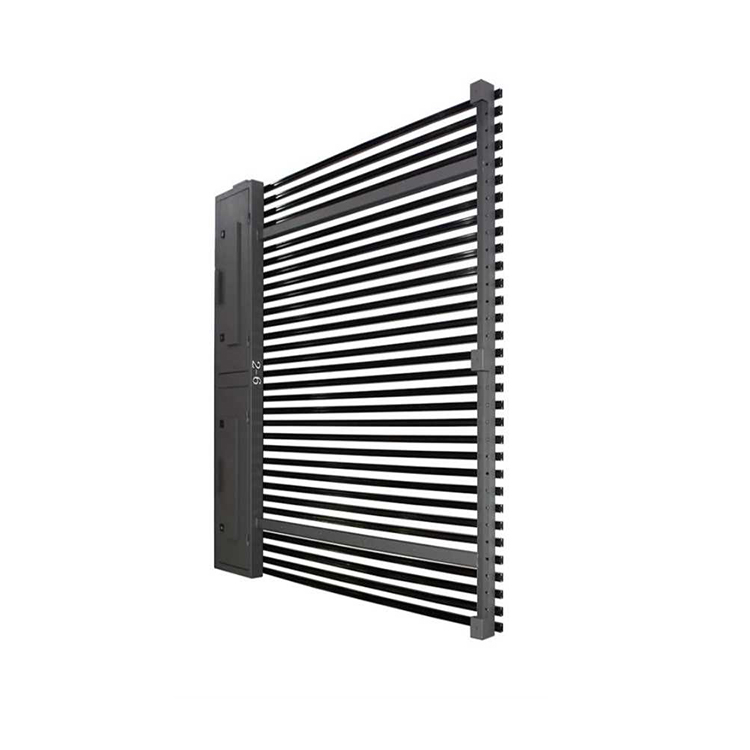

led curtain mesh screen outdoor P31.25 LED transparent grille display

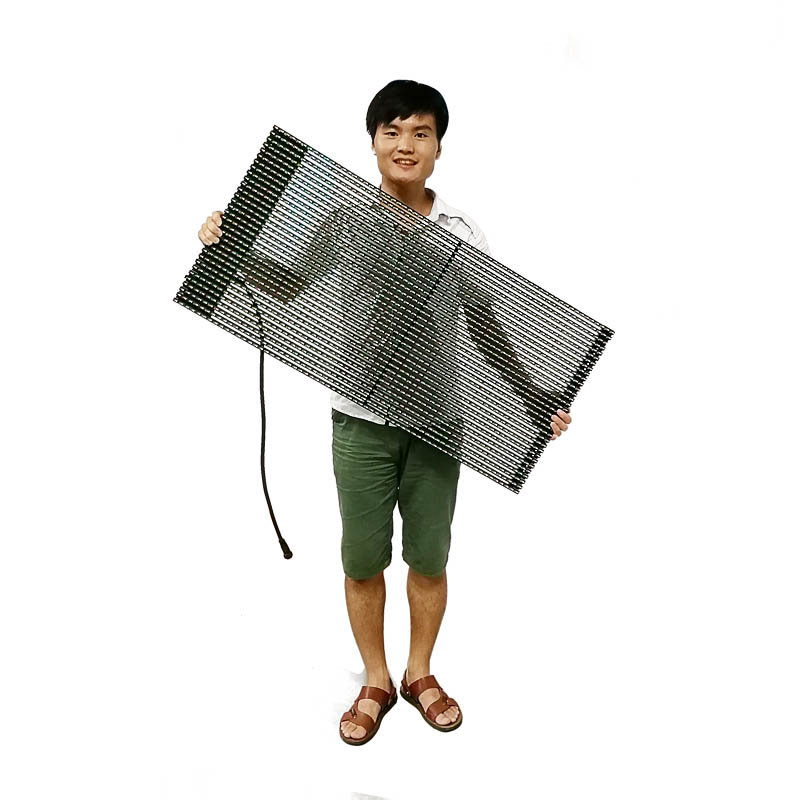

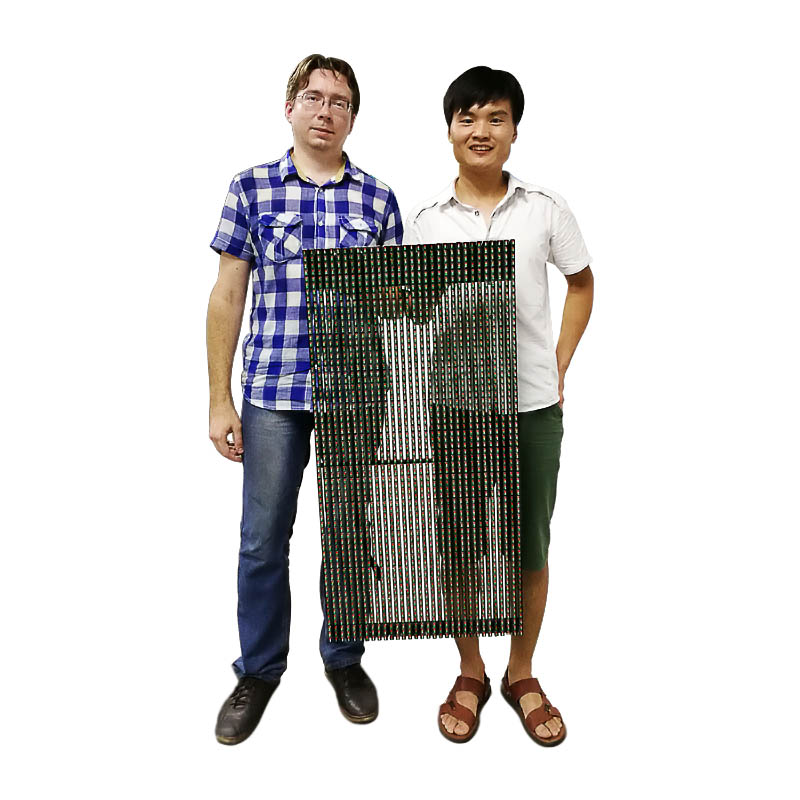

1)Transparent; Light weight and low wind load
2) High performance and low power consumption
3) Highly integrated
4) IP65 high protection rating
5) Easy to install and easy to maintain
6) It is installed without steel structure and does not require air conditioning. It can be installed before or after installation.

Application:

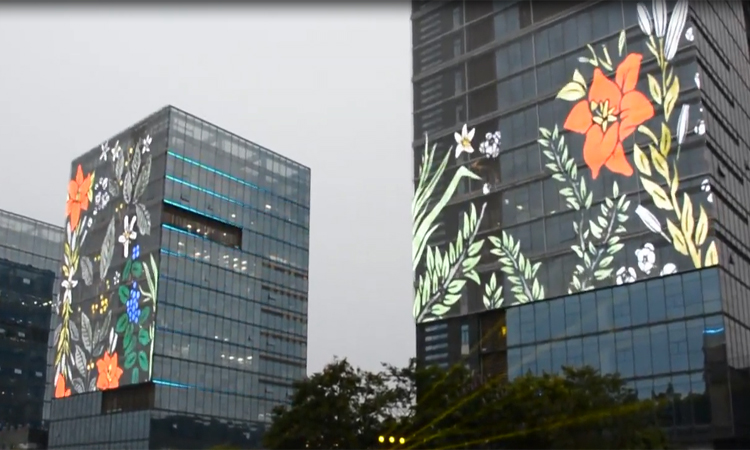

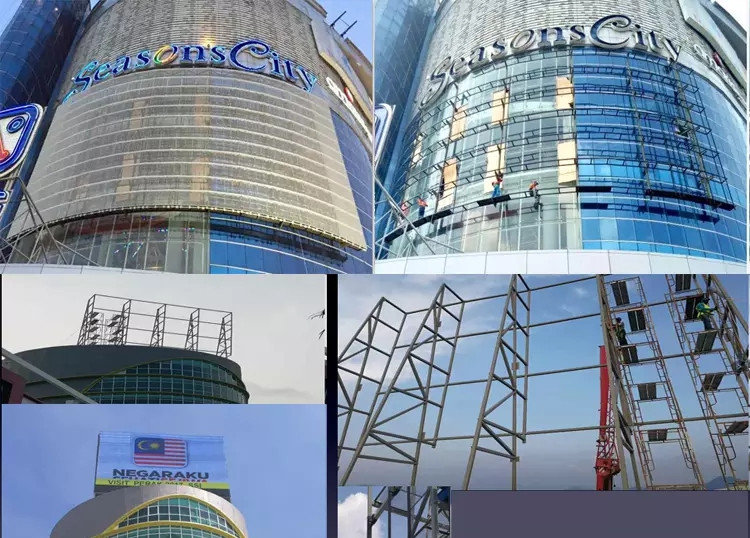

Led media facade decoration on glass wall, space design,in urban landmark buildings, municipal buildings,bridge, or in humanities landscape, airports,tourist attractions, bars, KTV etc.

Model	Galaxy-1515	Galaxy-1531	Galaxy-3131
Pixel Pitch(H/V)	15.625mm/15.625mm	31.25mm/15.625mm	31.25mm/31.25mm
Pixels (RGB)	DIP346/SMD3535	DIP346/SMD3535	DIP346/SMD3535
Brightness(CD/ m2)	>8500	>7000	>6500
Transparency rate(%)	50%	70%	80%
Display size	500x1000mm	500x1000mm	500x1000mm
Viewing Angle (H/V)	120/60(120/120)	120/60(120/120)	120/60(120/120)
Best view distance	8-160	10-200	15-300
Resolution(Dots/m2)	4096	2048	1024
Max. Power (w/m2)	400	400	400
Average Power (w/m2)	100	100	100
Ingress Protection	IP68 (Back/front)	IP68 (Back/front)	IP68 (Back/front)
Refresh rate(HZ)	2380	2380	2380
Weight (kgs/m2)	19	17	15
Thickness (cm)	1.3-5.8	1.3-5.8	1.3-5.8
Thickness of installation(cm)	11.8	11.8	11.8
