P7.8 outdoor curtain mesh screen

Features
Specs
Application
Order

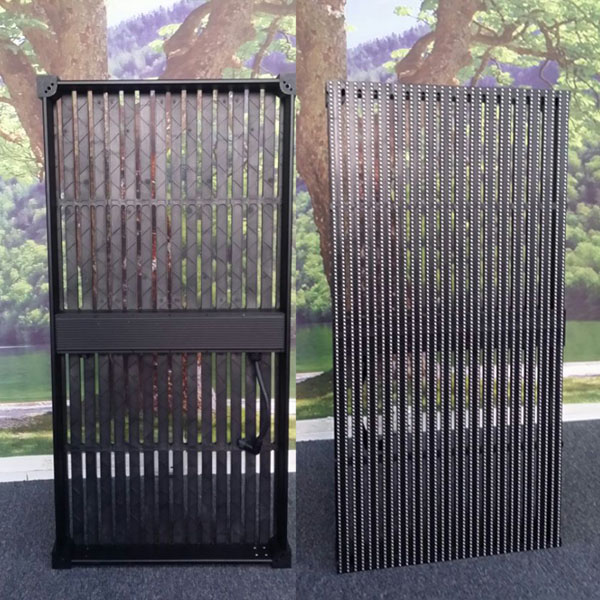

P7.8 Large Outdoor LED Transparent Video Wall Display

Durable and Stable

No structure for small size

Easy Installation & Maintenance

Customized Size for different glass size

High Transparency 87% with 10.4mm pitch

Easy Installation & Maintenance

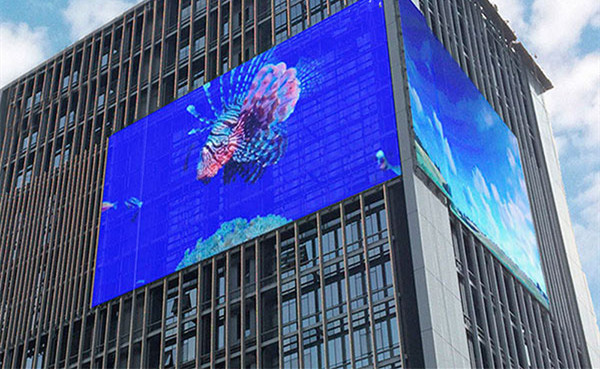

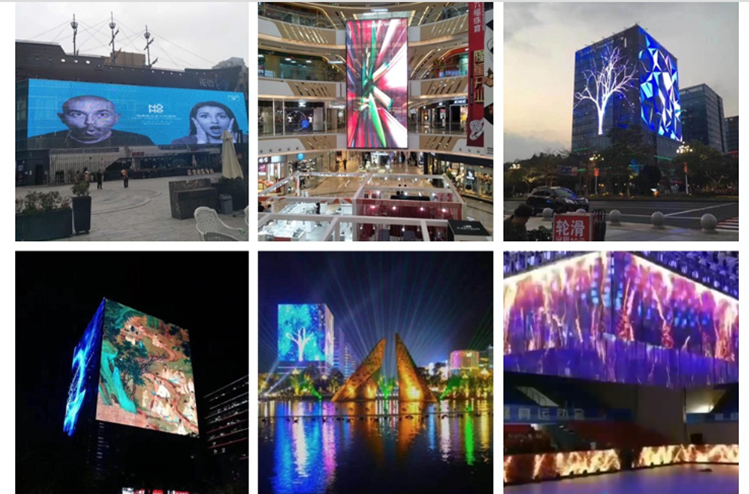

Transparent Glass Curtain Wall LED Display for building glass wall, Auto 4S shop, high-end clothing stores, retail windows, stage rental, etc

P7.8 outdoor curtain mesh screen

Parameter
C Series	C3.9	C7.8	10.4
LED	SMD1921	SMD1921	SMD1921
Resolution(dot/㎡）	32768	16384	9216
Pixel Pitch(WxH)(mm)	3.91X7.82	7.82x7.82	10.42x10.42

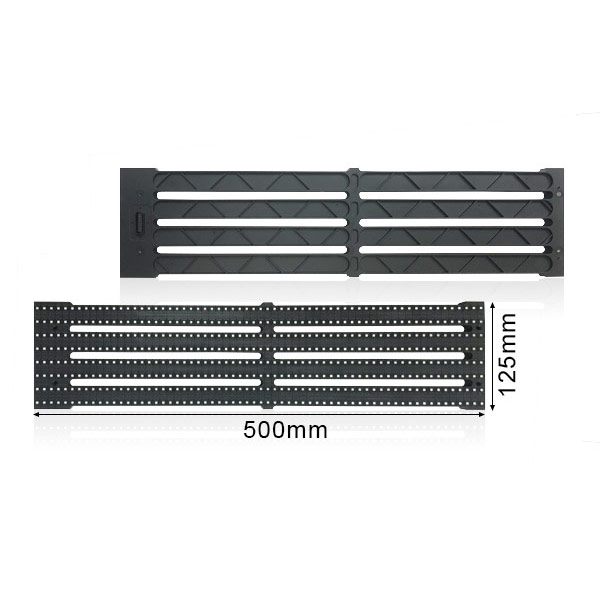

Module size(WxH)(mm)	1000x500	1000x500	1000x500
Module Resolution	256x64	128x64	96x48
Brightness(nits)	5500	5300	5000
Max.Power(W/㎡)	800	780	750
Avg.Power(W/㎡)	240	230	220
Transparency	70%	80%	87%
